Description

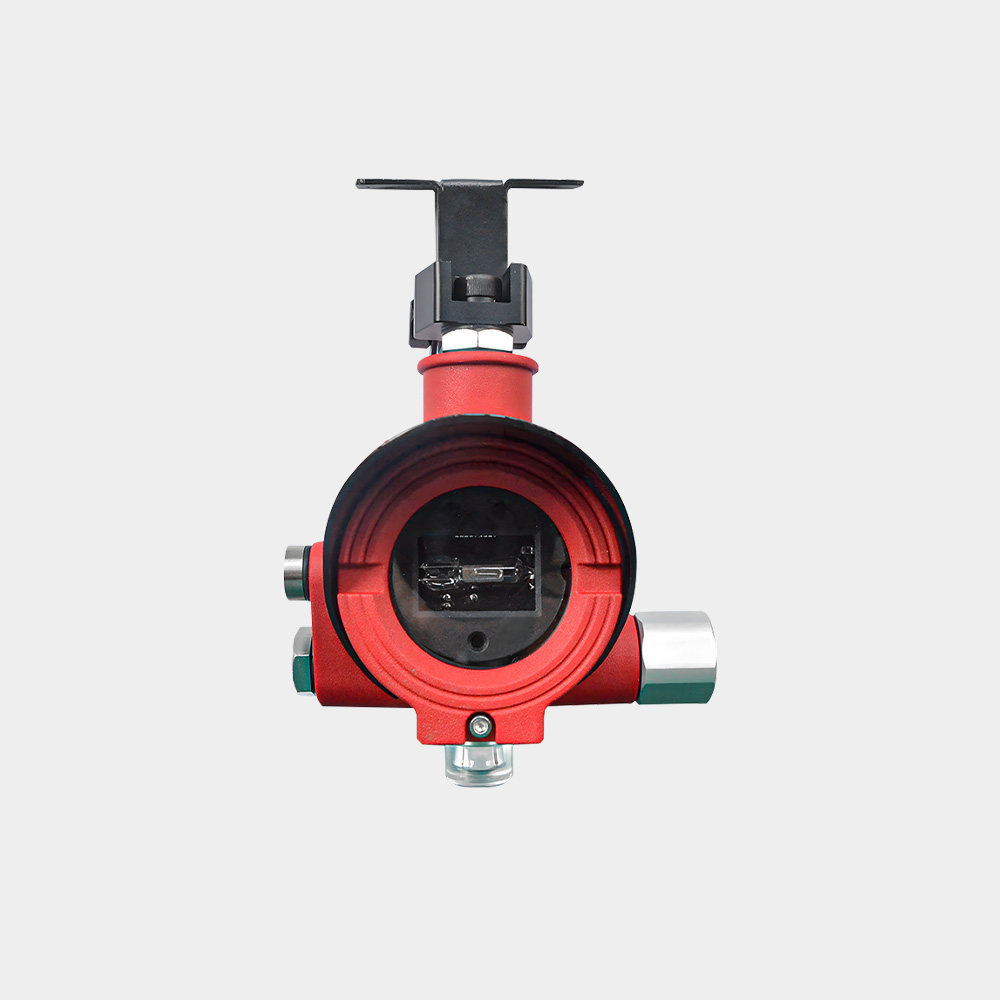

S600-ExUV point type ultraviolet flame detector adopts imported UV ultraviolet sensor with high sensitivity. The sensor can react to ultraviolet radiation when the fire and explosive are ignited. Combined with the comprehensive judgment of flame characteristics and logic when a fire occurs, it has a high immunity to false alarms generated by environmental light sources. The detector is suitable for smokeless liquid, gas, solid fire and other places where deflagration occurs.
The detector is particularly suitable for metals such as sodium, magnesium, etc .; explosives; hydrogen, hydride, ammonia, silane and other fires. Use in an environment where water vapor and dust are concentrated will reduce the sensitivity of the detector.
The detector is not suitable for use in environments with arc welding, ultraviolet light and outdoor.
Functions Features
- Explosion-Proof CertificationSound And Light Alarm
- Responsive
- Certificate Is Complete
- Four To Adjust
- Quality Assurance
Technical Parameters
| Response spectral range | 185-260nm |
| Response time | 6s |
| Viewing angle range | ≤110 ° |
| Detection distance | Class I |
| Ambient temperature | -10 ~ 55 ℃ |
| Environmental humidity | ≤95% RH |
| Pressure range | 86 ~ 106Kpa |
| Working voltage | DC24V |
| Working current | current≤25mA, alarm current≤35mA |
| Executive standard | GB127991-2006 |
| Explosion-proof grade | Ex d ⅡC T6 Gb |
| Protection grade | IP66 |
| Explosion-proof certificate number | CE20.1718 |
| Signal output | Switching relay contact output, RS-485 (built-in DIP switch, can set the address of the detector) |
| Installation method | wall or ceiling |
| Cable outlet thread | 20mmX1.5mm free conversion G1 / 2 optional |
| Dimensions | (190X160X110) mm |
| Shell material: | die-cast aluminum |
| Weight | 1Kg |
| Advantages | dustproof, explosion-proof, corrosion-proof |
| order number | product name | Product features |
| 1 | Point infrared flame detector | One red |
| 2 | Point infrared flame detector | Two reds |
| 3 | Point infrared flame detector | Three reds |
| 4 | Point infrared flame detector | quatre |
| 5 | Point-type ultraviolet flame detector | Single purple |
| 6 | Point infrared/ultraviolet flame detector | Composite (one red and one purple) |
| 7 | Point infrared/ultraviolet flame detector | Composite (two red and one purple) |
| 8 | Point infrared/ultraviolet flame detector | Composite (three reds and one purple) |
