Description

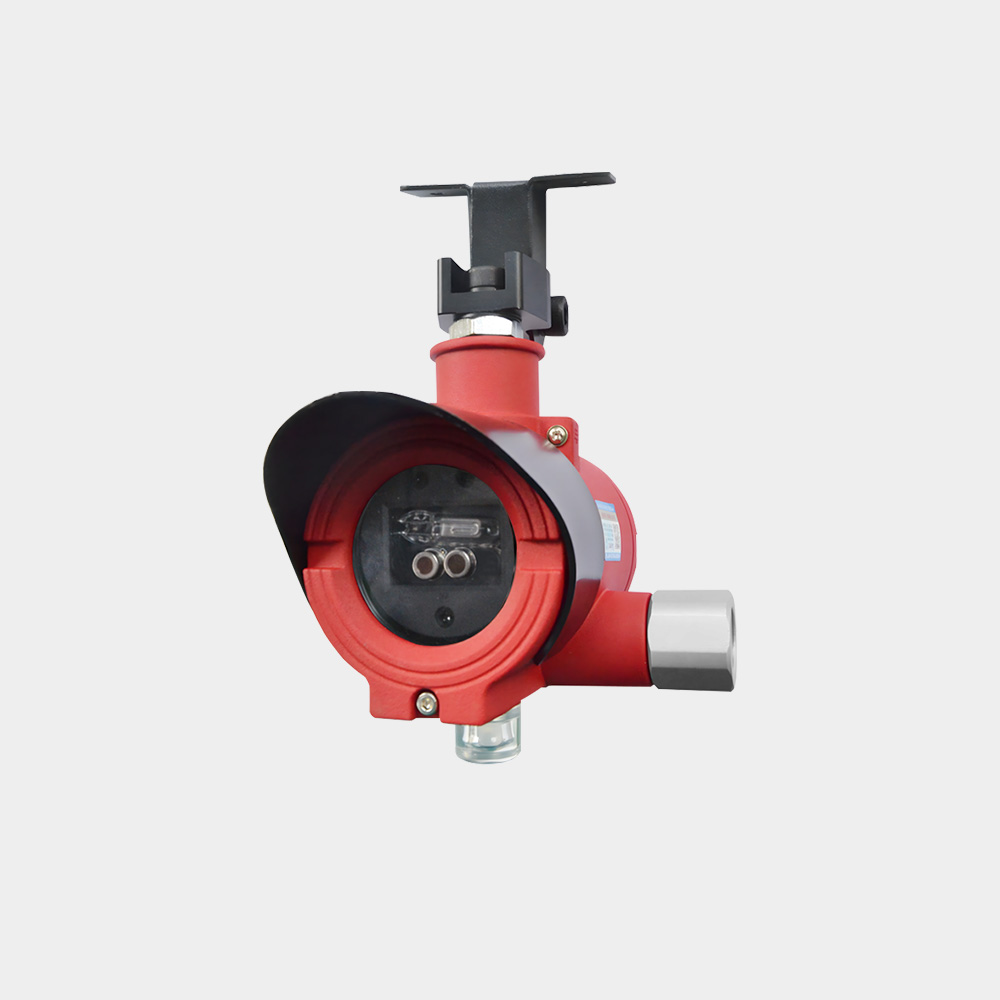

Point-type infrared/ultraviolet flame detectors (hereinafter referred to as “detectors”) are infrared/ultraviolet flame detection devices manufactured by our company. This product utilizes high-performance infrared/ultraviolet photosensitive components and microcontroller technology, combined with precision SMD manufacturing processes. Featuring compact size and easy installation, it delivers superior sensitivity, excellent repeatability, temperature/humidity adaptability, extended service life, and user-friendly operation.
The point-type infrared/ultraviolet flame detector integrates an infrared wavelength sensor, imported UV sensor, and optical filter. The UV sensor detects ultraviolet radiation immediately upon ignition of fires or explosives, while the infrared sensor eliminates interference from ambient light and thermal radiation background. Featuring multiple signal processing algorithms combined with logical synthesis of flame flicker frequency, this detector maximizes false alarm suppression and achieves optimal fire detection performance. Its specialized fire signal processing method and multi-sensor detection technology significantly enhance sensitivity and response time, with automatic sensitivity adjustment according to environmental conditions. Suitable for various high-risk environments including oil refineries, pipelines, chemical plants, coking facilities, oil depots, liquefied gas stations, CNG/LNG storage, wine cellars, spray booths, drilling platforms, urban gas systems, boiler rooms, metallurgical industries, pyrotechnic operations, military equipment, naval vessels, and power plants. The detector provides early warning capabilities for both hydrocarbon-based organic material fires and inorganic fire hazards.
TAG: otywell Flame Detector，IR Flame Detector ，UV Flame Detector，UV & IR Dual Spectrum Flame Detector
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
Functions Features
- Explosion-Proof CertificationSound And Light Alarm
- Responsive
- Certificate Is Complete
- Four To Adjust
- Quality Assurance
TAG: otywell Flame Detector，IR Flame Detector ，UV Flame Detector，UV & IR Dual Spectrum Flame Detector
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
Technical Parameters
| Response spectral range | 4.4μm, 3.8μm, 185-260nm |
| Response time | 6s |
| Viewing angle range | ≤110 ° |
| Detection distance | Class I |
| Ambient temperature | -10 ~ 55 ℃ |
| Environmental humidity | ≤95% RH |
| Pressure range | 86 ~ 106Kpa |
| Working voltage | DC24V |
| Working current | current≤25mA, alarm current≤35mA |
| Executive standard | GB15631-2008, GB12791-2006 |
| Explosion-proof grade | EX d ⅡC T6 Gb |
| Protection grade | IP66 |
| Signal output | Switching relay contact output, RS-485 (built-in DIP switch, can set the address of the detector) |
| Installation method | wall or ceiling |
| Cable outlet thread | 20mmX1.5mm free conversion G1 / 2 optional |
| Dimensions | (190X160X110) mm |
| Shell material | die-cast aluminum |
| Weight | 1Kg |
| Advantages | dustproof, explosion-proof, corrosion-proof |
| order number | product name | Product features |
| 1 | Point infrared flame detector | One red |
| 2 | Point infrared flame detector | Two reds |
| 3 | Point infrared flame detector | Three reds |
| 4 | Point infrared flame detector | quatre |
| 5 | Point-type ultraviolet flame detector | Single purple |
| 6 | Point infrared/ultraviolet flame detector | Composite (one red and one purple) |
| 7 | Point infrared/ultraviolet flame detector | Composite (two red and one purple) |
| 8 | Point infrared/ultraviolet flame detector | Composite (three reds and one purple) |
