Image type Flame detector

The image-type flame detector is equipped with a high-performance embedded SOC processor with artificial intelligence computing acceleration capability. It has strong computing power, low power consumption, high stability, and can adapt to various indoor and outdoor operating environments. It runs the self-developed neural network AI algorithm, and multi-dimensional composite analysis logic to adapt to complex working environments.

The detector body carries the algorithm for real-time analysis, which can work independently without relying on the monitoring part, and can be deployed in batches to achieve large-scale fire detection and alarm. Real-time high-definition video hard coding supports H.264/H.265 encoding format, can play high-definition video in real time, and capture pictures immediately when the alarm is triggered, which is convenient for visual verification and confirmation. It supports real-time synchronous sound and light alarms at the front and back ends, and the detection end site and monitoring center respond in linkage, also supports seamless connection with fire alarm control systems and security monitoring systems. Optional switch control output, contact capacity 30V/2A; optional 4-20mA industrial field bus interface and HART protocol carrier communication interface; optional industrial-grade RS485 interface; optional electric heating temperature control function to adapt to extremely cold operating environments.

Functions Features

• 2.0Tops computing Power (2 trillion/SEC)
• 8.7 million parameter large model
• AI algorithm is deployed on the device side
• Fast response high recognition rate low false alarm rate
• Support real-time synchronous sound and light alarm
• Low power consumption and high stability
• Suitable for indoor and outdoor operating environments
• Optional switch control output

Technical Parameters



Detection principle	AI image recognition (2.0 Tops computing power)
Detection distance	80 meters (12mm lens)
Response time	6 – 20 seconds

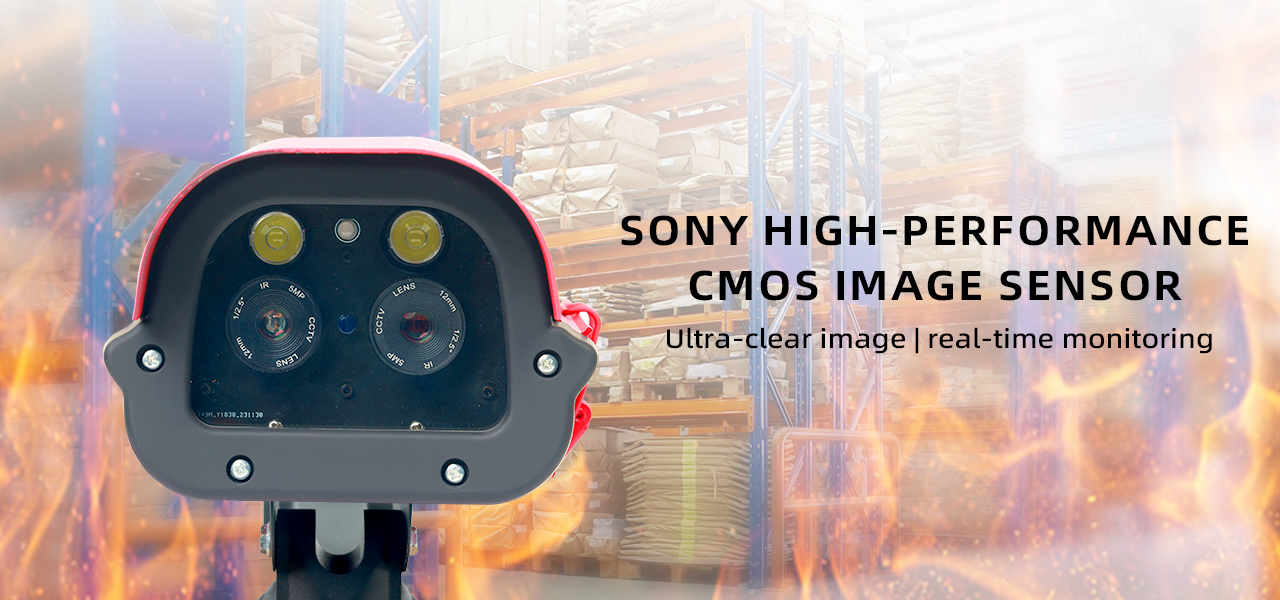

Dual cameras	One visible light camera and one infrared camera
Output signal	Switching value, 4 – 20mA, HART, RS485, CAN
Video transmission	Gigabit Ethernet
Field of view	22° (horizontal) × 17° (vertical)
Rated voltage	Detection part: DC24V; monitoring part: AC220V
Working current	≤25mA, alarm current ≤50mA
Rated power	≤20W
Signal output	2 channels of passive nodes/RS485/4 – 20mA/HART
Working temperature	-30°C to +60°C
Relative humidity	≤95%RH, no condensation
Installation method	Wall-mounted, suspended
Protection level	IP50
Video standard	H.264/H.265
