Description

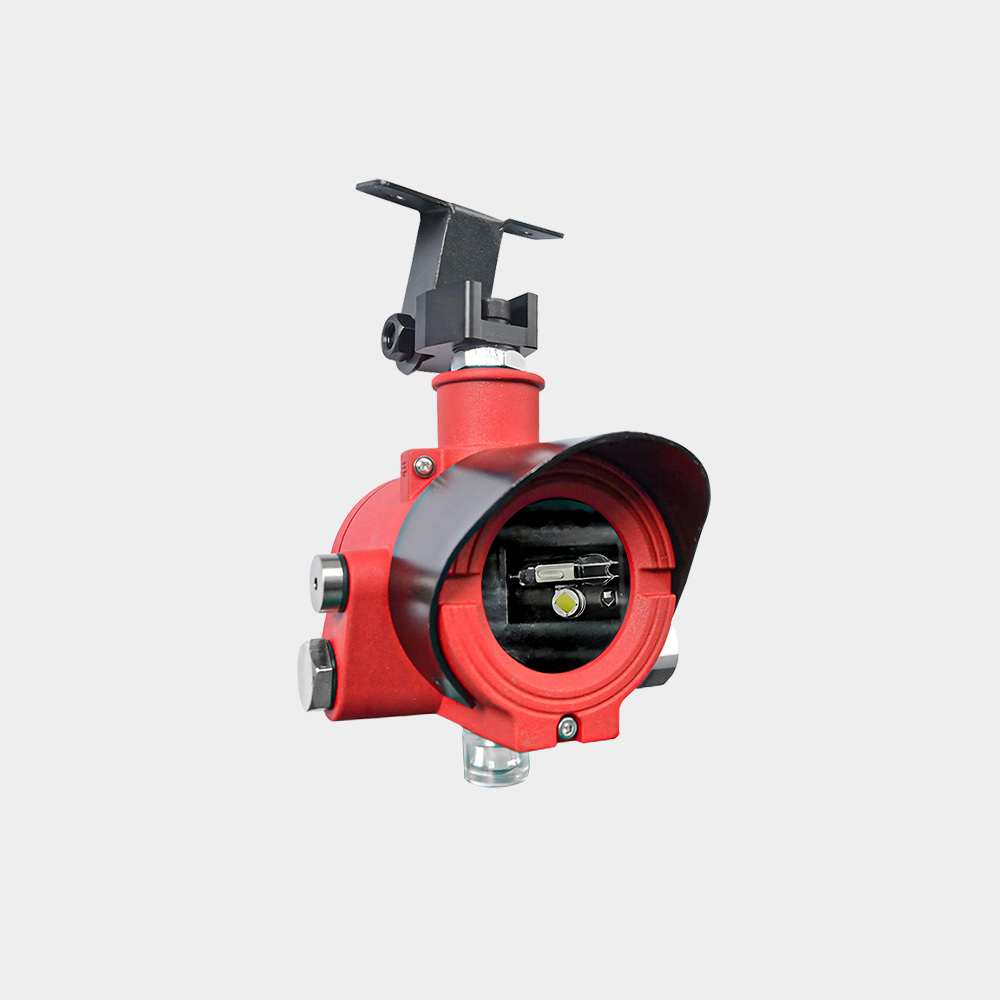

S600-ExIR1-UV point type infrared / ultraviolet flame detector includes an infrared wavelength sensor and a highly sensitive imported UV ultraviolet sensor and optical filter. The ultraviolet sensor can respond to ultraviolet radiation at the moment of fire and explosive ignition. The infrared sensor has the highest sensitivity to the CO2 emission spectrum (4.4μm) produced by the combustion of hydrocarbons. The detector is sensitive to ultraviolet rays generated in the event of a fire Composite judgment with infrared signal and multi-signal processing combined with logical comprehensive judgment of flame flicker frequency to minimize false alarm and the best fire detection performance required. The flame detector has an early warning function for the fire of organic materials such as hydrocarbons and the fire of inorganic materials.
Functions Features
- Explosion-Proof CertificationSound And Light Alarm
- Responsive
- Certificate Is Complete
- Four To Adjust
- Quality Assurance
Technical Parameters
| Response spectral range | 4.4μm, 185-260nm |
| Response time | 6s |
| Viewing angle range | ≤110 ° |
| Detection distance | Class I |
| Ambient temperature | -10 ~ 55 ℃ |
| Environmental humidity | ≤95% RH |
| Pressure range | 86 ~ 106Kpa |
| Working voltage | DC24V |
| Working current | current≤25mA, alarm current≤35mA |
| Executive standard | GB15631-2008, GB12791-2006 |
| Explosion-proof grade | Ex d ⅡC T6 Gb |
| Protection grade | IP66 |
| Signal output | Switching relay contact output, RS-485 (built-in DIP switch, can set the address of the detector) |
| Installation method | wall or ceiling |
| Cable outlet thread | 20mmX1.5mm free conversion G1 / 2 optional |
| Dimensions | (190X160X110) mm |
| Shell material: | die-cast aluminum |
| Weight | 1Kg |
| Advantages | dustproof, explosion-proof, corrosion-proof |
| order number | product name | Product features |
| 1 | Point infrared flame detector | One red |
| 2 | Point infrared flame detector | Two reds |
| 3 | Point infrared flame detector | Three reds |
| 4 | Point infrared flame detector | quatre |
| 5 | Point-type ultraviolet flame detector | Single purple |
| 6 | Point infrared/ultraviolet flame detector | Composite (one red and one purple) |
| 7 | Point infrared/ultraviolet flame detector | Composite (two red and one purple) |
| 8 | Point infrared/ultraviolet flame detector | Composite (three reds and one purple) |
