Description

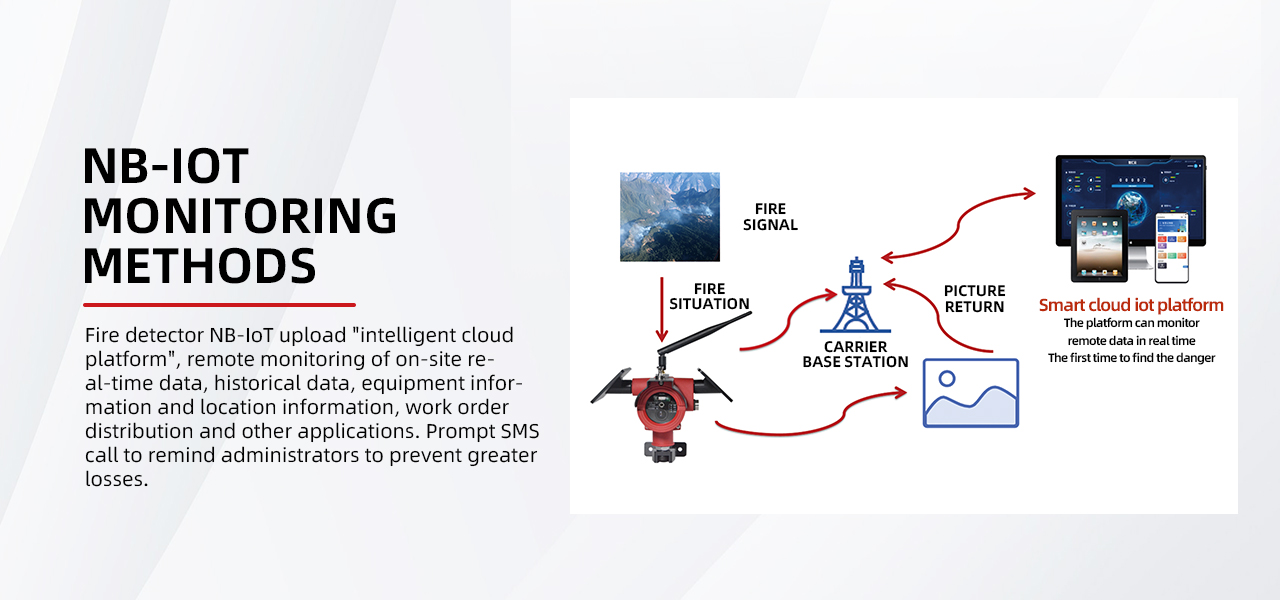

The flame detector uses IoT infrared sensors and a smart cloud IoT management platform to address the traditional problems of “difficult detection, late detection, and difficult networking” in fire monitoring. It enables early detection, early warning, and early response to forest fires, thereby avoiding greater losses. The detector also has an anti-tampering feature that triggers an alarm if the detector is moved abnormally.
Functions Features
- SOLAR POWER SUPPLY
- Solar energy reserve + military lithium battery backup
- Very low power consumption, no power supply required!
- BUILT-IN BATTERY 10000MA
Technical Parameters
| Detection principle | red/UV light |
| Wavelength range | infrared 4.4μm ultraviolet 185 ~ 260nmUV |
| Battery specification | 3.6V/10000mAh |
| Solar energy | 2X1W |
| Camera | 30W pixels |
| Spirit acuity | Level 1 |
| Response time | < 30s |
| Preheating time | 60s |
| Flame detection delay | 3S |
| Ambient temperature | -10℃ ~ 55℃; The maximum surface temperature of the shell shall not exceed 80℃ |
| Relative humidity | < 93%RH |
| Explosion-proof mode | flameproof type |
| Explosion-proof grade | Ex dⅡC T6Gb |
| Protection grade | IP67 |
| Indicator | green indicates early warning, red indicates alarm, blue data upload, yellow fault |
| Weight | ≤1200g |
| Dimensions | 235mm x170mm x125mm (without antenna) |
| Pressure limit | 86KPa ~ 106KPa |
| Use place | Use in dangerous places with explosive combustible gas IIA~IIC class and temperature group of T1~T6 |
TAG: otywell Flame Detector，Solar-powered Flame Detector，IR Flame Detector ，UV Flame Detector，UV & IR Dual Spectrum Flame Detector
