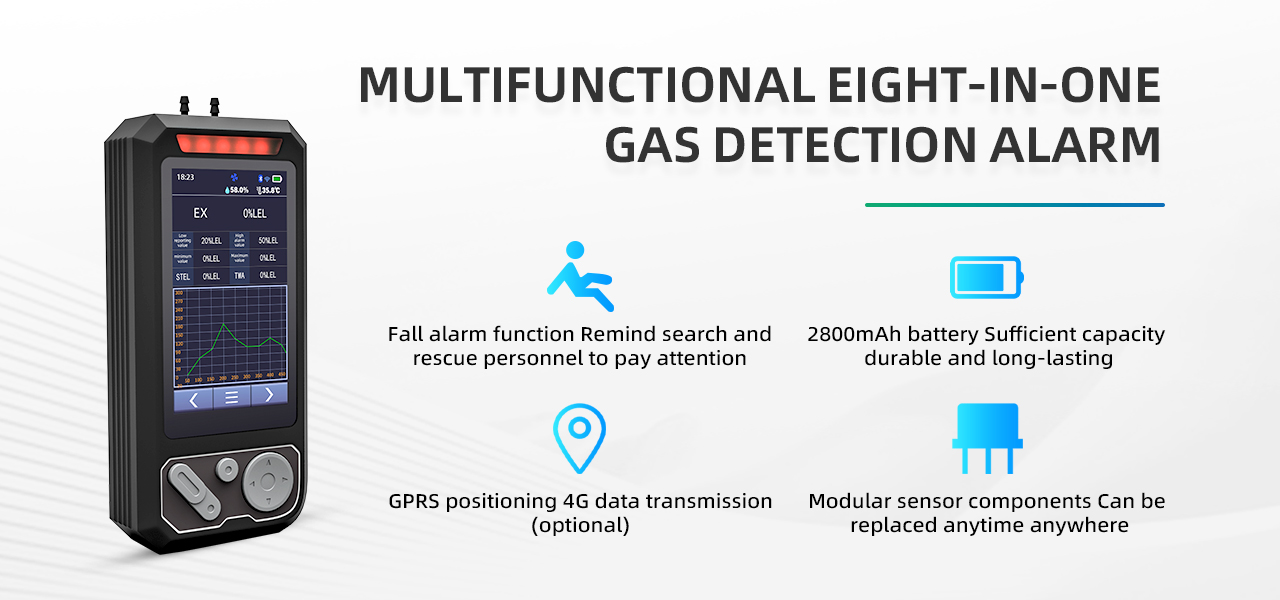

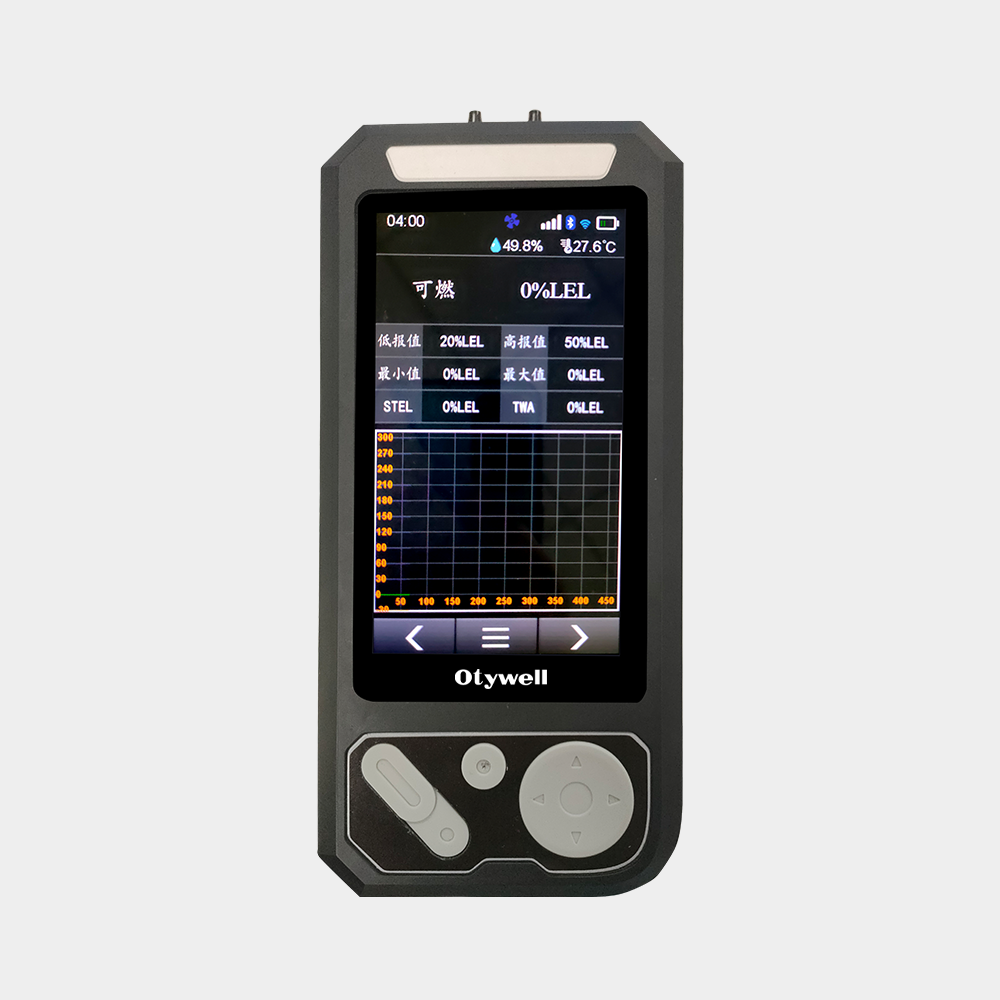

OT139 Multifunctional 8 in 1 Gas Detection Alarm

Description

The OT139 portable gas detector adopts dot matrix display technology and switches between Chinese and English interfaces, which can simultaneously detect 1-8 types of flammable and toxic harmful gases. It adopts a group type sensor element, which can be replaced with different sensor types anytime and anywhere. The detection results are displayed on the screen simultaneously.

The OT139 multi gas detector is equipped with a English LCD display interface and audio and visual alarm prompts, which can adapt to concentration monitoring in more complex environments. This product is suitable for various places such as chemical, pharmaceutical, municipal, water treatment, telecommunications, archaeological laboratories, cold storage, brewing, etc.

Functions Features

Technical Parameters

Detection mode	Pump suction type
Sensors detection principle	Electrochemical/catalytic/thermal conductivity/infrared/PID
Accuracy	±3% FS
Battery	Lithium battery DC7.4V 2800mA
Standby time	More than 8 hours
Alarm	Three-level alarm of sound, light and vibration
Storage	300,000 storage records
Protection level	IP68
Operating temperature	(-20℃~55)℃
Operating humidity	≤93% RH
Instrument weight	Approximately 600g
Display	Real-time concentration, alarm, time, temperature, humidity, storage, communication, printing, power, Bluetooth, Internet of Things, voltage status

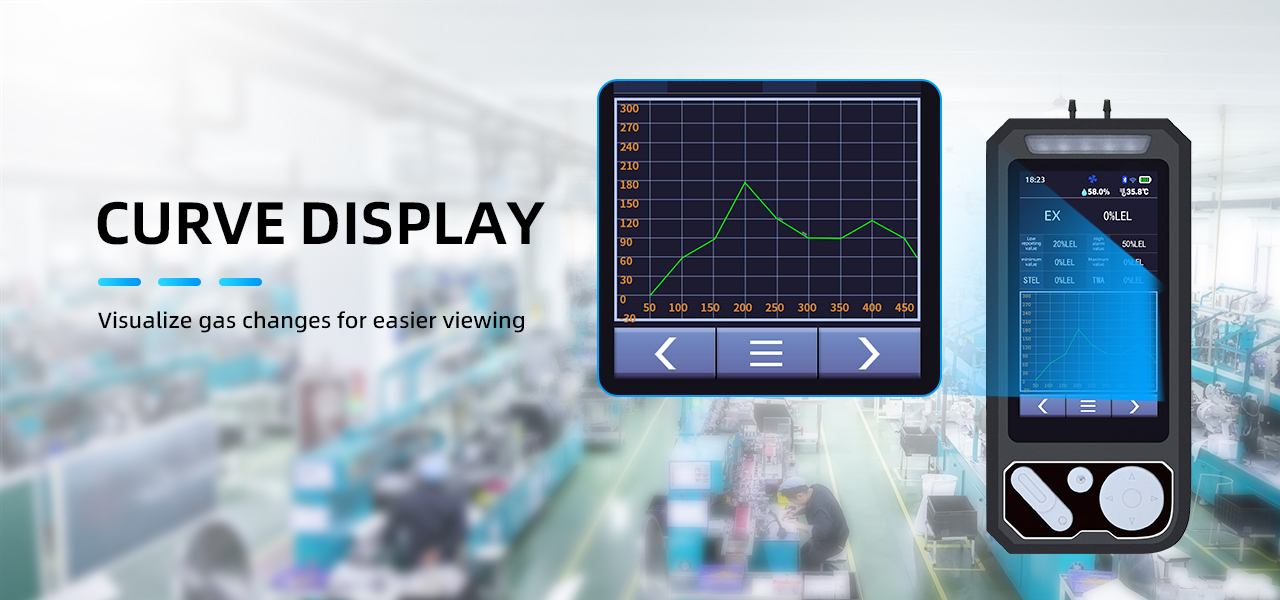

Interface display	Numerical and curve display can be switched with one click. Default display interface, single or multi-in-one can be switched arbitrarily. Display maximum/minimum value.
Unit switching	Support free unit switching. Conventional gases are automatically switched. For special gases, molecular weight can be switched manually by inputting (ppm, mg/m3, %LEL, %VOL, ppb, ppm.mg/L, umol/mol, ml/L).
Storage log	Store alarm records, fault records, alarm concentration and time. Can record calibration logs, maintenance logs, fault solutions, sensor life expiration reminders, and next concentration calibration time reminders.
Explosion-proof mark	Ex ia IIC T4 Ga
Explosion-proof certificate number	CLEx24.1020
Protection level	IP65

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
