Description

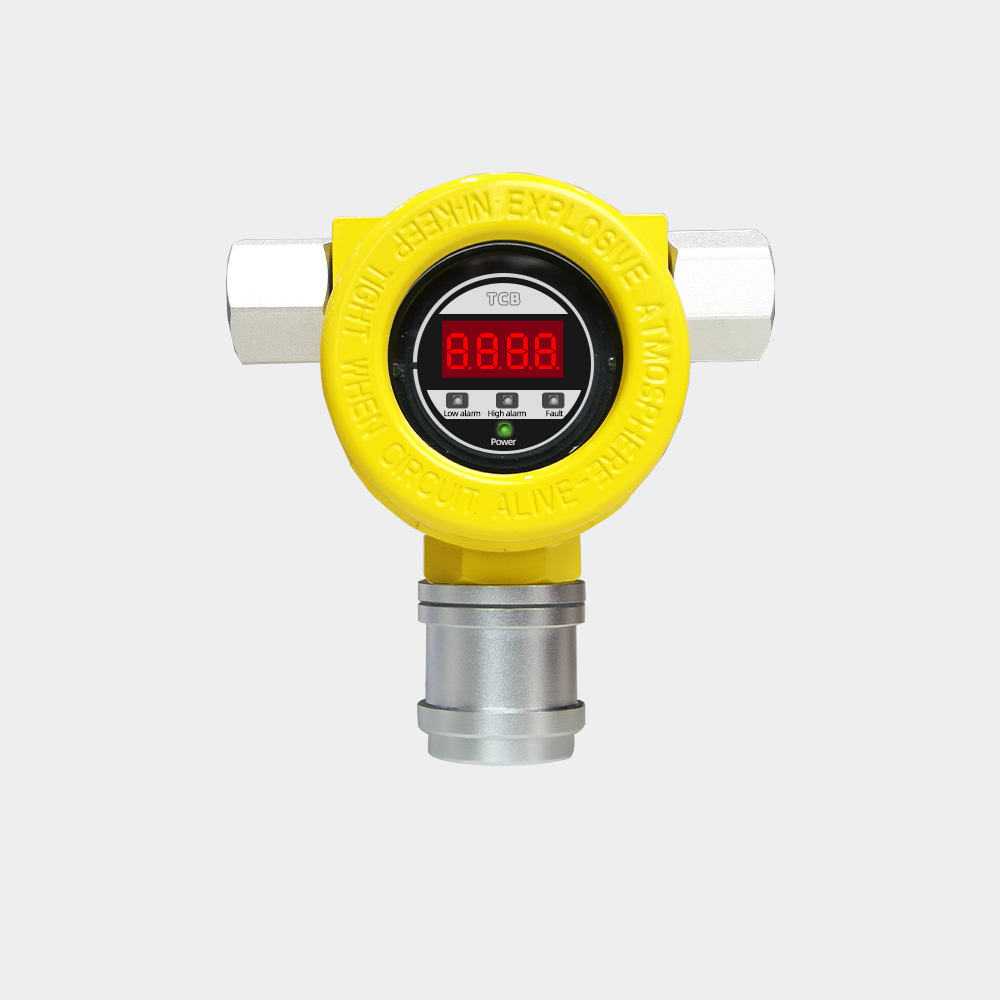

GT-TCB4 industrial and commercial point-type combustible gas detector is a new type of gas leak detection instrument produced by our company. Its outstanding feature is that it uses high-performance imported catalytic combustion, electrochemical, infrared dual-beam gas sensors, combined with sophisticated SMD technology, and has good repeatability and resistance to moisture and temperature interference, long service life, and easy operation. It is suitable for gas leakage concentration detection in various industrial environments.
GT-TCB4 industrial and commercial point-type combustible gas detector can convert the leakage gas concentration signal in the air into an electrical signal output for remote transmission, and the monitoring instrument or controller host can view the detection results away from the site.
Technical Parameters
- Detection gas:flammable, oxygen, toxic gas, VOC (see attached table)
- Detection method:natural diffusion
- Display method:LED digital display
- Working power supply:DC24V/DC36V (two buses)
- Response time:flammable <30s; toxic <60s
- Environmental temperature:(-40~70)℃ (flammable); (-20~40)℃ (toxic)
- Relative humidity:≤93%RH
- Environmental pressure:(86~106)KPa
- Explosion-proof mark:Ex d IIC T6 Gb; Ex tD A21 IP66 T80℃
- Explosion-proof certificate number:CE21.1021
- Protection level:IP66
- Measurement number:2018C239-41
- Connecting cable:RVVP 3×1.5mm2; RVVP 4×1.5mm2; RVVP 2×2.5mm2
- Transmission distance:≤1000m
- Product size:(131X150X109)mm
TAG: otywell gas detector ，Fixed gas detector ，Combustible gas detector ，h2S Gas detector，CO portable Gas detector
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
Note: Not all gases and range are listed, if you need more information, please contact us.
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
Note: Not all gases and range are listed, if you need more information, please contact us.
