Description

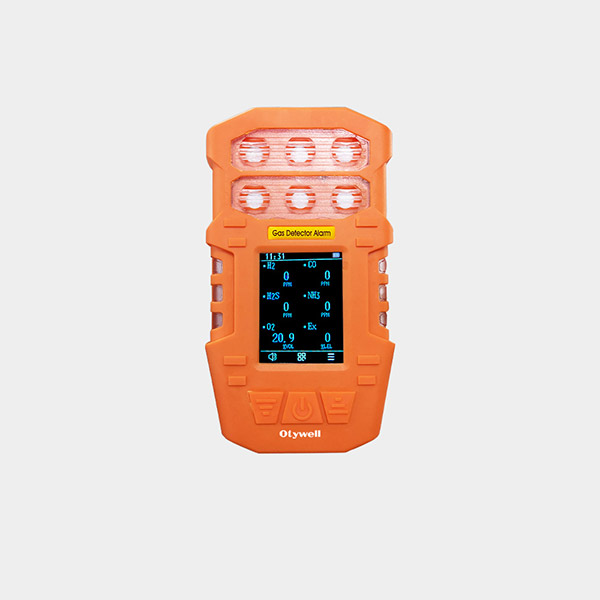

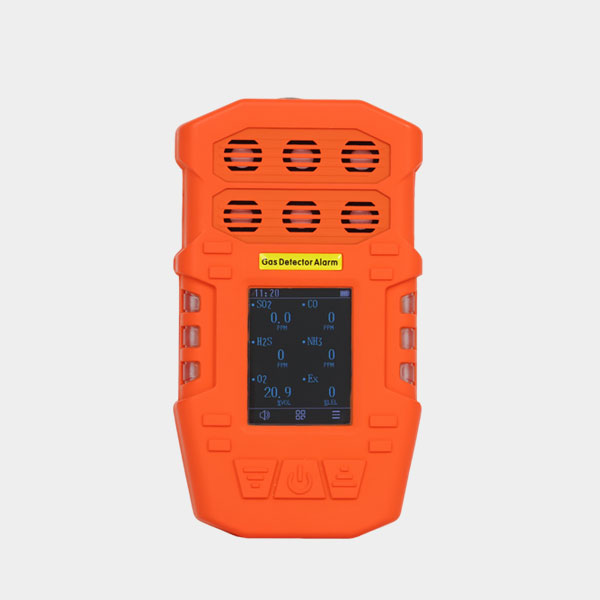

The OT137 multi-gas alarm instrument adopts color liquid crystal display technology, and can detect 1 to 6 kinds of gases simultaneously. Different gas sensors can be configured for detection. The S318 multi-gas alarm instrument is equipped with audio, sound and light, and vibration alarm prompts, and the real-time concentration display can adapt to concentration detection in a more complex environment. This product is suitable for a variety of industrial manufacturing places such as chemical and pharmaceutical, municipal, water treatment, telecommunications, archaeology, laboratories, cold storage, brewing, steel, gas, etc.
The OT137 multi-gas detector adopts a large-capacity rechargeable lithium-ion battery, and this machine can simultaneously and real-time display the concentrations of up to 6 gas types, which is an essential detection tool for work safety supervision and inspection.
Functions Features
- Large screen color Chinese menu operation
- High resolution LCD display, curve display
- Rapid detection of gas leakage points
- Adjustable range, carbon film self-suction
- Low voltage prompt and automatic shutdown in case of low voltage
- Sensor fault detection, self-test function
- Fast preheating and quick response time
- Sound alarm signal, temperature display function
- Convenient zero adjustment, convenient and quick
- Alarm record query function
Technical Parameters
- Suitable gases: combustible/gas toxic/harmful/oxygen, etc
- Detection principle: catalytic combustion type, electrochemical type, infrared type, laser, semiconductor type and so on
- Detection mode: natural diffusion / external pump suction at will (external pump is optional)
- Measurement range: (0–100)% LEL (combustible gases); (0–100) µmol/mol (toxic gases), etc. (depending on gas type)
- Accuracy class: ±3% FS (combustible/oxygen); ±5% FS (toxic)
- Low limit alarm set value: 20%LEL (flammable)
- Upper limit alarm setting: 50%LEL (flammable)
- Alarm mode: LED, sound, vibration indication alarm, fault and under voltage
- Display mode: LCD color liquid crystal display
- Response time: less than 30s
- Environmental temperature: -25℃ ~ +55℃
- Relative humidity:(20~93)%
- Supply voltage: DC 3.7 V
- Battery capacity: OT137:1800 mAh+1000 mAh lithium ion rechargeable battery
- Charging time: <5 h
- Standby time: ≥ 8 h
- Pressure limit: 86kPa~106kPa

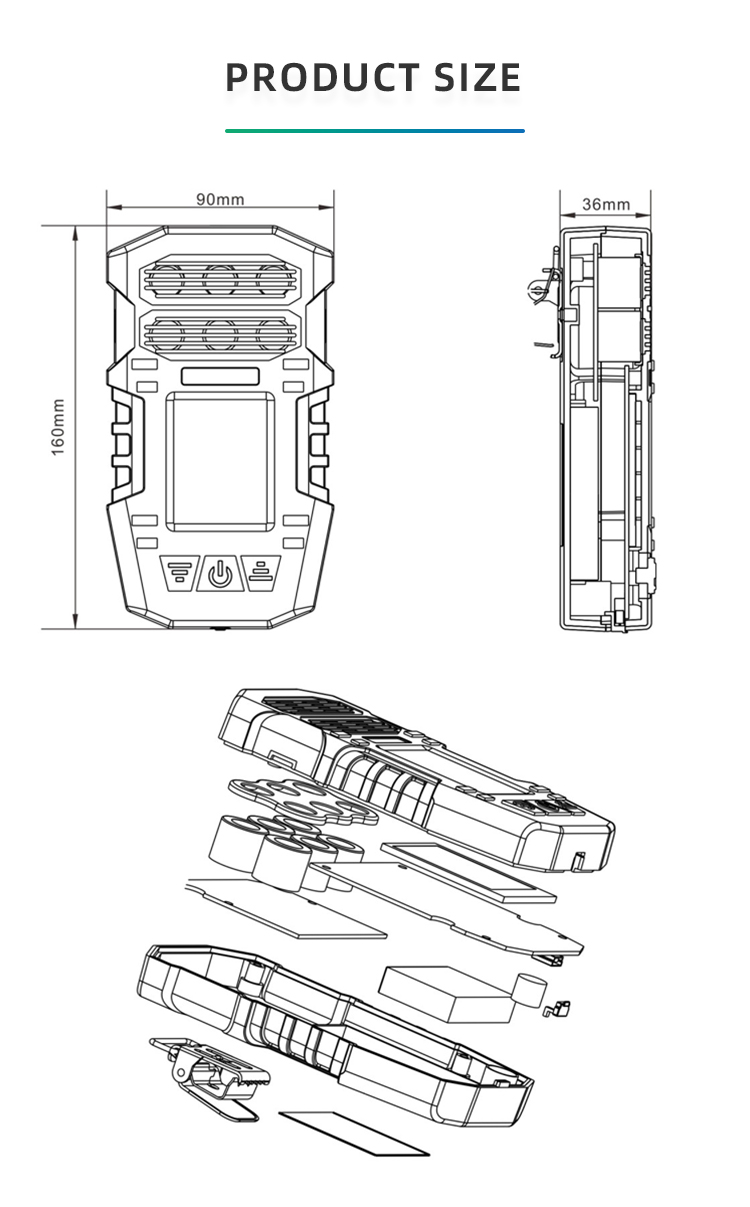

- Product size: L 157 mm × W 88 mm × H 36 mm;
- Product weight: about 500 g; OT600: about 450 g
- Explosion-proof certificate number: OT137:CNEx22.1795X;OT600:CNEx23.1392X
- Explosion-proof mark: Ex ib ⅡC T4 Gb/Ex ibD 21 T130℃;
- Protection level: IP66or above
TAG: otywell gas detector h2s gas detector ，OT137 multi gas detector ， 6 Gas detector，pump Gas detector，O2 ，CO Gas detector
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
Note: Not all gases and range are listed, if you need more information, please contact us.
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
Note: Not all gases and range are listed, if you need more information, please contact us.
