Description

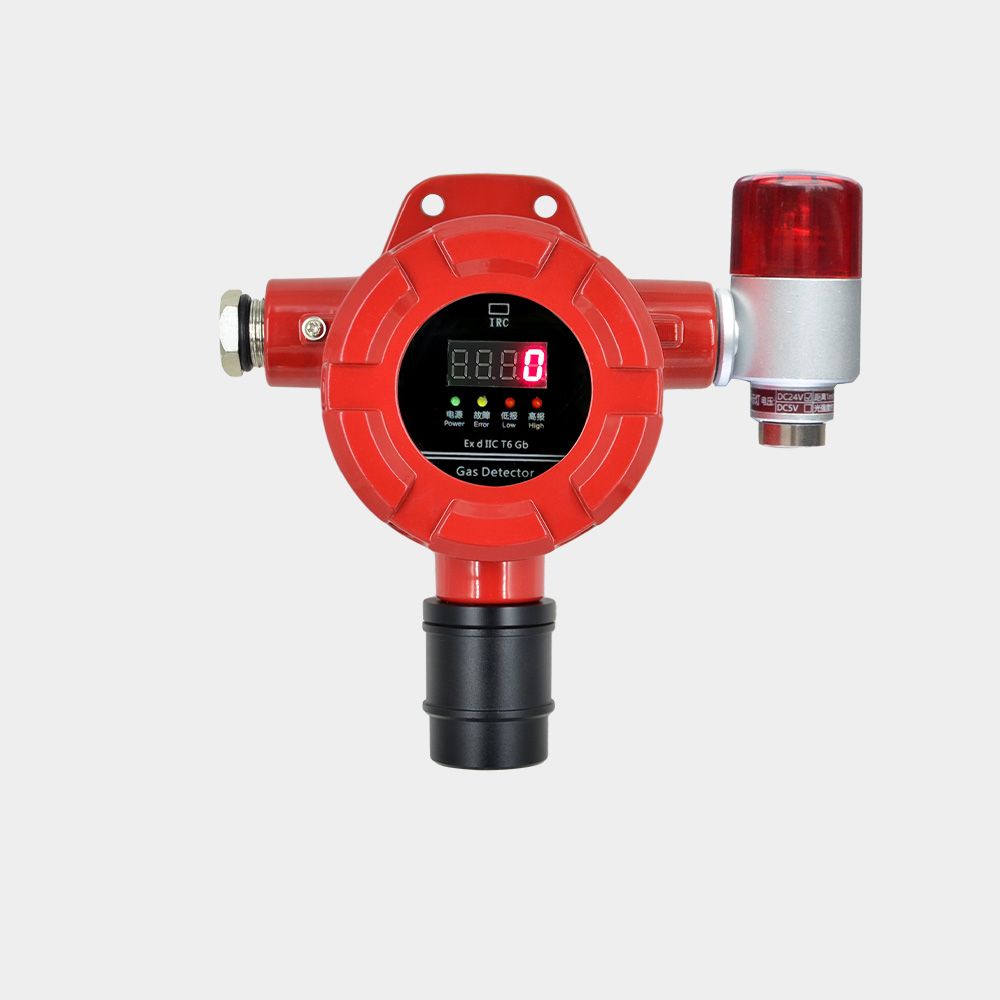

The TCB6 series fixed gas detection alarm is a cutting-edge instrument developed by our company. Featuring high-performance gas sensors and microcontroller technology, it combines advanced SMD manufacturing techniques to deliver exceptional repeatability, precise temperature and humidity control, extended service life, and user-friendly operation.
This product is designed for gas concentration and leakage detection. The detector converts air gas concentration signals into digital displays, supporting three output methods: 4-20 mA current signal, RS485 four-wire bus, or M-BUS two-wire bus. It features long transmission distance and excellent interference resistance.
The detector is designed for gas safety monitoring and alarm control in environments containing flammable gases, including gas pipelines, municipal utility tunnels, research institutions, hospitals, and schools. It is suitable for hazardous areas with explosive flammable gases (Class II A to II C) and temperature groups from T1 to T6.
Technical Parameters
- Suitable for gas: combustible/toxic/harmful gas/oxygen, etc
- Test principles: catalytic combustion type, electrochemical type, infrared type, laser, semiconductor type, etc
- Detection method: free diffusion
- Measurement range: (0～100)%LEL (flammable); (0～100)µmol/mol (toxic), etc. (depending on gas type)
- Accuracy class: ±3%FS (combustible/oxygen); ±5%FS (toxic)
- Lower limit alarm set: 20%LEL (flammable)
- Upper limit alarm set: 50%LEL (flammable)
- Response time: ≤30s
- Repeatability: ≤2%
- Recovery time: ≤30s
- Ambient temperature: -40℃ to +70℃ (combustible); -25℃ to +55℃ (toxic)
- Relative humidity: (20-93)%
- Operating voltage: DC24V (1±15%)
- Power consumption: ≤3 W
- Display mode: Digital display/No display
- Debugging method: Remote control (display function)
- Output signals: 3-wire (4-20) mA, RS485, or M-BUS (2-wire bus)
- Cable types: three-wire RVVP≥3×5mm2; four-wire bus RVVP≥4×1.5mm2; two-wire system RVVP≥2×1.5mm2
- Transmission distance: ≤1000 m
- Pressure limit: 86 kPa to 106 kPa
- Product weight: ≤1 kg
- Explosion-proof certificate number: CE21.0719X
- Explosion-proof rating: Ex db ⅡC T6 Gb / Ex tb ⅢC T80℃ Db
- Protection rating: IP66
TAG: otywell gas detector ，Fixed gas detector ，Combustible gas detector ，h2S Gas detector，CO portable Gas detector
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
Note: Not all gases and range are listed, if you need more information, please contact us.
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
Note: Not all gases and range are listed, if you need more information, please contact us.
