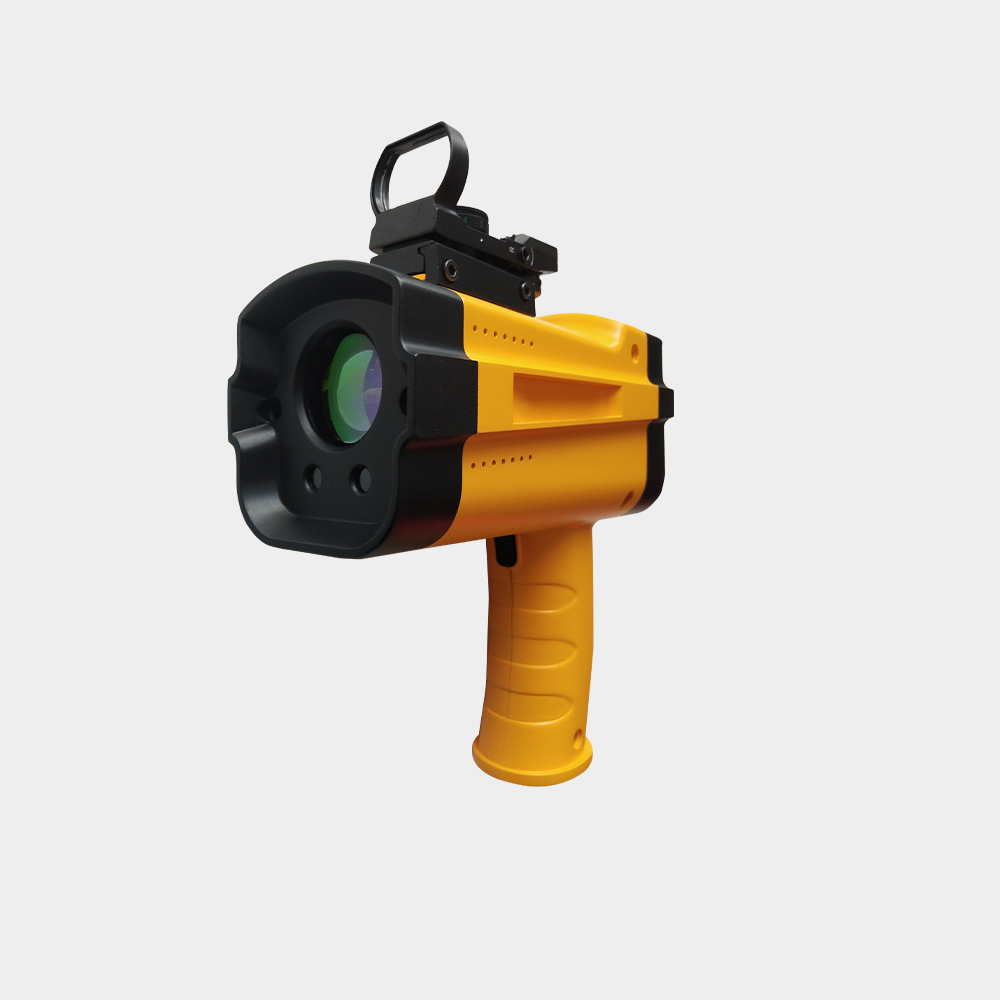

G6000A Laser Methane Remote Detector

Description

The G6000A portable laser gas telemeter consists of an optical-mechanical system, a signal processing system, a display and alarm system, and a shell assembly. It is mainly used to measure the concentration of methane or methane-containing gas (natural gas, gas or similar gases) at a long distance, and can be widely used for rapid positioning and detection of gas pipelines.
The telemeter emits a beam of infrared laser to the detection point, which can quickly measure the concentration of the air mass between the detection point and the telemeter. For the convenience of observation, the telemeter also emits a beam of visible red laser to the detection point at the same time. This telemeter can detect the methane concentration value of the location in real time and accurately, and display and store it. When it exceeds the alarm value, it will sound and light alarm so that personnel can make subsequent disposal.

Functions Features

◆ Miniaturized design, easy to carry, and lifespan of up to ten years.
◆ Millisecond-level rapid response greatly shortens inspection time and improves work efficiency.
◆ PPM-level high sensitivity, gas leakage caused by early loosening of screws can also be detected in time.
◆ Non-contact detection, especially suitable for areas that are difficult for personnel to approach or high above the ground.
◆ Can be detected through glass, which provides better protection for the personal safety of inspection personnel.
◆ Fingerprint characteristics, unique response to the measured gas, not interfered by other gases.
◆ No poisoning or drift, greatly increasing the service life of the product.

TAG: otywell Laser Methane Remote Detector，TDLAS Laser Methane Detecto，Non-contact Methane Leak Detector

E-mail:inquiry@otywell-safety.com

Mobile/WhatsAPP:+8616692113216

Technical Parameters

• Detection range: Multiple ranges available (0～5000) ppm.m，(0～10000) ppm.m (0～50000) ppm.m，(0～100) %LEL
• Remote sensing distance: (0～100) m, (0～300) m
• Minimum detection limit: 1ppm.m
• Accuracy: ±5% (relative true value)
• Response time: 0.1s
• Standby time: not less than 8h
• Power supply: rechargeable lithium battery
• Display: 2.4-inch LCD
• Alarm display: The screen changes with the concentration value, and the curve is displayed
• Alarm volume: ≥60dB (1 meter)
• Product size: 180mm×180 mm×80mm
• Product net weight: 800g
• Protection level: IP65
• Explosion-proof level: Ex ib IIB T3 Gb
• Explosion-proof certificate number: CE19.2396
• Working environment: Temperature: (-10～55)℃
• Humidity: (0～95)%RH, no condensation
• Battery voltage: 7.4V
• Battery capacity: 3000mAH
