Description

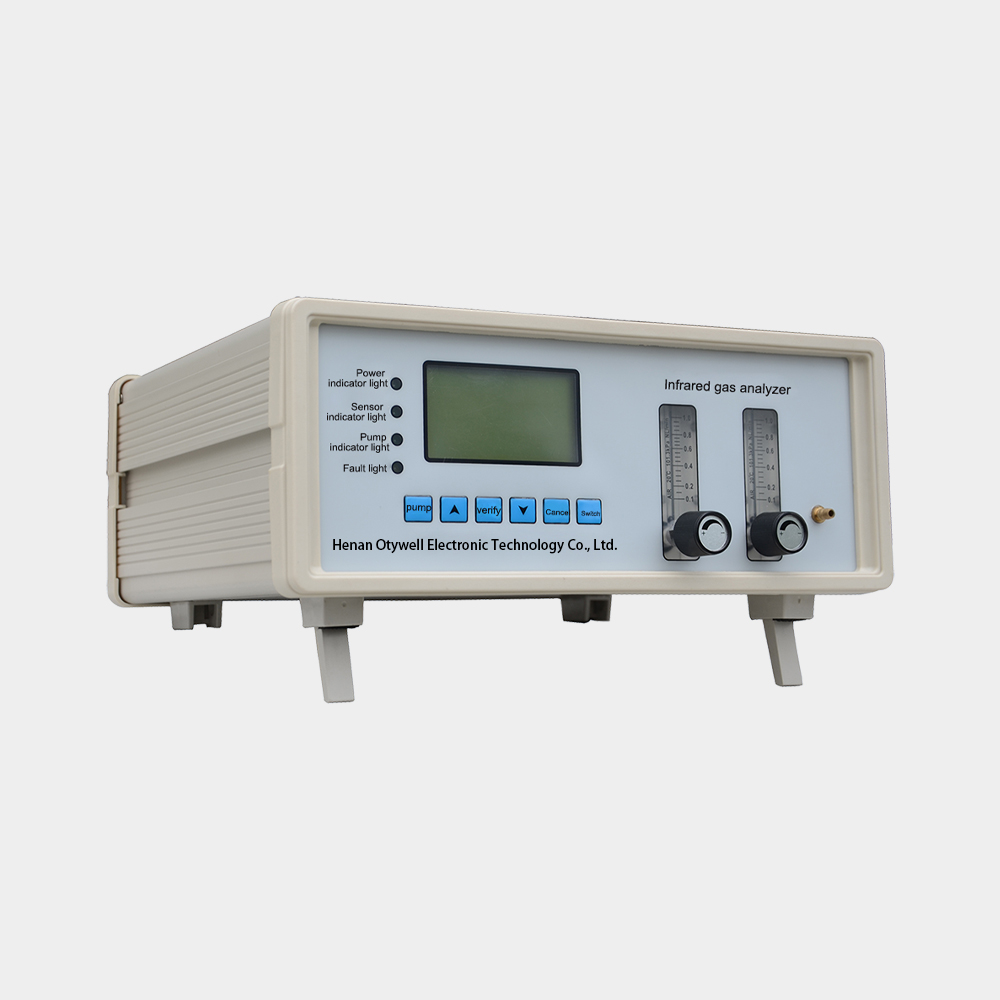

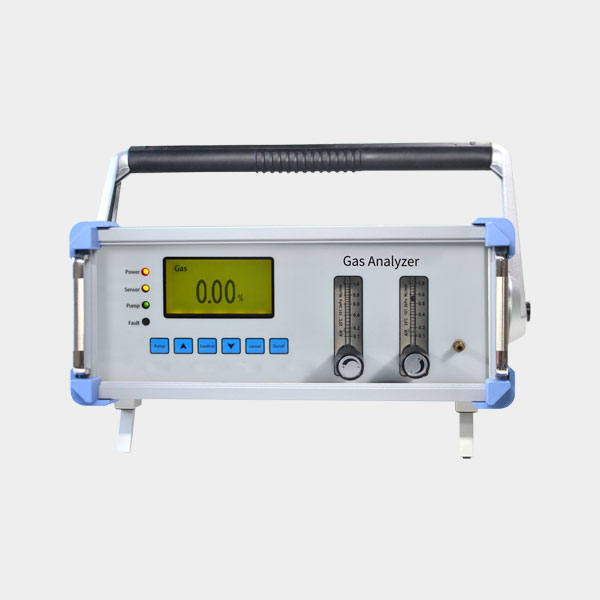

G2000 Pump suction type infrared gas analyzer adopts built-in power carbon film self-priming pump infrared detection principle, instrument is imported infrared sensor and advanced digital processing technology, Can carry out continuous on-line analysis of the gas (CO2, CO, CH4 and NOX, SO2, etc). Chinese LCD display, sound and light alarm, long life, high sensitivity, fast response, can be set up alarm value, boot self-checking function, with functions of alarm record. used in petroleum, chemical, metallurgical and other industrial and agriculture, medical and health departments and so on.
Key Features
- Continuous detecting on-line
- liquid crystal display (LCD)in chinese
- Sound and light alarm indicator
- A built-in power carbon film self-priming pump
- Sensor detection
- Set the alarm value
- Secondary flow control
- Aluminum chassis
- Modular infrared sensor>
- Record alarm function
- Convenient desktop support type
- Boot self-check function
- Convenient precision trimming function/li>
- A key to switch on pump conveniently
Functions Features
|
Detection principle |
Electrochemical, infrared, laser, etc |
| Detect gas | Flammable gas, toxic and harmful gases, etc |
| Sampling method | Pump suction type |
| Test range | Based on gas type |
| Differentiation rate | 1%LEL;1 PPM / 0.1 PPM.0.01 |
| Measurement error | + 3%FS |
| Status indication | liquid crystal indication |
| Debug mode | key operation |
| Response time | < 20s |
| Recovery time | < 20s |
| Environmental temperature | -10 ~ 50 |
| Working flow | 500mL/min |
| Protection grade | IP65 |
| Power supply | AC220V |
| Source | DC7.2v 2800mA |
| WeightN | No more than 2000g |
| Pressure limit | 86kPa ~ 106kPa |
| Size | 31 * 27.2 * 27.2 (mm) |
| Weight | About 4.5 kg |
TAG: otywell gas detector ，infrared gas analyzer，pump Gas detector，single Gas detector，Dual Flow Gas Detector
Mobile/whatsapp: +86-13333857585
Email: inquiry@otywell-detector.com
Note: Not all gases and range are listed, if you need more information, please contact us.
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
Note: Not all gases and range are listed, if you need more information, please contact us.
