Description

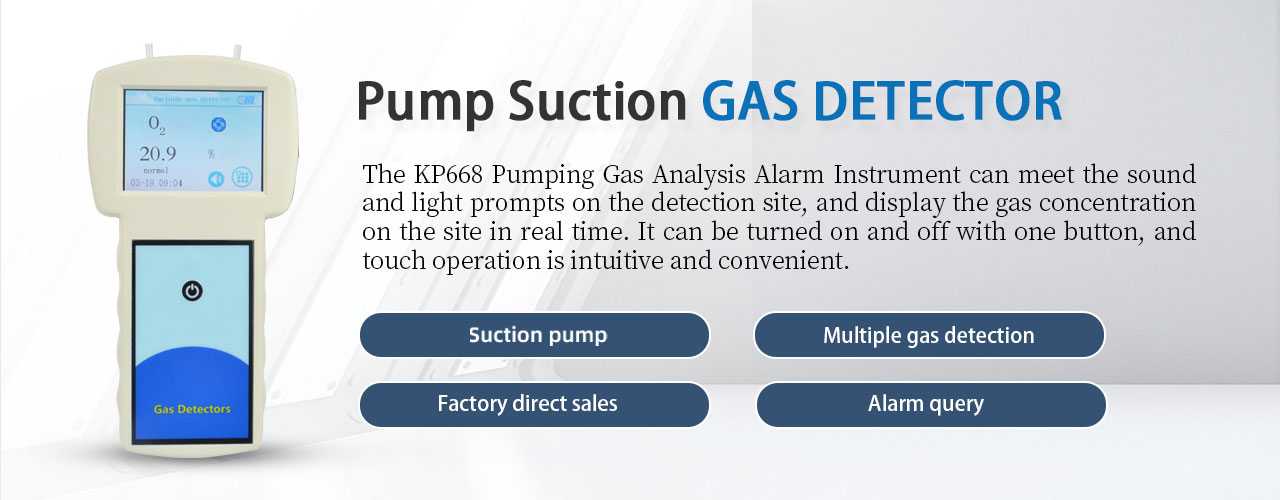

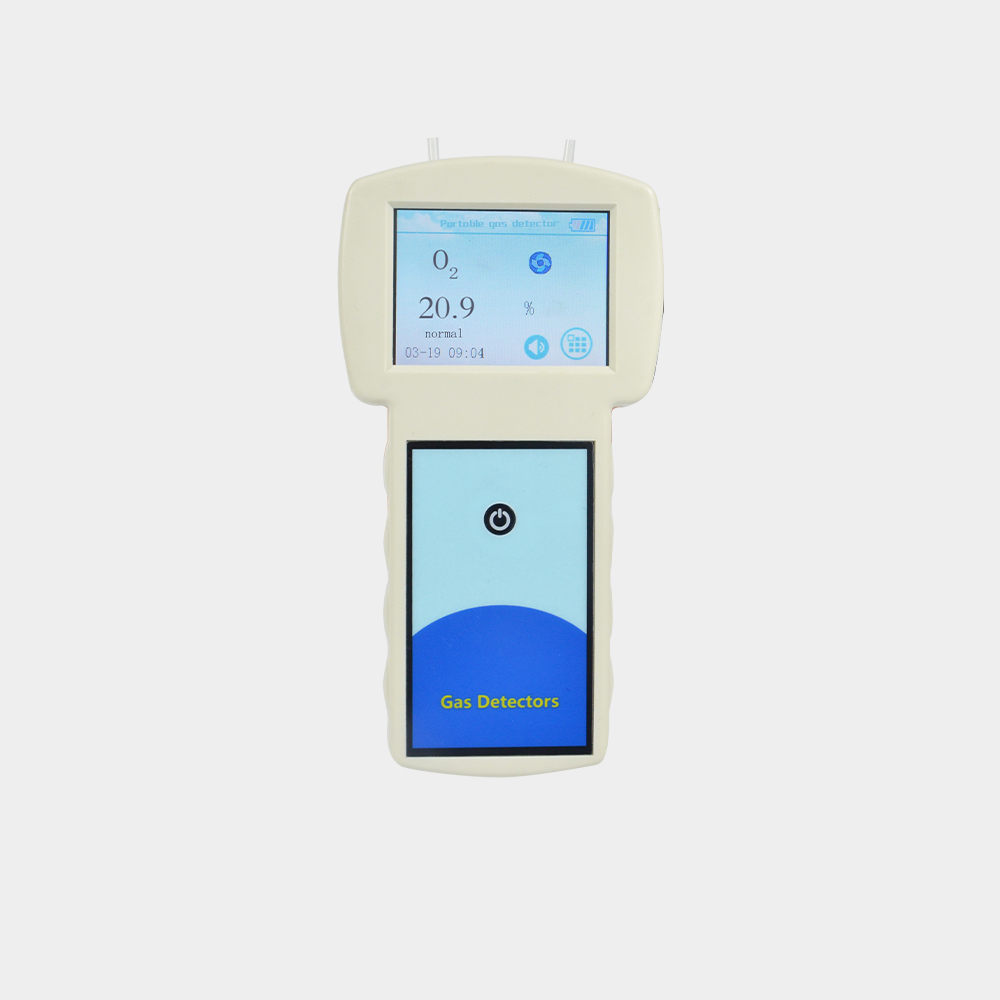

Gas analyzer: With internal pump, our KP668 portable gas analyzer is developed on the infrared detection principle. This device is endowed with high accuracy and excellent stability for its single light source & double tube air chamber technology. KP668 adopts advanced digital circuit processing technology, colorful touch screen, ultra-large capacity lithium battery for long stand-by time. It is mainly applied in the gas analysis of gas, chemical, cement, metallurgy, electric power and other fields. According to the variety of sensor, this device can be used for the detecting of various gases, such as SO2, NOX, CO2, CO, CH4, N2O, SF6, etc.

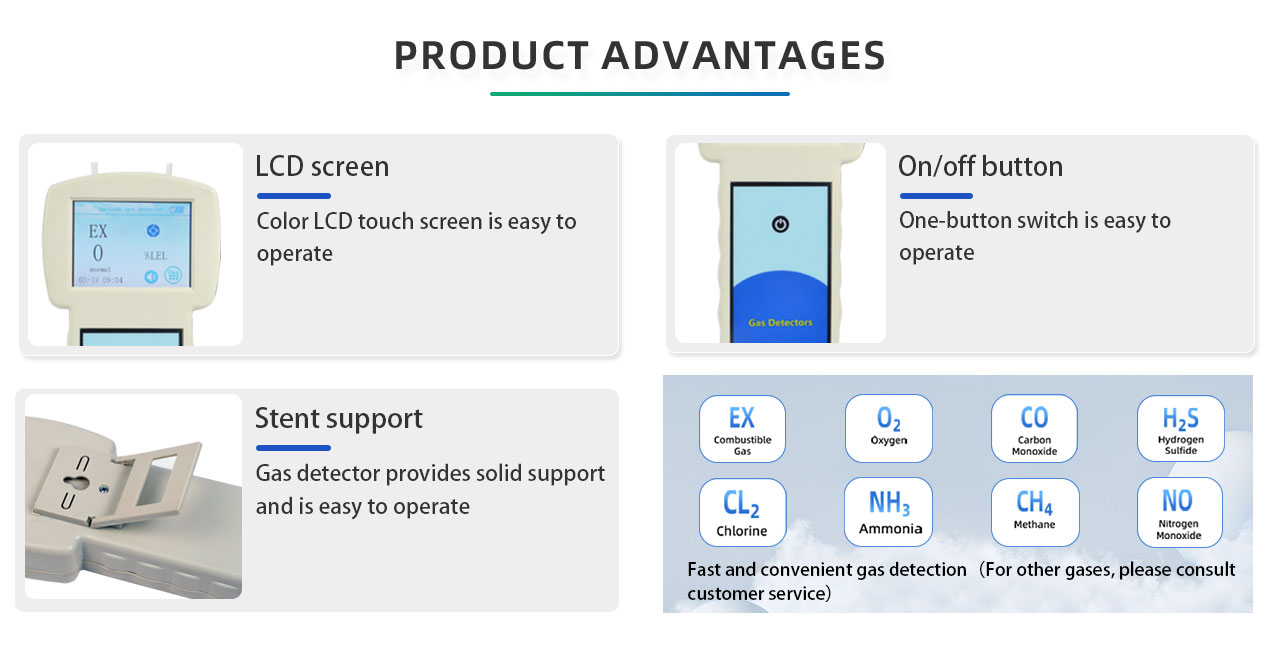

Functions Features
Technical Parameters
| Theory | electrochemistry; infrared radiation; catalyze |
| Application | combustible gas, TVOC, hazardous gas |
| Sampling method | pumping method |
| Detecting range | varies according to gas type |
| Resolution | 1%LEL, 1PPM/0.1PPM, 0.01 |
| Measuring error | full range±3%LEL |
| Indicating method | liquid-crystal |
| Calibrating way | touch screen operation |
| Responding time | <20S |
| Temperature | －20℃～50℃ |
| Working flow | 500mL/min |
| IP grade | IP65 |
| Battery | DC3.7V 2800mA |
| Weigh | ≤1000g |
| Pressure | 86kPa～106kPa |
| Dimensionsize | 209mm*110mm*40mm |
TAG: otywell gas detector，pump Gas detector， h2s gas detector
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
Note: Not all gases and range are listed, if you need more information, please contact us.
Detecting Parameters
| Gas Type | Common Range | Other Range |
| SF6 | 0-100PPM | 0-1000PPM/0-3000PPM/0-2000ppm |
| CH4 | 0-4% | 0-10000PPM/0-40000PPM/ 0-100% |
| CO2 | 0-5000PPM | 0-10000PPM/0-5%/0-10%/0-20%/0-100% |
| Hydrocarbon HC | 0-500PPM | 0-100%（C3H8 calibration） |
| SO2 | 0-500PPM | 0-1000ppm/0-5000ppm |
| NH3 | 0-100PPM | 0-1000ppm/0-5000ppm/0-10000ppm/0-5% |
| CO | 0-10000PPM | 0-50000PPM/0-5%/0-100% |
| H2S(not IR) | 0-50ppm | 0-200PPM/0-500PPM/0-2000PPM |
| CH2O(not IR) | 0-1ppm | 0-5PPM/0-10ppm/0-100ppm/0-2000ppm |
| O3(not IR) | 0-2ppm | 0-10ppm/0-100ppm/0-1000ppm/0-5000ppm |
Note: Not all gases and range are listed, if you need more information, please contact us.
