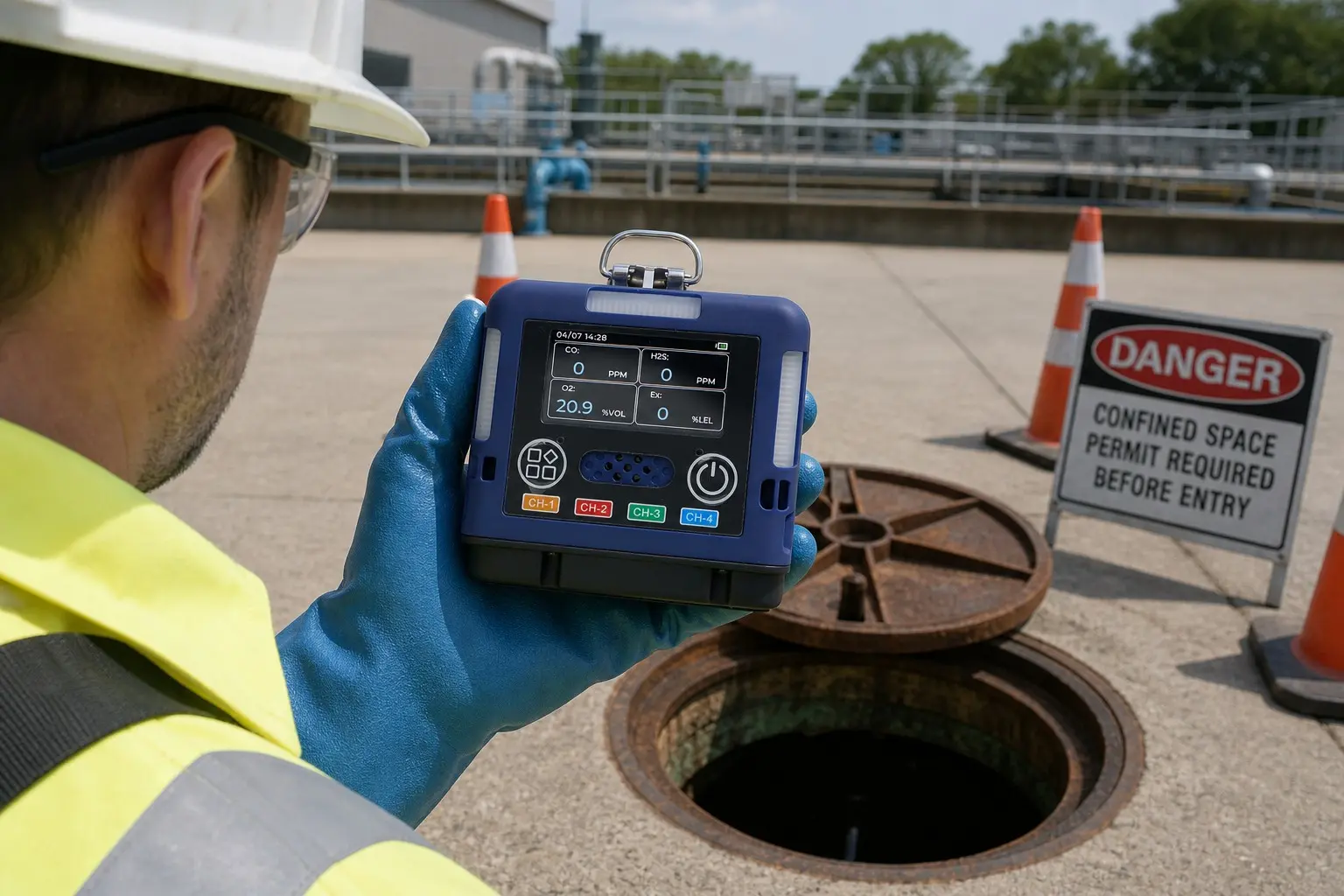

Sewer Gas Detection Equipment for Manholes and Wastewater Sites

Select sewer gas detection equipment around the job to be done. Odor alone says little about the instrument required. A crew opening a manhole needs remote pre-entry sampling, while an entrant needs a personal monitor. A lift station that operates around the clock may need fixed detectors. An odor or corrosion investigation may call for an H2S data logger.

For many sewer and wastewater tasks, the basic atmospheric channels are oxygen, combustible gas expressed as percent LEL, hydrogen sulfide, and carbon monoxide. That familiar four-gas combination is a useful starting point, but it does not cover every chemical used or produced at every site. Chlorine, sulfur dioxide, ammonia, or other gases may need separate sensors when the process and risk assessment identify them.

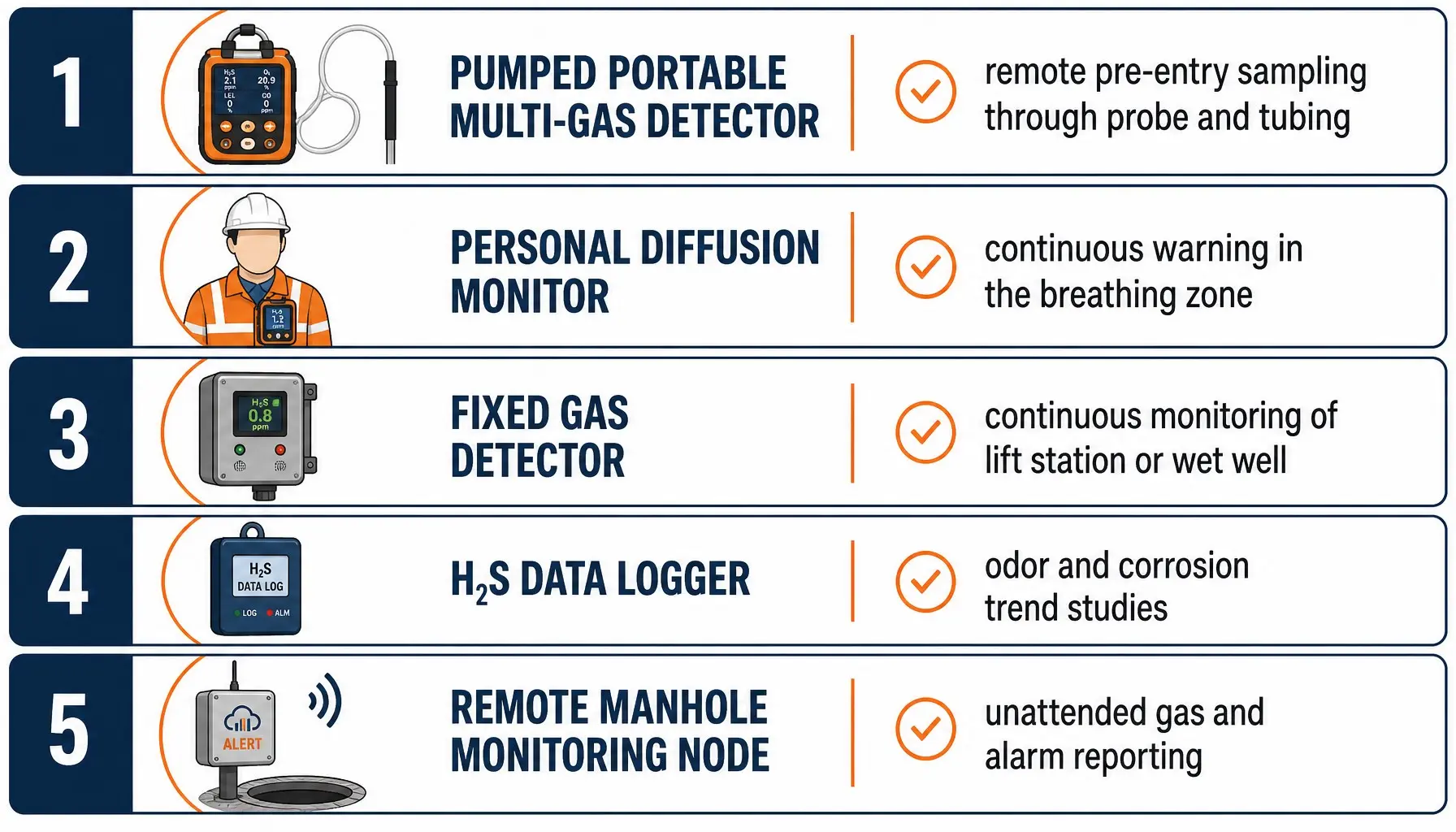

What counts as sewer gas detection equipment?

The term covers more than one type of instrument. It can include a portable pump detector used from outside a manhole, a diffusion monitor worn by an entrant, fixed transmitters installed in a lift station, an H2S logger suspended in a sewer line, or a remote node that sends readings to a control room.

These tools answer different questions. A handheld combustible gas sniffer may help locate a methane or natural-gas leak, but it does not prove that oxygen is safe or that hydrogen sulfide is absent. An H2S logger can document a concentration trend for odor control, yet it may not provide the personal alarms required for entry work. Start with the task and the hazards, then choose the equipment.

Equipment type	Main job	Typical limitation
Pumped portable multi-gas detector	Pre-entry sampling through a probe and tubing	Sample delay, tubing condition, filters, and pump flow must be considered
Personal diffusion monitor	Continuous warning in the worker’s breathing zone	It measures the atmosphere at the wearer, not a remote point deeper in the space
Fixed gas detector	Continuous monitoring of a selected lift station, wet well, or equipment room	Coverage depends on detector type, quantity, position, airflow, and maintenance
H2S data logger	Odor, corrosion, and concentration-trend studies	A single-gas logger does not replace a multi-gas entry monitor
Remote manhole monitoring node	Unattended gas, water-level, and alarm reporting	Communications, battery life, sensor access, and service plans need engineering review

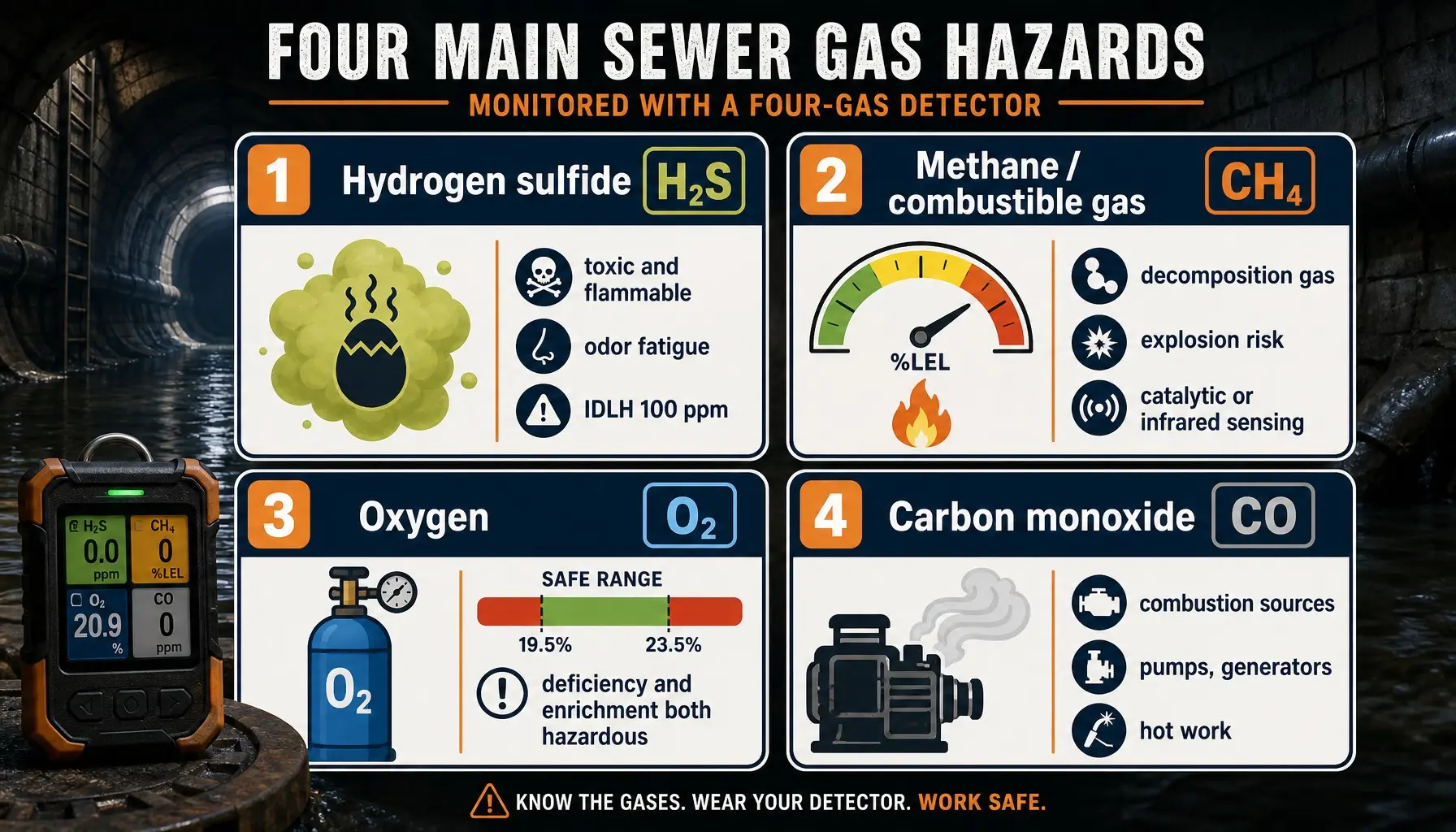

Which gases should be measured in a sewer?

There is no universal sensor list for every collection system. Waste composition, industrial discharges, cleaning chemicals, nearby utilities, ventilation, biological activity, and the work being performed can change the atmosphere. The standard four-gas set remains common because it covers several frequent entry hazards in one instrument.

Hydrogen sulfide

Hydrogen sulfide, or H2S, is often associated with sewer gas. It is toxic and flammable. Its rotten-egg odor is not a dependable warning because the sense of smell can become rapidly fatigued. The NIOSH Pocket Guide entry for hydrogen sulfide identifies sewer gas as a trade name, lists an IDLH value of 100 ppm, and warns that odor cannot be relied on for continuous presence.

A personal or portable monitor normally measures H2S for immediate safety decisions. A dedicated H2S logger serves another purpose: recording peaks and patterns over hours, days, or longer for odor and corrosion investigations. One instrument should not be assumed to perform both jobs.

Methane and other combustible gases

Methane can form as organic material decomposes. A combustible-gas channel commonly reports the result as a percentage of the lower explosive limit. Check which gas was used to calibrate the LEL sensor, how other gases affect the reading, and whether the sensor technology suits the expected atmosphere.

Catalytic LEL sensors need oxygen to operate and can be affected by poisons or inhibitors. Infrared methane sensors avoid some of those issues but do not detect every combustible gas. Choose the sensor for the gases that could actually be present rather than relying on the broad label “sewer gas.”

Oxygen

Low oxygen may result from displacement or biological and chemical processes. Oxygen enrichment creates a different fire risk. Oxygen must be measured directly. A normal combustible or toxic-gas reading does not confirm an acceptable oxygen concentration.

Carbon monoxide and process-specific gases

Carbon monoxide is included in many standard four-gas monitors. Its relevance can increase around engines, pumps, generators, hot work, traffic, and combustion sources. Wastewater facilities may also use or generate other gases. Review chemical inventories, industrial connections, cleaning operations, treatment chemicals, and previous monitoring records before fixing the sensor list.

Match the detector to the sewer task

A useful purchasing specification names the work first. “Sewer gas detector” is too broad to tell a supplier whether the crew needs a pump, personal alarms, fixed outputs, a long-term logger, or remote communications.

Task	Primary equipment	Features to review
Opening and testing a manhole	Pumped four-gas detector with approved tubing and probe	Pump test, flow indication, tubing length, water trap, sample delay, and data record
Worker entry	Personal diffusion multi-gas monitor worn in the breathing zone	Audible, visual, and vibration alarms, battery life, ruggedness, and event logging
Lift station or wet well	Fixed detectors plus portable monitors for maintenance and entry	Sensor placement, controller signals, relays, ventilation interface, access, and corrosion protection
Odor and corrosion survey	H2S logger with a suitable range and enclosure	Logging interval, battery duration, retrieval method, condensation, and sensor saturation
Unattended manhole or network monitoring	Battery-powered remote monitoring node	Communication coverage, alarm delivery, sensor service, enclosure rating, installation security, and lifecycle cost

This layered approach is usually more reliable than expecting one instrument to handle every task. Fixed monitoring watches a defined location. Personal monitors follow workers. Pumped units test remote points. Loggers and telemetry systems collect data for operational decisions.

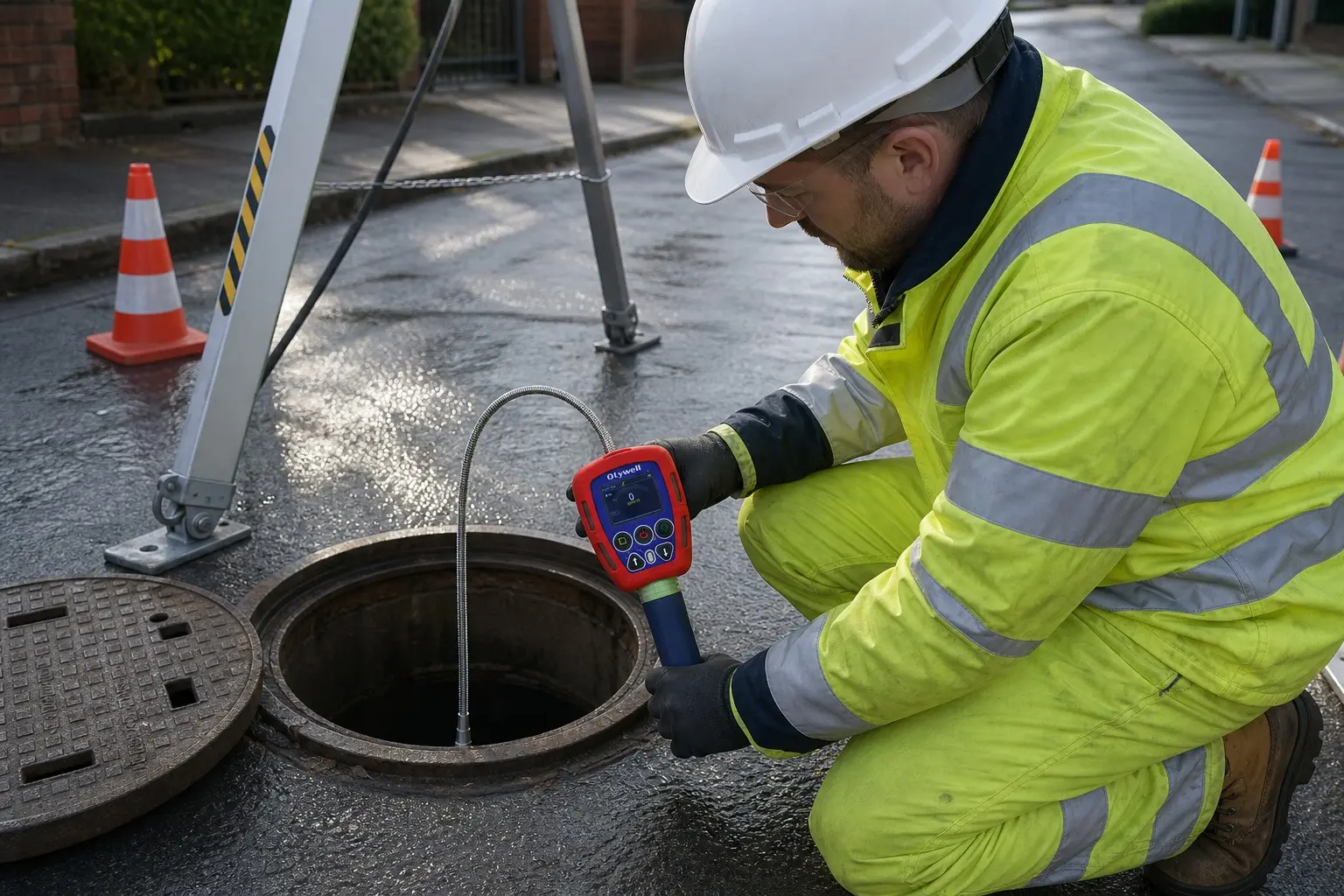

Why pumped sampling matters before entry

A diffusion detector responds to gas that reaches its sensor inlet. It cannot sample the bottom of a manhole while the operator remains at the surface. A pump draws a sample through tubing, which lets the crew test remotely before anyone enters.

The OSHA permit-required confined spaces standard states that atmospheric conditions must be tested before entry where feasible. It specifically addresses continuous systems such as sewers and requires continuous monitoring in the areas where authorized entrants work when entry is authorized. The same standard specifies the testing sequence: oxygen first, then combustible gases and vapors, followed by toxic gases and vapors.

Sampling should account for the shape and depth of the space. A single reading at the opening can miss a different atmosphere below. Follow the written entry procedure and the detector manufacturer’s instructions for sampling levels, tubing length, and the time needed for a sample to reach the sensors.

Calculate sample delay before trusting the reading

The pump, tubing diameter, tubing length, filter, and flow rate affect transport time. Add the detector’s sensor response to the tubing delay. If the crew moves the probe and reads immediately, the display may still represent the previous location. Use the manufacturer’s stated method rather than a generic number.

Keep water out of the sample path

Sewer work is wet. A blocked filter, flooded line, or damaged pump can prevent gas from reaching the detector. Inspect the probe, tubing, water trap, and filter before use. Confirm that the instrument recognizes restricted flow and that the crew knows what the fault indication means.

Personal monitors are still needed after pre-entry testing

Passing a pre-entry test does not guarantee that the atmosphere will remain unchanged. Flow, decomposition, cleaning work, upstream discharge, ventilation loss, or the work itself may introduce a new hazard. Each entrant’s monitor should stay in the breathing zone where its alarms can be seen, heard, and felt.

A standard personal monitor often includes O2, LEL, CO, and H2S. Our guide to what a four-gas monitor measures explains those channels in more detail. If the sewer system can contain another toxic gas, a standard four-channel configuration may not be enough.

Review alarm audibility around pumps, blowers, traffic, and hearing protection. Vibration and bright visual alarms provide useful backup, but the response procedure still has to be trained. Workers should not remain in the space to investigate an alarm unless the written program and protective measures specifically authorize that work.

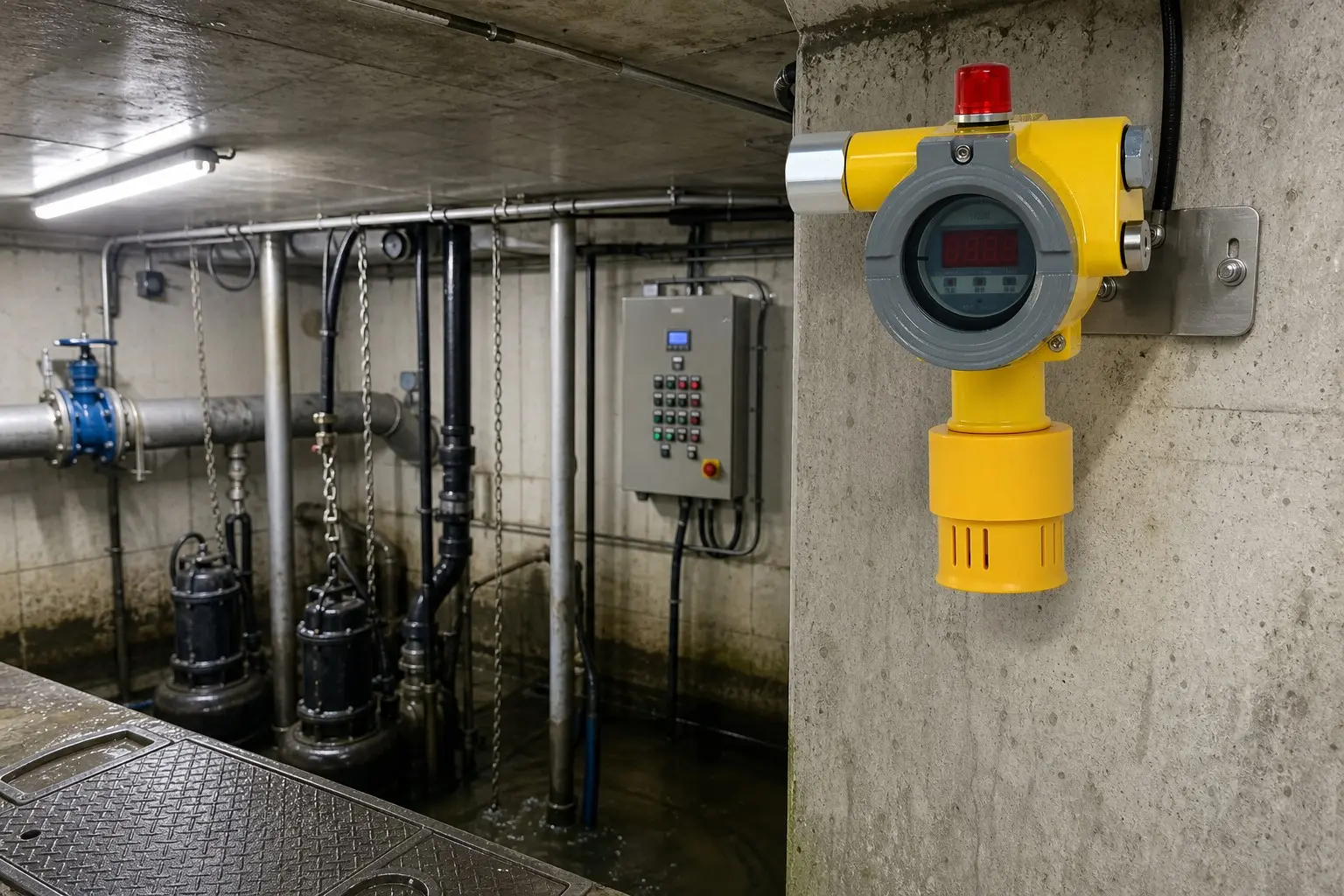

Fixed gas detection for lift stations and wet wells

Fixed detectors can watch selected locations continuously and send signals to a controller, PLC, DCS, horn, beacon, or ventilation system. They are commonly considered where gas can accumulate during normal operation or a foreseeable fault. A fixed installation does not remove the need for portable testing during entry and maintenance.

Detector placement needs more than a simple heavier-than-air or lighter-than-air rule. Review credible release points, normal and failed ventilation, walls and equipment that interrupt airflow, temperature, moisture, washdown, worker position, and access for calibration. H2S and methane may require different detector positions, and one sensor may not represent an entire wet well or equipment room.

The OSHA sewer-entry program example lists toxic gas, flammable gas, and oxygen deficiency among potential hazards. The figures in that example are part of a sample program, not universal factory alarm settings. A qualified person must establish alarm and action levels for the actual site and jurisdiction.

• Make the sensor accessible for gas application, inspection, and replacement.
• Keep water spray, deposits, insects, and condensation from blocking the inlet.
• Verify hazardous-location approvals and installation requirements where applicable.
• Test the entire alarm path, including controller indication, relays, ventilation, and remote notification.
• Document what happens after sensor fault, signal loss, calibration overdue, or power failure.

When an H2S logger is the better tool

Short personal readings can miss a release that varies with flow, temperature, pumping cycles, or time of day. An H2S logger can show when peaks occur and how long they last. That information can support odor investigations, chemical dosing studies, ventilation review, and corrosion-control work.

Choose the range carefully. A low-range logger can provide useful detail for an odor study but may go over range during a large release. A high-range unit may not provide the resolution wanted for low-level trends. Check logging interval, memory, battery duration, sensor life, over-range behavior, data retrieval, clock accuracy, and the enclosure’s resistance to moisture and corrosion.

A logger suspended in a sewer is an operational measurement tool. It does not by itself establish safe entry conditions, protect a worker’s breathing zone, or replace the site entry procedure.

Specifications that matter when comparing equipment

Brochures often lead with the number of gases and the maximum range. Those details matter, but field use exposes other differences quickly. Include the following points in the request for quotation.

Gas configuration and sensor technology

State every required gas, range, resolution, and expected background. For LEL monitoring, ask whether the detector uses catalytic or infrared technology, which gas is used for calibration, and how correction factors apply. For toxic channels, obtain cross-sensitivity data for the exact sensor.

Sampling method

Specify diffusion, internal pump, external pump, or fixed sample draw. For a pumped unit, include expected tubing length and material, probe type, water trap, filter, flow indication, and blocked-flow alarm. Ask how those choices affect response time.

Environmental and mechanical protection

Review operating temperature, humidity, pressure, condensation, ingress protection, drop resistance, enclosure material, and corrosion exposure. An IP rating describes dust and water ingress. It does not replace an explosion-protection approval.

Alarms, records, and communications

Portable units may need audible, visual, and vibration alarms, TWA and STEL functions, event logs, user assignment, and docking support. Fixed systems may need 4 to 20 mA, RS485, relays, local display, controller compatibility, or wireless reporting. Define who will receive each alarm and what action follows it.

Service and lifecycle cost

Compare calibration gas, regulators, filters, tubing, sensor replacement, batteries, docking equipment, software, training, repair turnaround, and spare-unit requirements. A lower purchase price can be offset by unavailable calibration supplies or long service delays.

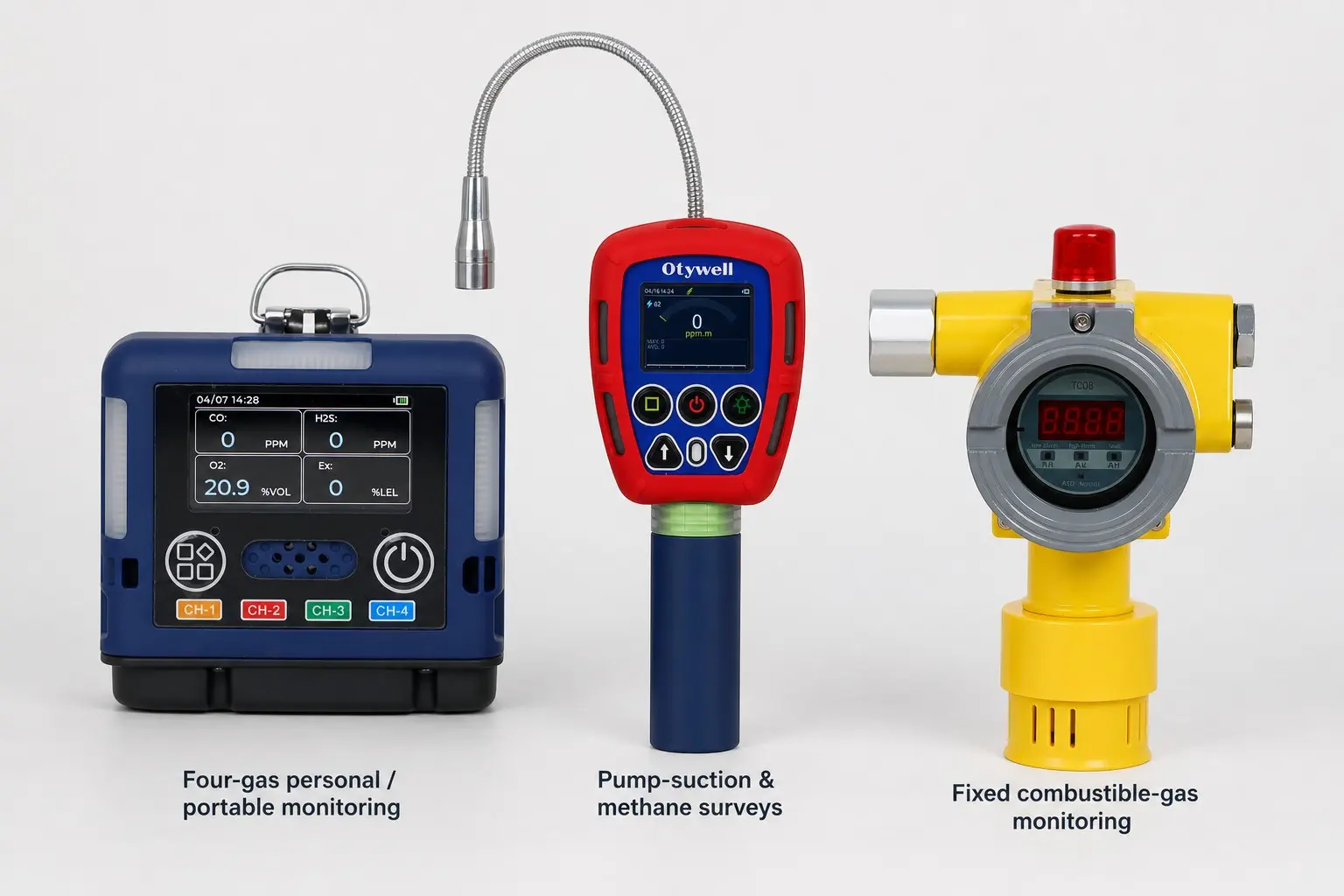

Otywell equipment configurations to review

Product selection should begin with the gas list and work method. The following Otywell products illustrate different equipment roles. Final configuration, ranges, approvals, accessories, and sensor compatibility must be confirmed for the order.

Four-gas personal and portable monitoring

The Otywell G60 four-in-one multi-gas detector is intended for the standard O2, LEL, CO, and H2S combination used in many confined-space programs. It can serve as a personal or portable monitor when its configuration, sampling method, and approvals match the job.

Pumped and methane-focused surveys

The Otywell G90 portable gas detection alarm includes pump-suction and methane-focused configurations. This makes it a product to review for remote sampling or jobs that need more detail about methane concentration. Confirm the selected mode and range because LEL monitoring, ppm leak work, percent-volume measurement, and remote laser detection answer different questions.

Fixed combustible-gas monitoring

The Otywell TCB3 fixed combustible gas detector provides continuous methane or combustible-gas monitoring with industrial signal outputs. A lift-station system may also need separate H2S, oxygen, or other fixed channels. Detector count, location, controller logic, installation, and commissioning require a site-specific design.

Bump testing, calibration, and field records

A visual inspection and electronic self-check cannot prove that gas reaches the sensors. A bump test applies known test gas to verify response and alarm operation. Calibration compares the displayed value with a known concentration and adjusts the detector when the procedure requires it.

1. Inspect the housing, inlets, tubing, probe, filter, water trap, battery, display, and fault status.
2. Confirm the installed sensors, ranges, units, alarms, date, and user assignment.
3. For a pumped detector, run the pump and blocked-flow checks specified by the manufacturer.
4. Apply the correct certified gas mixture with the approved regulator, cap, and flow.
5. Record response, alarm operation, displayed values, recovery, and any failed channel.
6. For fixed systems, test the complete loop to the controller, horn, beacon, ventilation, and remote alarm.

Follow the manufacturer and site program for test intervals. Increase attention after over-range exposure, failed bump tests, sensor faults, water ingress, repair, long storage, or other events named in the instructions. Keep records by detector serial number so a failed unit can be removed from service and traced.

Sewer gas detection equipment checklist

Frequently asked questions

What gases should a sewer gas detector measure?

Many sewer-entry programs start with oxygen, combustible gas or methane, carbon monoxide, and hydrogen sulfide. The correct sensor list must also account for treatment chemicals, industrial discharges, cleaning products, nearby utilities, and the work being performed.

Can a combustible gas detector detect hydrogen sulfide?

Do not assume that it can. A combustible-gas channel measures flammability response, commonly as percent LEL, while an H2S channel is designed for toxic-gas measurement. Use a detector that explicitly lists an H2S sensor and range.

Is a four-gas monitor enough for sewer entry?

It may cover the standard O2, LEL, CO, and H2S hazards, but it is enough only when the site assessment confirms that no additional gas requires measurement. Wastewater treatment chemicals and industrial connections can create other sensor requirements.

Should the atmosphere be tested before a manhole is opened?

Follow the employer’s written procedure for approaching and opening the space. Atmospheric testing should be performed before entry, and a pump with approved tubing allows remote sampling from outside. Opening the cover can also change ventilation, so monitoring should continue as the procedure requires.

Do sewer workers need a pumped or diffusion detector?

They often need both functions. A pump is used for remote pre-entry sampling. A diffusion monitor worn in the breathing zone provides continuous personal warning after entry. Some portable instruments combine an internal pump with wearable alarms, but the work procedure still has to define how the unit is used at each stage.

Where should fixed H2S and methane detectors be installed?

Place them where gas from a credible source is expected to reach the sensor, while accounting for ventilation, obstructions, temperature, moisture, access, and worker location. H2S and methane may require different positions. A qualified designer should determine the quantity and final locations.

Specify the job before requesting a quotation

The phrase “sewer gas detection equipment” can describe several different systems. A useful request identifies the site, task, target gases, expected ranges, sampling distance, fixed or portable format, environmental conditions, required approvals, alarm actions, communication outputs, and quantity.

That information lets the supplier recommend a workable configuration instead of guessing from the application name. It also exposes gaps early, such as a four-gas unit without a pump for remote sampling, a methane-only detector where H2S is the main toxic hazard, or a fixed sensor with no practical way to calibrate it after installation.
