Descriere

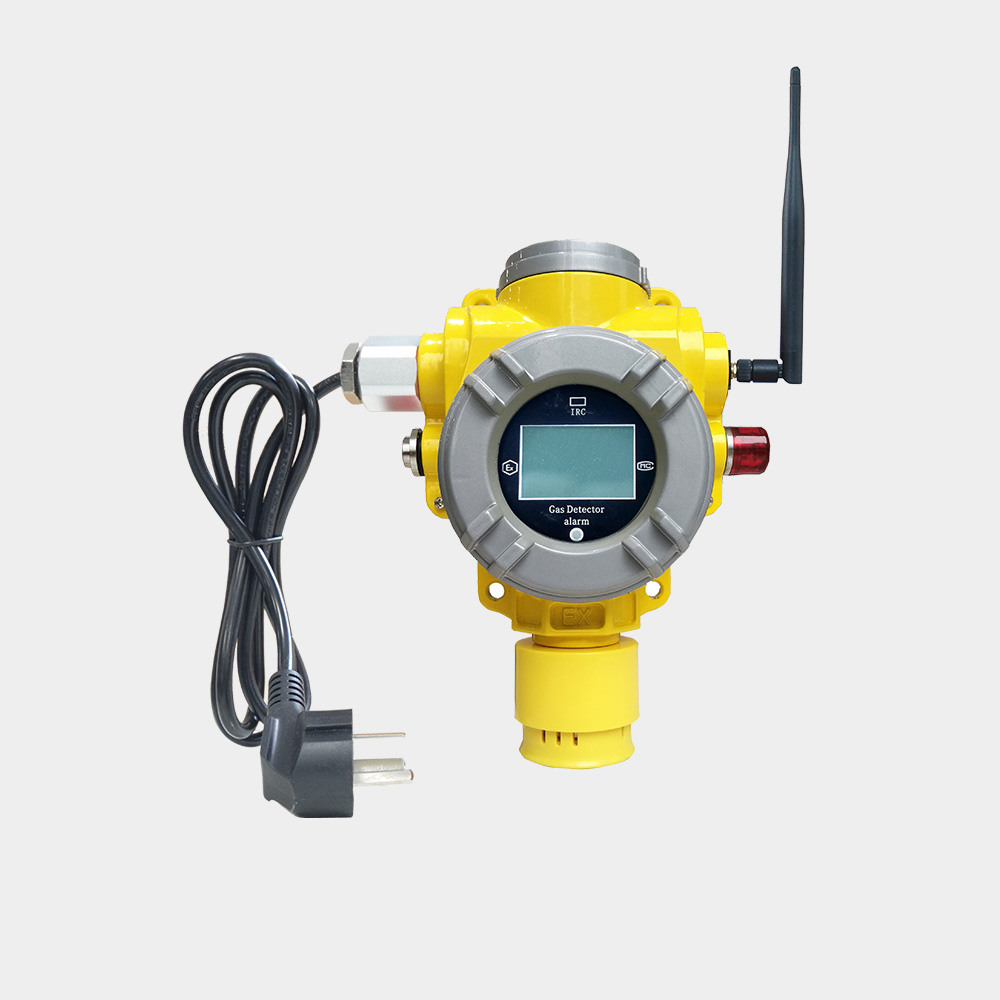

TCB2-W wireless gas detector transmits the gas concentration signal in the air to the monitoring unit through 433 fără fir. It is used in chemical plants, smelting and papermaking, refrigeration, fire protection, gas catering, rubber, tratarea apelor uzate, pharmaceutical casting, petroleum refining, minerit, electricitate, fire protection, municipal administration, communications and other industrial environments that require explosion protection, poisoning protection and suffocation protection and are not convenient for construction and wiring.
The TCB2-W series gas detectors are manufactured using high-performance sensors combined with sophisticated SMD technology. The instrument has good repeatability, resistance to temperature and humidity interference, durata de viata lunga, si operare usoara.
The TCB2-W series gas detectors use two-wire, three-wire or four-wire wiring to detect combustible/toxic gases in the environment.
Parametrii tehnici
- Principiul de detectare: ardere catalitică, electrochimic, infraroşu, conductivitate termică, PID, etc..
- Gaz de detectare: gaz combustibil/oxigen și gaz toxic (vezi tabelul atasat)
- Metoda de eșantionare: difuziune naturală
- Modul de afișare: Display LCD cu cristale lichide, Afișaj digital LED (opțional)
- Sursa de alimentare de lucru: DC24V
- Timp de răspuns: T90<20s (combustibil) T90<60s (toxic)
- Eroare de indicație: ±5%FS
- Tip rezistent la explozie: Ignifugă + intrinsic safety
- Temperatura de lucru: -40℃~70℃ (combustibil) -20℃~50℃ (toxic)
- Environmental pressure: (86～106)KPa
- Umiditate: ≤93%RH
- Semnal de ieșire: 4-20mA standard signal, RS485 four-wire/RS two-wire
- Connection cable: RVVP 3×1,5 mm2, or RVVP 4×1.5mm2，VVP 2×2.5mm2
- Distanța de transmisie: ≤1000m
- Greutate: 2500g
- Dimensiunea aspectului: 212×195×80 (mm)
- Marcă rezistentă la explozie: Ex d IIC T6 Gb/Ex tD A21 IP66 T80℃
- Numărul certificatului antiexploziv: CE21.1019
- Grad rezistent la explozie: IP66
- Measurement number: 2018C241-41
- Other configurations: acoperire de ploaie, dual relay output
ETICHETĂ: detector de gaz otywell ，Flammable Gas Detector，detector de gaz h2s ，Fixed gas detector ，Wireless Gas Detection Alarm
E-mail:inquiry@otywell-safety.com
Mobile/WhatsApp:+8616692113216
Nota: Nu toate gazele și intervalul sunt listate, daca ai nevoie de mai multe informatii, va rugam sa ne contactati.
| Lista parametrilor de gaz comun | ||||
| Gaz detectat | Domeniul de măsurare | Interval optional | Rezoluție Rat | Timp de răspuns |
| LEL -gaz combustibil | 0-100%LEL | 0-100%VOL（infraroșu sau catalitic） | 1%LEL/1% vol | ≤10s |
| monoxid de carbon | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hidrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| gaz natural | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxigen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozon | 0-10PPm | 0-20、100PPm | 0.01PPm/0,1 PPM | ≤15s |
| hidrogen sulfurat-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Metan-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1% vol | ≤10s |
| fluor | 0-10P.M | 0-1、10PPM | 1/0.1PPm | ≤15s |
| acid clorhidric | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Azot-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hidrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0,1 PPm | ≤15s |
| clor | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| amoniac gazos | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxinitrură | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| metanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| dioxid de sulf | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| oxid de azot | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| dioxid de azot | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| fosfină | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrilonitril | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| dioxid de carbon | 0-5000PPm | 0-1%/5%/10%VOL(Infraroşu ) | 1PPM/0,01%VOL | ≤15s |
| fluorură de hidrogen | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xilen/metilbenzen | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxiran | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| Pentru alte gaze și intervale de măsurare, va rugam sa ne contactati direct! | ||||
Nota: Nu toate gazele și intervalul sunt listate, daca ai nevoie de mai multe informatii, va rugam sa ne contactati.
