portable Ozone O3 gas detector-G10 - Your Website Name

Portable Gas Detector/

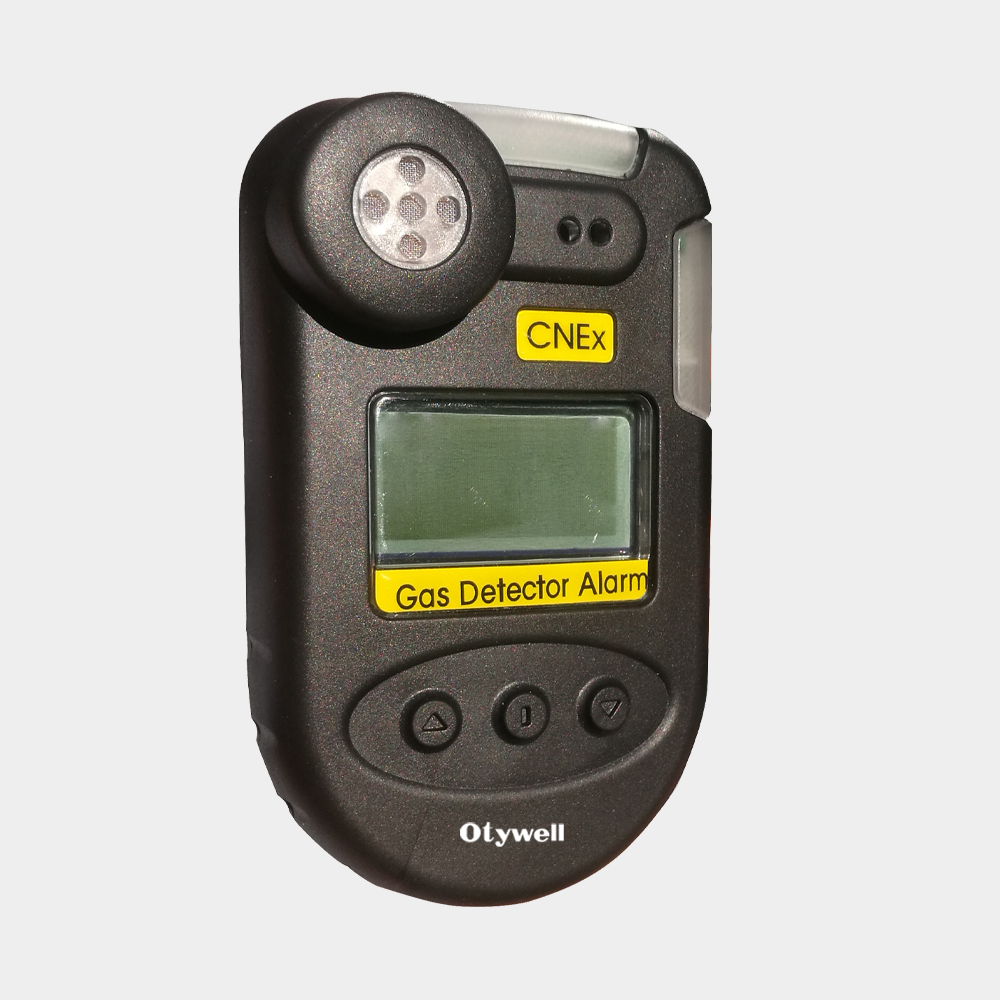

portable Ozone O3 gas detector-G10

  • Upload to computer function
  • Using advanced ultra-low energy micro component
  • Ultra bright LCD display
  • Ultra small ergonomic design
  • Sensor fault self-test, automatic calibration function
  • Replaceable insert sensor module
  • Two levels triple alarms (sound, light, vibration)
  • Sound and light alarm can be clearly identified
  • Mobile/whatsapp:  +86-13333857585     Email:  inquiry@otywell-detector.com

  • Product Details
Product description

Portable O3 gas detector has LCD display function and rechargeable lithium battery powered digital ozone gas monitor. Portable gas detectors and alarms from Gas Monitor Point for the detection of levels of Ozone (O3).

G10 is one waterproof gas detector that adopts imported sensors, the quality is stable and reliable. With leading operation menu, 1700MA rechargeable lithium batteries, and replaceable inserted gas sensing module, our  model works in environment of -20°C to 70°C, and for its features such as explosion-proof, waterproof and dustproof, it is the preferred tool for oil production engineering, metallurgy, chemical industry, municipal, sewage treatment, electricity, gas, mining, tunnel construction, storage, paper making, pharmaceutical, brewing ,and other fields which need to detect hazardous gases!

G10 gas detector can (customized) detect carbon monoxide, hydrogen sulfide gas at the same time.

Please choose the gas that you want to test with this mahine from the below gases list;

Gas Measuring range Optional range Resolution Response time
 EX(LEL) 0-100%LEL 0-100%VOL (infrared) 1%LEL/1%VOL ≤15second
 O2 0-30%VOL 0-30%、0-100%VOL 0.1%/0.01%VOL ≤15second
H2S 0-100PPM 0-50、200、1000PPM 0.1/1PPM ≤15second
CO 0-1000PPM 0-500/2000/5000PPM 0.1/1PPM ≤15second
NO2 0-20PPM 0-50、1000PPM 0.1/1PPM ≤20second
Natural gas 0-100%LEL 0-100%VOL 1%LEL/1%VOL ≤15second
NOX 0-20PPM 0-50、1000PPM 0.1/1PPM ≤20second
CH4 0-100%LEL 0-100%VOL 1%LEL/1%VOL ≤15second
 CO2 0-5000PPM 0-1%、5%、10%VOL (infrared) 1PPM/0.01%VOL ≤20second
NO 0-250PPM 0-500、1000PPM 1PPM ≤20second
N2 0-100%VOL 0-100%VOL 0.1%VOL ≤15second
Alcohol 0-100%LEL 0-100%LEL 1%LEL/1%VOL ≤15second
SO2 0-20PPM 0-50、1000PPM 0.1/1PPM ≤20second
CL2 0-20PPM 0-10、50、100PPM 0.1PPM ≤20second
dichlorosilane 0-20PPM 0-20、100PPM 1/0.1PPM ≤20second
NH3 0-100PPM 0-50、500、1000PPM 0.1/1PPM ≤20second
Silicon tetrachloride 0-20PPM 0-20、100PPM 1/0.1PPM ≤20second
H2 0-1000PPM 0-40000PPM 1/10PPM ≤20second
PH3 0-20PPM 0-20、1000PPM 0.1/1PPM ≤20second
 HCL 0-20PPM 0-20、50、100PPM 0.1/1PPM ≤20second
Acrylonitrile 0-100PPM 0-100PPM 1PPM ≤20second
TVOC 0-100PPM 0-100PPM 1PPM ≤20second
CLO2 0-50PPM 0-10、100PPM 0.1PPM ≤20second
HCN 0-50PPM 0-100PPM 0.1PPM ≤20second
 ETO 0-10PPM 0-100、1000PPM 1PPM ≤20second
 O3 0-10PPM 0-20、100PPM 0.01/0.1PPM ≤20second
 CH2O 0-20PPM 0-50、100PPM 0.1/1PPM ≤20second
 F2 0-10PPM 0-1、10PPM 1/0.1PPM ≤20second
 HF 0-10PPM 0-1、10、50、100PPM 0.01/0.1PPM ≤20second
Xylene, toluene 0-20PPM 50、100PPM 0.1/1PPM ≤20second
Stench 0-100PPM 0-100PPM 1PPM ≤20second
For unlisted gas, please contact our sales department
  • Ultra bright LCD display
  • Ultra small ergonomic design
  • High waterproof design
  • Sensor fault self-test, automatic calibration function
  • Replaceable insert sensor module
  • Two levels triple alarms (sound, light, vibration)
  • Sound and light alarm can be clearly identified
  • Casted plastic shell
  • Antiskid, waterproof, dust proof, explosion proof
Technical index
Test gas O3
Range 0-5PPM, 0-10PPM,0-20PPM,0-100PPM
Resolution 0.01ppm/0.1ppm
Accuracy 3%F.S
Response time T90<10s
