Description

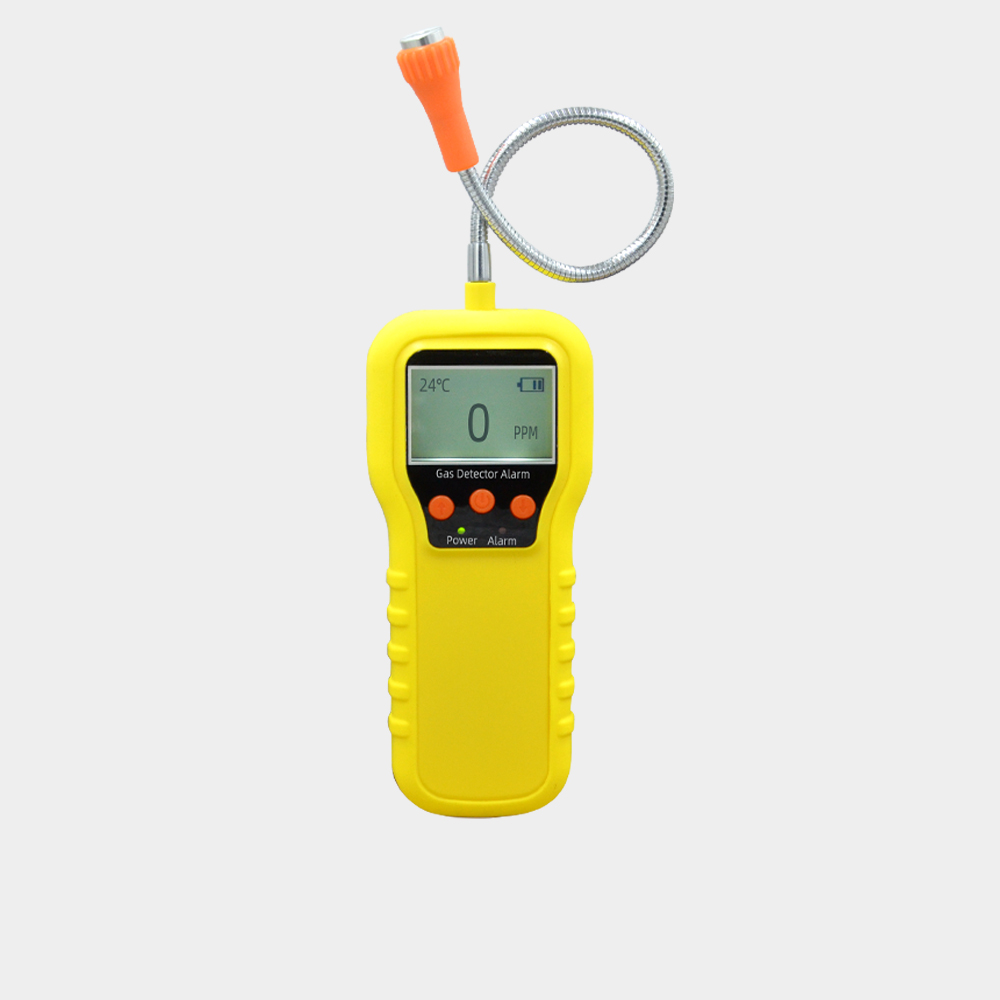

KP816 portable gas leakage detector is made of flame-retardant plastic and it feels comfortable for its ergonomic design and flexible metal probe. According to the sensor’s different type, the KP816 can detect flammable gases or toxic gases with 1 ppm or 1% LEL.
KP816 portable gas leakage detector can be used for pipeline gas leakage safety inspection, gas vehicle modified parts leakage inspection, filling gas interface leakage detection, chemical plant pipeline flange gas leakage inspection and other places which need leakage detecting for preventing explosion and poisoning, this model is single gas leak detector.

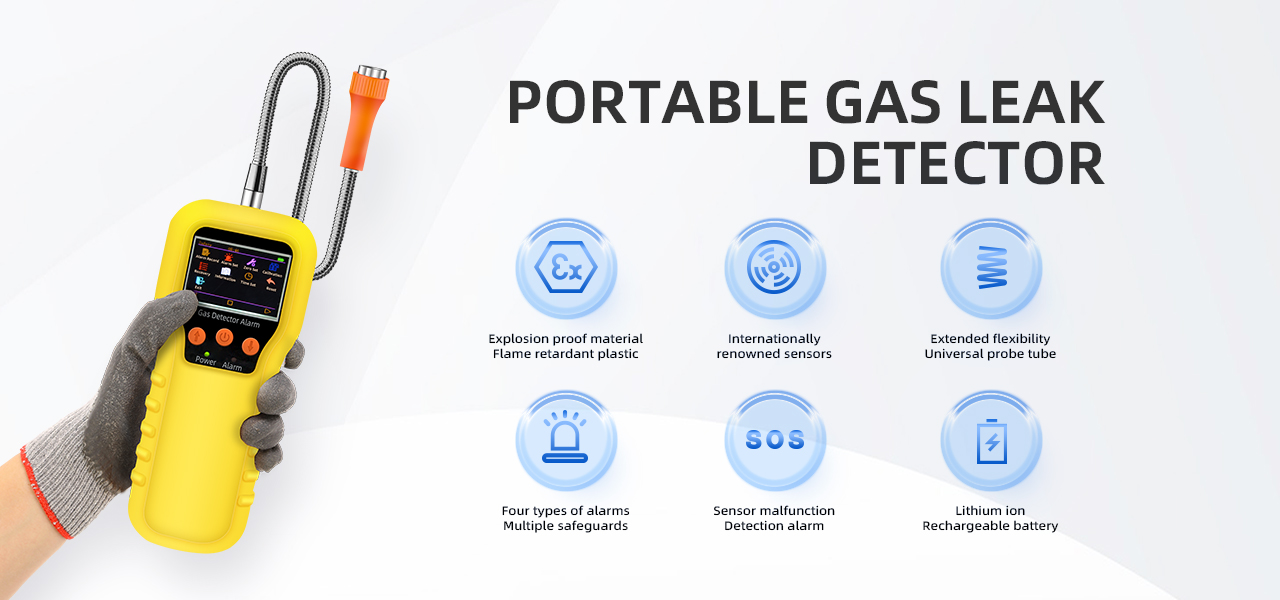

Functions Features

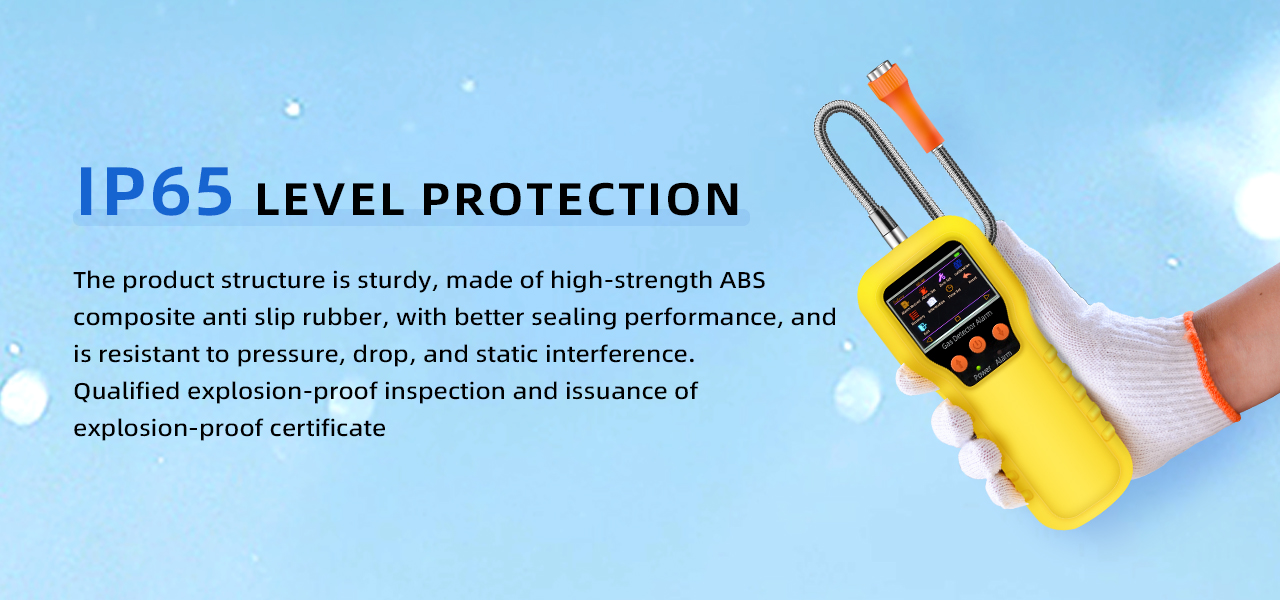

- Explosion proof material
- Flame retardant plastic
- Internationally renowned sensors
- Extended flexibility

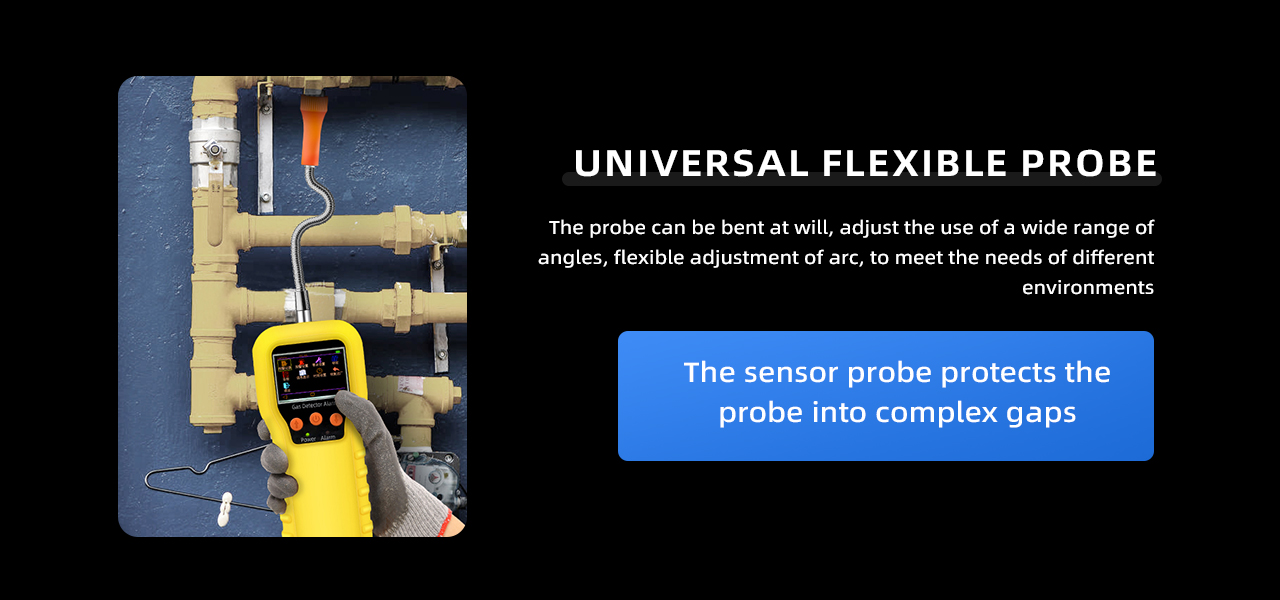

- Universal probe tube

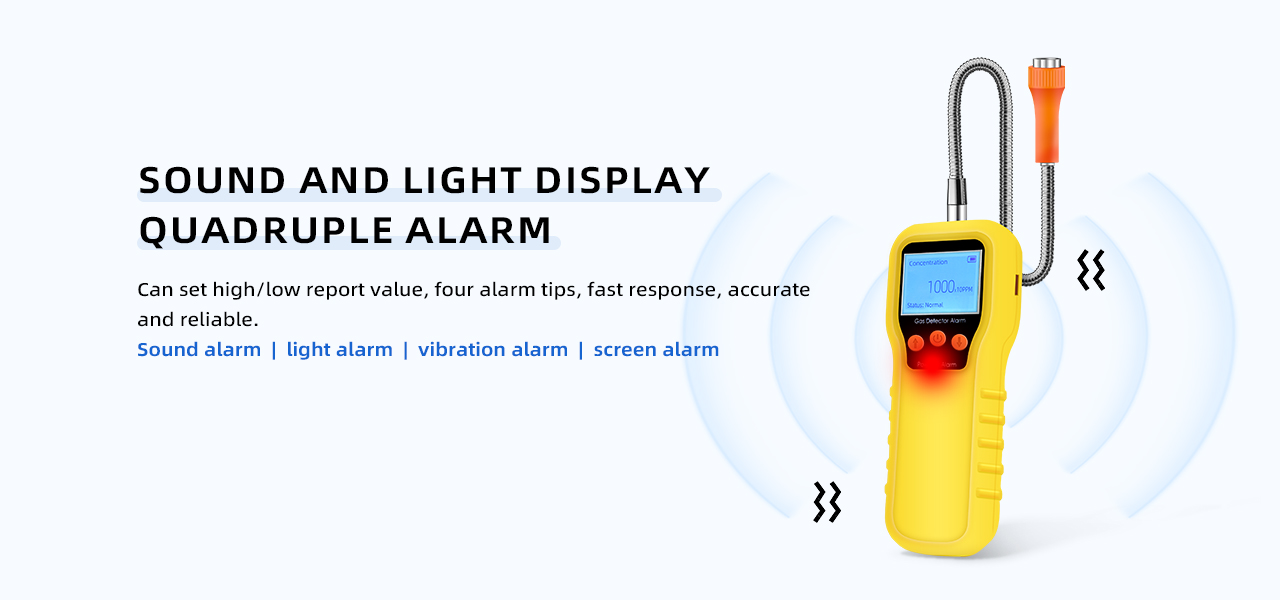

- Four types of alarms
- Multiple safeguards
- Sensor malfunction
- Detection alarm

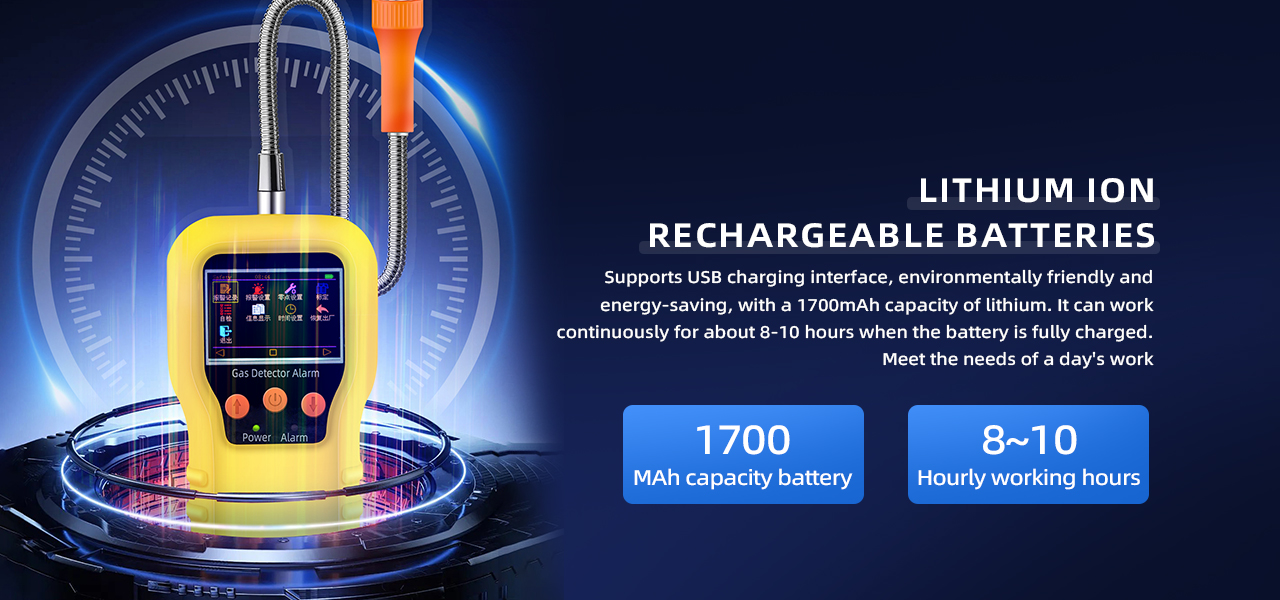

- Lithium ion
- Rechargeable battery
Technical Parameters
| Detection method | Natural diffusion |
| Detection principle | Semiconductor |
| Sensitivity | 1PPM / 1% LEL |
| Display mode | LCD |
| Detection range | (0～100）%LEL |
| Display error | ±3% FS |
| Working hours | > 8 hours continuous (non-alarm standby state) |
| Working environment | temperature: – 20 ~50 ℃; humidity: < 95% RH without condensation |
| Charging time: | <6h |
| Alarm point | Adjustable |
| Power | 3.7V-2000mAh lithium-ion chargeable battery |
| Security Level | Ex ib ⅡC T4 Gb |
| Explosion proof number | CNEx22.7622X |
| Weight | 300g |
| Size | 169mm × 69mm × 30mm (excluding probe) |
TAG: otywell gas leak detector， ch4 gas detector , pmp gas detector
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
Note: Not all gases and range are listed, if you need more information, please contact us.
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
Note: Not all gases and range are listed, if you need more information, please contact us.
