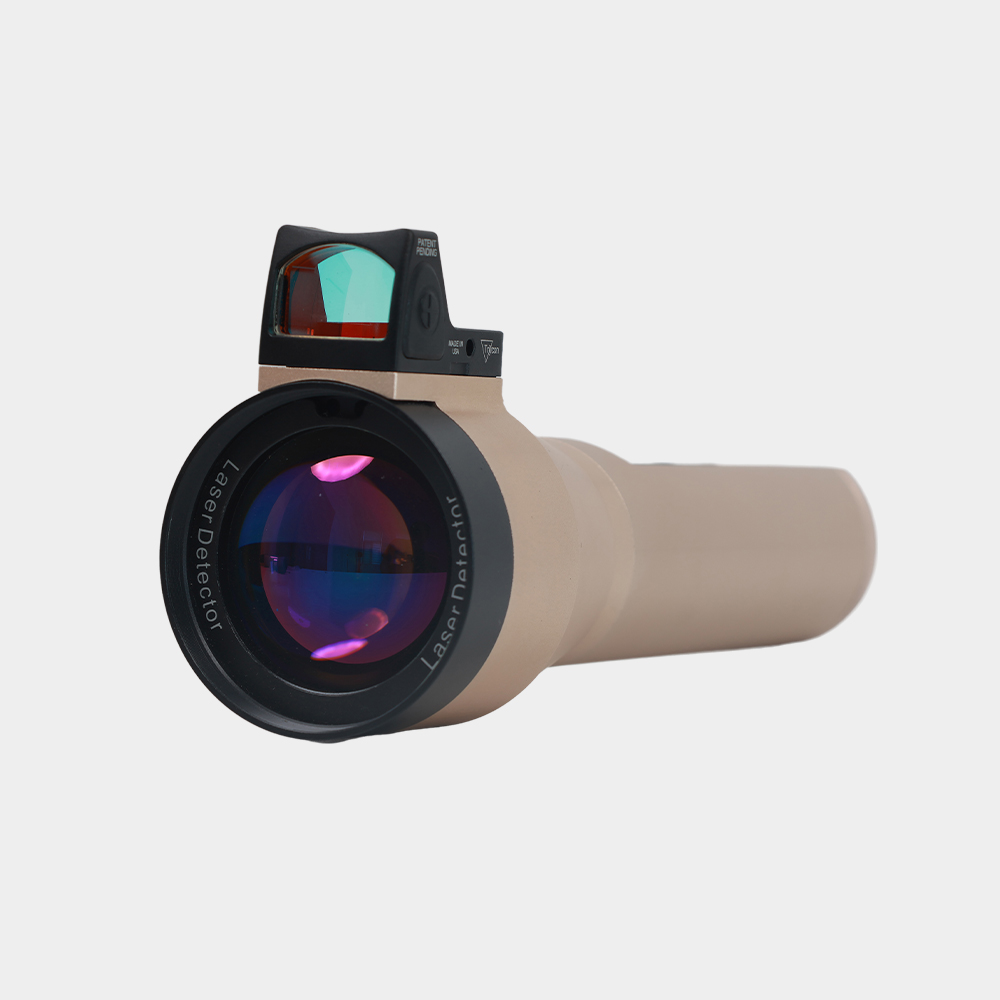

G6000AS Flashlight Laser Methane Remote Detector

Description

The G6000AS flashlight laser methane telemeter consists of an optical-mechanical system, a signal processing system, a display and alarm system, and a shell assembly. It is mainly used to measure the concentration of methane or methane-containing gas (natural gas, gas or similar gas) at a long distance, and can be widely used for rapid positioning and detection of gas pipelines.
The G6000A laser methane telemeter emits a beam of infrared laser to the detection point, which can quickly measure the concentration of the air mass between the detection point and the telemeter. For the convenience of observation, the telemeter also emits a beam of visible green laser to the detection point at the same time. This telemeter can detect the methane concentration value of the location in real time and accurately, and display and store it. When it exceeds the alarm value, it will sound and light alarm so that personnel can make subsequent disposal.

Functions Features

◆ Miniaturized design, easy to carry, lifespan up to ten years
◆ Millisecond-level rapid response, greatly shortens inspection time and improves work efficiency.
◆ PPM-level high sensitivity, gas leakage caused by early loosening of screws can also be detected in time.
◆ Non-contact detection, especially suitable for areas that are difficult for personnel to approach. Or at a high position from the ground.
◆ Can be detected through glass, which provides better protection for the personal safety of inspection personnel.
◆ Fingerprint characteristics, unique response to the measured gas, not interfered by other gases.
◆ No poisoning, drift, greatly increases the service life of the product.

Technical Parameters

Detection range: (0～5000、10000、50000、100000)ppm·m
Detection distance: (1～100)m、(1～80)m、(1～50)m、(1～30)m
Minimum detection limit: 5ppmm
Accuracy: +5%FS
Response time: 0.1s
Continuous working time: 8h
Power supply: lithium battery
Alarm display: The screen changes with the concentration value
Alarm volume: 260dB (1 meter)
Explosion-proof level: Ex ic IIC T4 Gb.Ex ibI IC T130℃ Dc
Working environment: Temperature: (-10~55) C Humidity: (0~95) %RH, no condensation:
Battery voltage: 7.4V 3000mAh
Explosion-proof certificate number: CNex22.7675X
