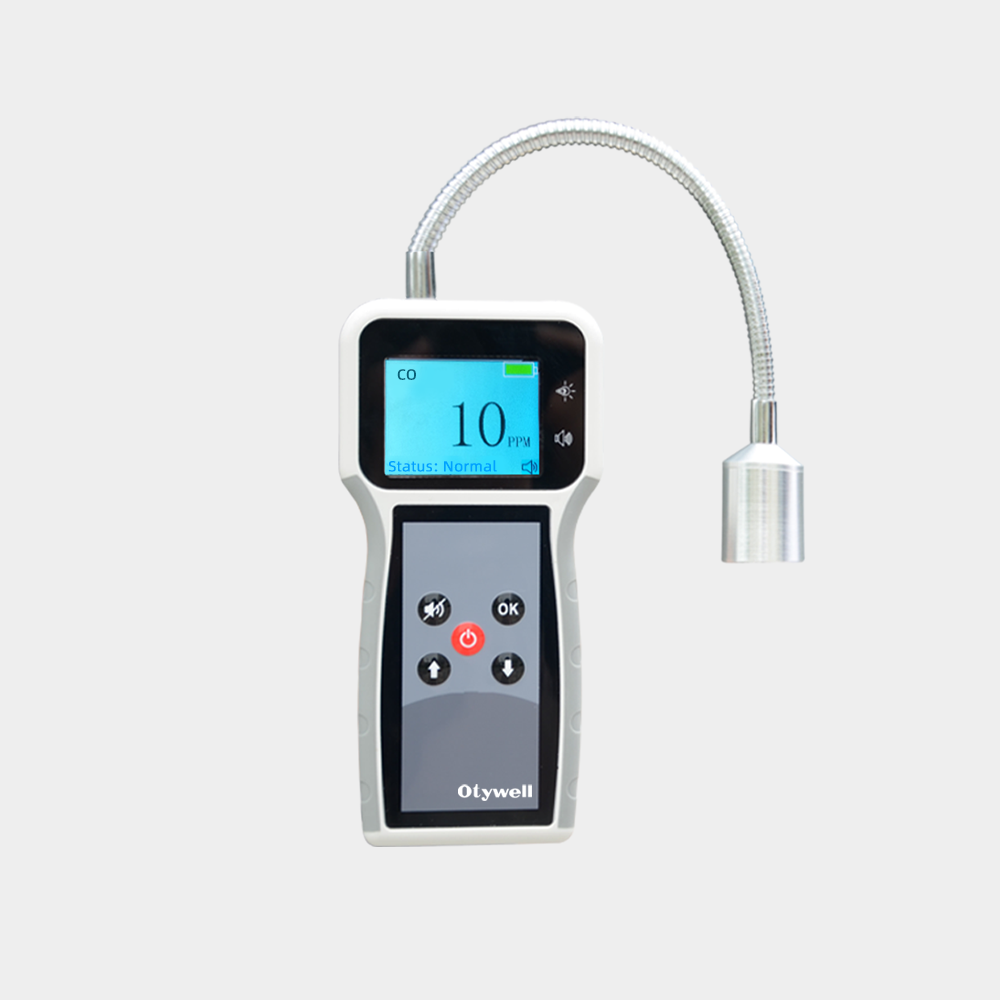

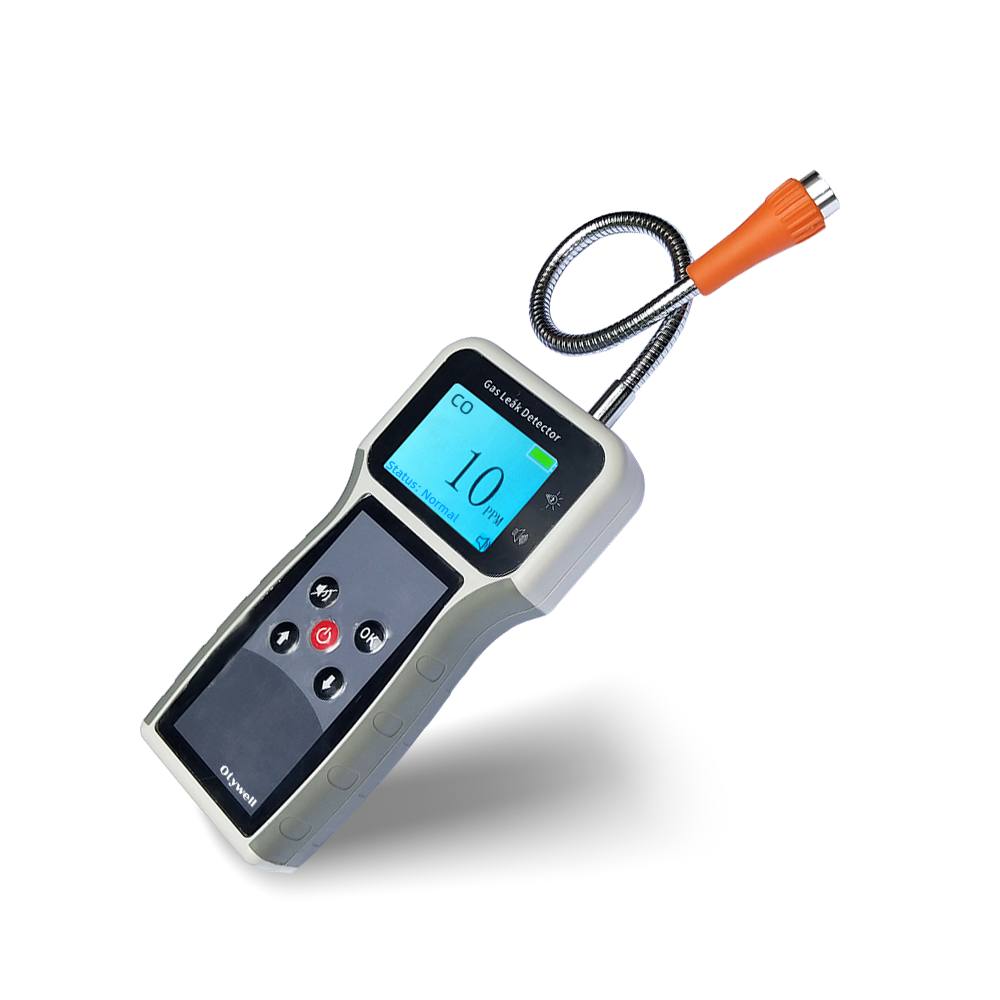

G20 Portable Gas Leak Detector
The G20 portable gas detector features a comfortable feel with Asian ergonomic design and comes with a flexible metal probe rod. Depending on the sensor type, it can detect combustible gases or toxic and hazardous gases with an accuracy of 1 ppm or 1% LEL.
The G20 portable gas detector can be used for:
Gas leak inspection in gas pipeline networks
Leak checks at modified parts of gas-powered vehicles
Leak testing at liquefied gas cylinder filling interfaces
Gas leak detection at pipe flanges in chemical plants
Locations requiring explosion-proofing and anti-poisoning measures.
Product Features:
◆ Original imported sensors
◆ Rapid detection of gas leak points
◆ Extended flexible probe with adjustable sensitivity
◆ Low voltage alarm and auto-shutdown
◆ Sensor fault detection and alarm
◆ Fast warm-up and quick response time
◆ Chinese color LCD display
◆ Functions include: alarm history query, alarm point setting, online zero drift compensation, password management, etc.
Technical Parameters:
◆ Detection Principle: Semiconductor, Catalytic, Electrochemical
◆ Sensitivity: 1 ppm / 1% LEL
◆ Detection Range: Varies by sensor type
◆ Safety Level: Ex ia IIB T3 Gb
◆ Operating Environment:
Temperature: -10°C to 50°C
Humidity: ≤95% RH (no condensation)
◆ Storage Environment:
Temperature: -40°C to 70°C
Humidity: ≤95% RH (no condensation)
◆ Response Time: <10 s
◆ Display: Color LCD
◆ Alarm Point: Adjustable
◆ Power Supply: 3.7V 2000mAh Rechargeable Lithium-ion Battery
◆ Standby Time:
Combustible Gas: >8 hours
Toxic Gas: Approx. 300 hours
◆ Weight: 400 g
◆ Dimensions: 163 mm × 78 mm × 27 mm (probe rod excluded)
Tags
Tag:marine gas detector, portable 5 in 1 gas monitor, pump suction gas detector, ATEX gas detector, confined space gas monitor, CO H2S O2 LEL detector, marine confined space gas tester, OEM gas detector, ship gas detection equipment, offshore multi gas analyzer
Note: Not all gases and range are listed, if you need more information, please contact us.
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
Note: Not all gases and range are listed, if you need more information, please contact us.
