Carbon Monoxide Gas Sensor
  1. Thumbnail
  2. Thumbnail
  3. Thumbnail

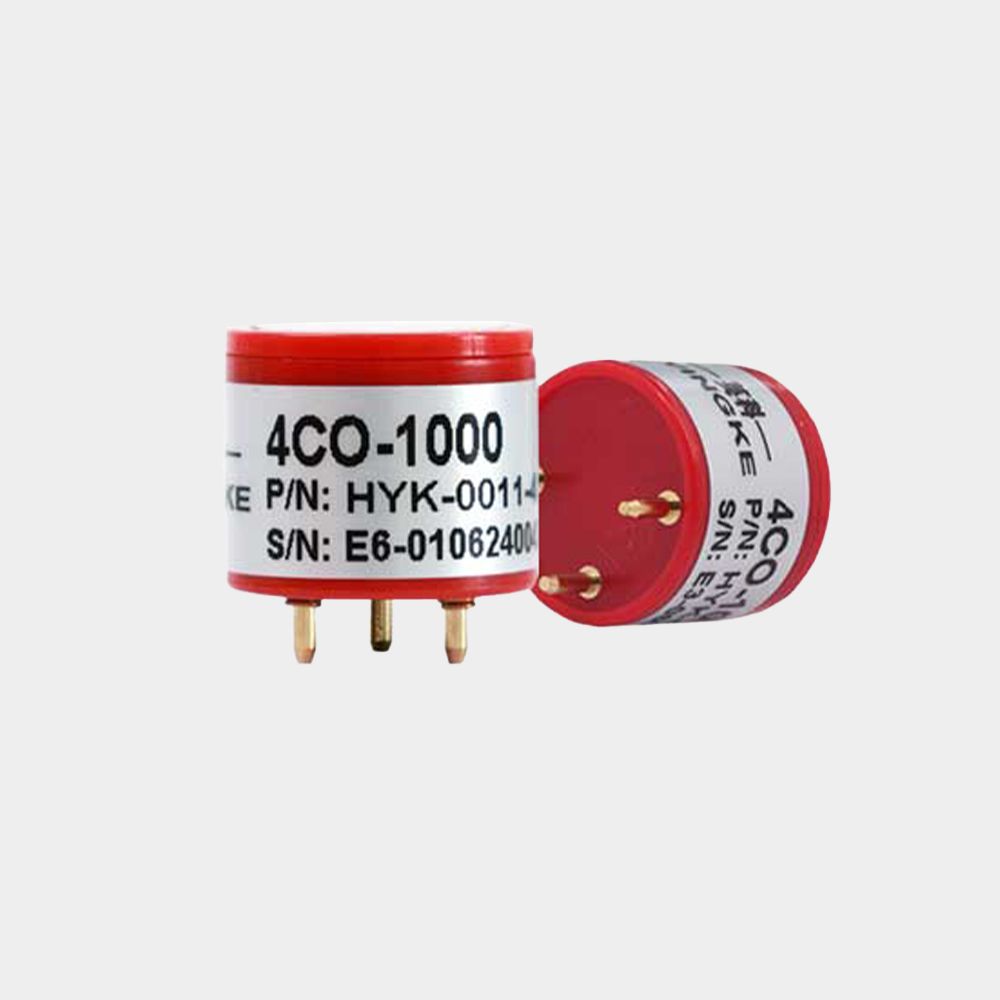

Carbon Monoxide Gas Sensor

● Good long-term stability
● High consistency and high precision
● Fast response speed
● Strong anti-cross interference ability,
● Good linearity
● Strong adaptability to harsh environments



TAG: otywell  gas sensor，O2 sensor ，H2S sensor，CO sensor,PID sensor, voc sensor



E-mail:inquiry@otywell-safety.com

Mobile/WhatsAPP:+8616692113216

Get Inquiry Send E-mail
  • Product Details

Description

Electrochemical Carbon monoxide gas sensor utilizes the electro-chemical activity of the gas under measurement to undergo elec-trochemical oxidation or reaction inside it, thereby converting the content of the gas under measurement into a current (or voltage) signal output to distinguish the composition and concentration of the gas.



Functions Features

  •  Good long-term stability
  • High consistency and high precision
  •  Fast response speed
  • Strong anti-cross interference ability,
  • Good linearity
  • Strong adaptability to harsh environments

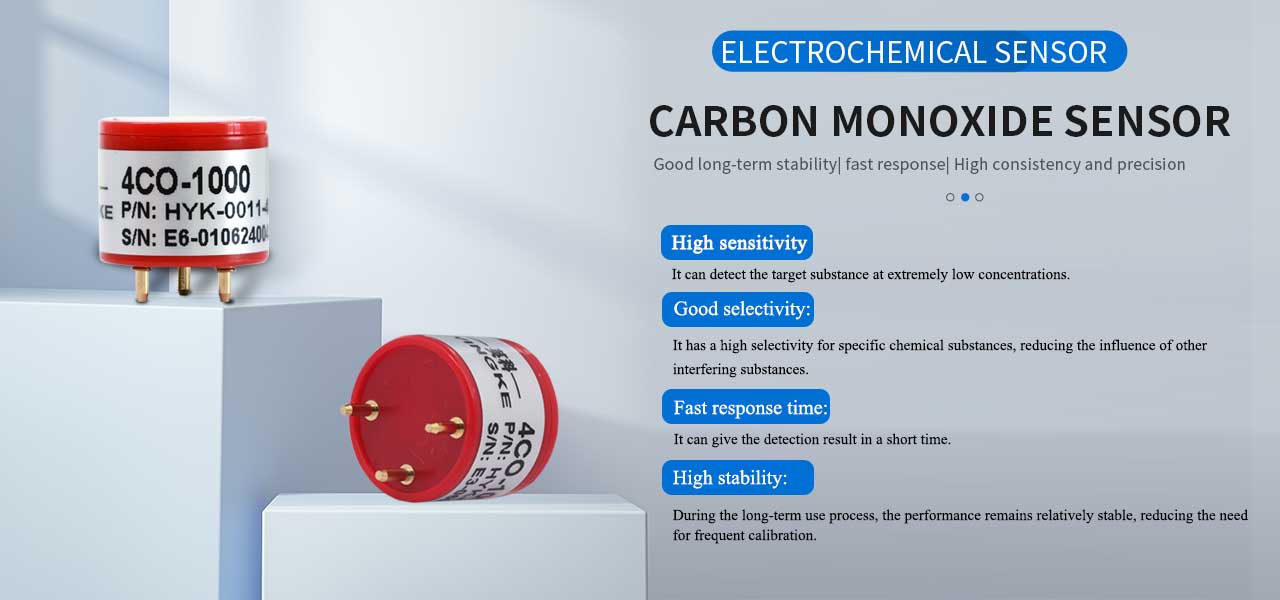

High Sensitivity

It Can Detect The Target Substance At Extremely Low Concentrations.

Good Selectivity

It Has A High Selectivity For Specific Chemical Substances, Reducing The Influence Of Other Interfering Substances.

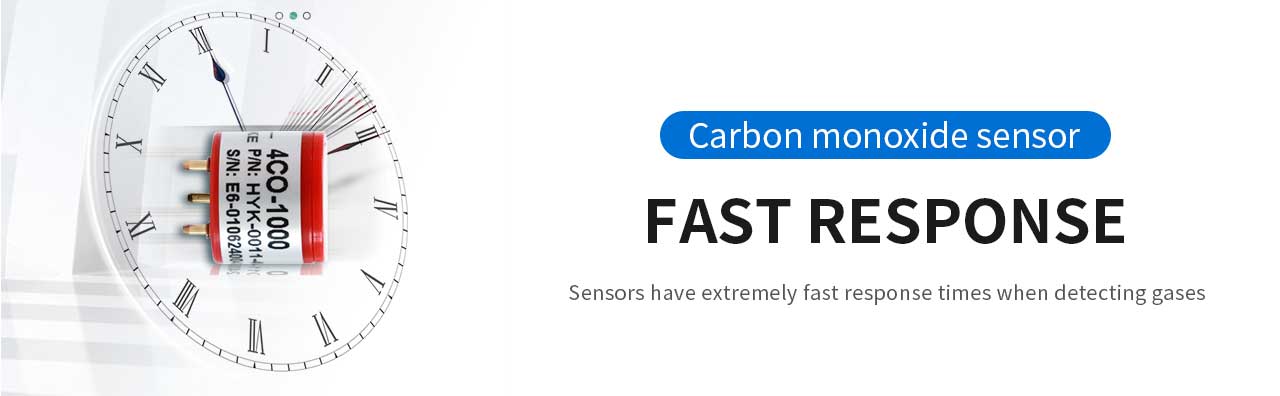

Fast Response Time

It Can Give The Detection Result In A Short Time.

High Stability

During The Long-term Use Process, The Performance Remains Relatively Stable, Reducing The Need For Frequent Calibration.

Technical Parameters

Detection gas Carbon monoxide CO
Sensitivity 70±20nA/ppm
Typical baseline range (pure air) ±2ppm CO equivalent
T90 response time <30 seconds
Range 0-2000ppm
Maximum load 5000ppm
Linear range 0-2000ppm
Repeatability +2%ppm CO equivalent
Recommended load resistance 10Ω
Operating temperature range -30- + 50°C
Pressure range 800-1 200mbar
Humidity range 1 5% – 95%RH
Long-term output drift < 5% per year
Storage temperature 0- -20℃
Expected working life > 24 months
Warranty period 12 months
2000ppm maximum current 0.3mA
Maximum 0/C voltage 1.3V
Maximum S/C current < 1A

TAG: otywell  gas sensor，O2 sensor ，H2S sensor，CO sensor,PID sensor,voc sensor



E-mail:inquiry@otywell-safety.com

Mobile/WhatsAPP:+8616692113216

Note: Not all gases and range are listed, if you need more information, please contact us.

Common Gas Parameter listing
Gas detected Measuring Range Optional Range Resolution Rat Response Time
LEL -combustible gas 0-100%LEL 0-100%VOL（Infrared or catalytic ） 1%LEL/1%vol ≤10s
 carbon monoxide 0-1000PPm 0-500/2000/5000PPm 0.1/1PPm ≤10s
TVOC 0-100PPM 0-100PPM 0.1PPm/1PPM ≤15s
hydrogen 0-100%LEL 0-1000PPM 1%LEL/1PPM ≤15s
natural gas 0-100%LEL 0-100%LEL 1%LEL ≤10s
Oxygen-O2 0-30%VOL 0-30%、0-100%VOL 0.1%vol ≤10s
ozone 0-10PPm 0-20、100PPm 0.01PPm/0.1PPM ≤15s
hydrogen sulfide-H2S 0-100PPm 0-50、200、1000PPm 1/0.1PPm ≤10s
Methane-CH4 0-100%LEL 0-100%VOL 1%LEL/1%vol ≤10s
fluorine 0-10PM 0-1、10PPM 1/0.1PPm ≤15s
hydrogen chloride 0-20PPm 0-20/50PPm/100PPM 0.01/0.1PPm ≤15s
Nitrogen-N2 0-30%VOL 0-30%VOL、100%VOL 0.1%LEL/1PPM ≤10s
hydrogen 0-100%LEL 0-1000PPm 1%LEL/0.1PPm ≤15s
chlorine 0-20PPm 0-10、100PPm 0.1PPm ≤15s
ammonia gas 0-100PPm 0-50、500、1000PPm 1/0.1PPm ≤15s
oxynitride 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
methanal 0-20PPm 0-50、100PPm 1/0.1PPm ≤15s
sulfur dioxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
nitric oxide 0-250PPm 0-500、1000PPm 1PPm ≤15s
nitrogen dioxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
 phosphine 0-20PPm 0-20、100PPm 0.1PPm ≤15s
acrylonitrile 0-100PPM 0-100PPm 0.1/1PPm ≤15s
carbon dioxide 0-5000PPm 0-1%/5%/10%VOL(Infrared ) 1PPM/0.01%VOL ≤15s
hydrogen fluoride 0-10PPm 0-1、10、50、100PPM 0.01/0.1PPm ≤15s
Xylene/methylbenzene 0-20PPm 0-5、10、50、100PPm 0.01/0.1PPm ≤15s
oxirane 0-100PPm 0-100PPm 1/0.1PPm ≤15s
For other gases and measuring ranges, please contact us directly!

Note: Not all gases and range are listed, if you need more information, please contact us.
