Description

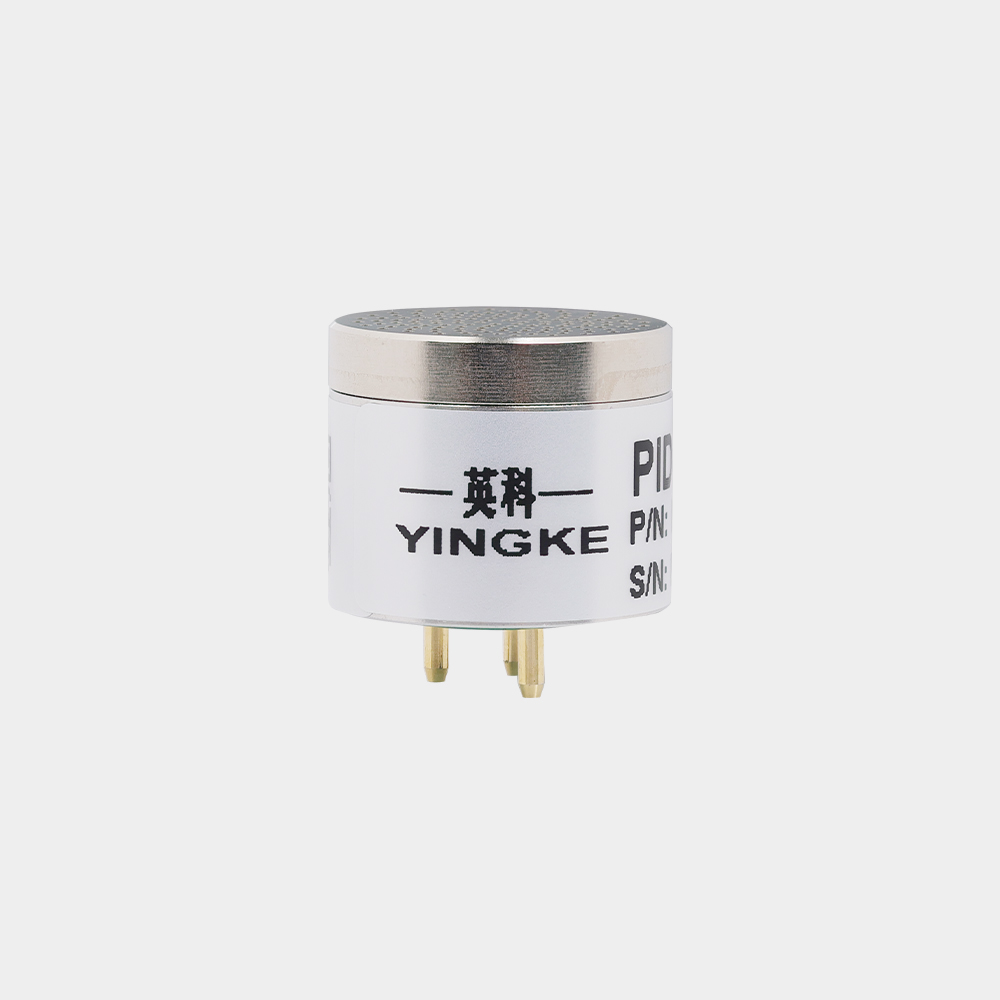

The high-performance photoionization PID sensor is a sensor with high sensitivity, wide range and broad spectrum. It can detect thousands of volatile organic compounds (VOCs) and some inorganic vapors in different application fields, and can provide a detection range of up to 10,000 ppm and a detection limit of as low as 1 ppb. It has extremely fast response speed and extremely high resolution. It can be used in various handheld portable and on-site fixed instruments and meters, and can also be applied to multiple types of analytical instruments.
Functions Features
- Fast response and recovery time
- High stability

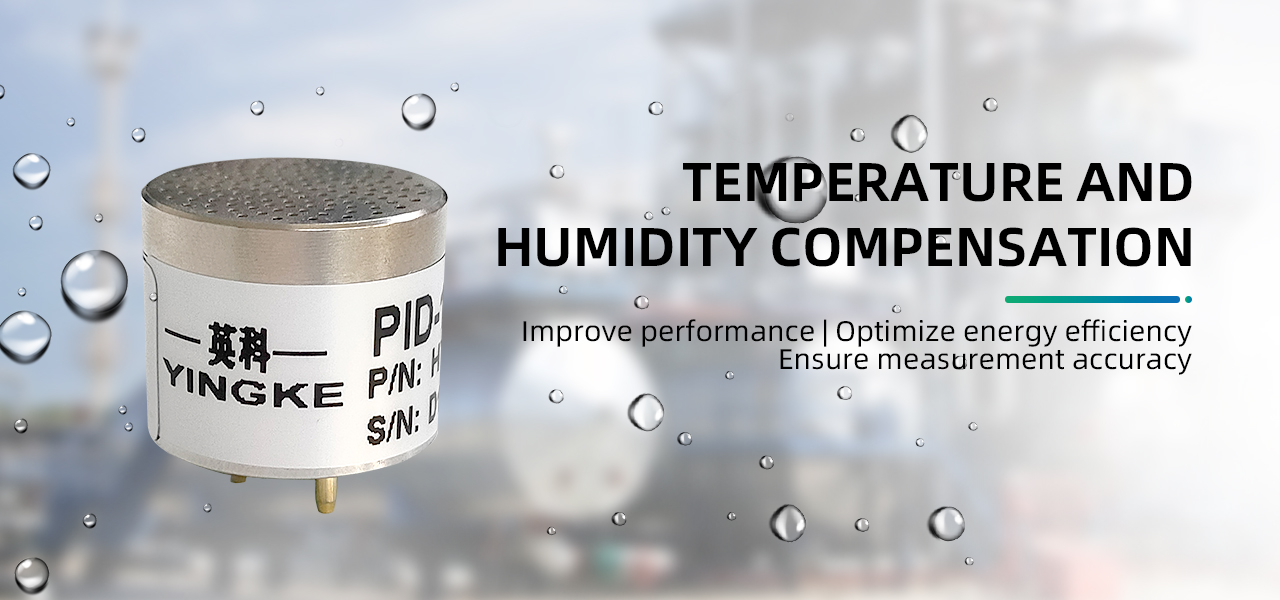

- Robust at humidity and temperature extremes
- Meets sensor requirements outined in: AQ6205-2006 and EN5544

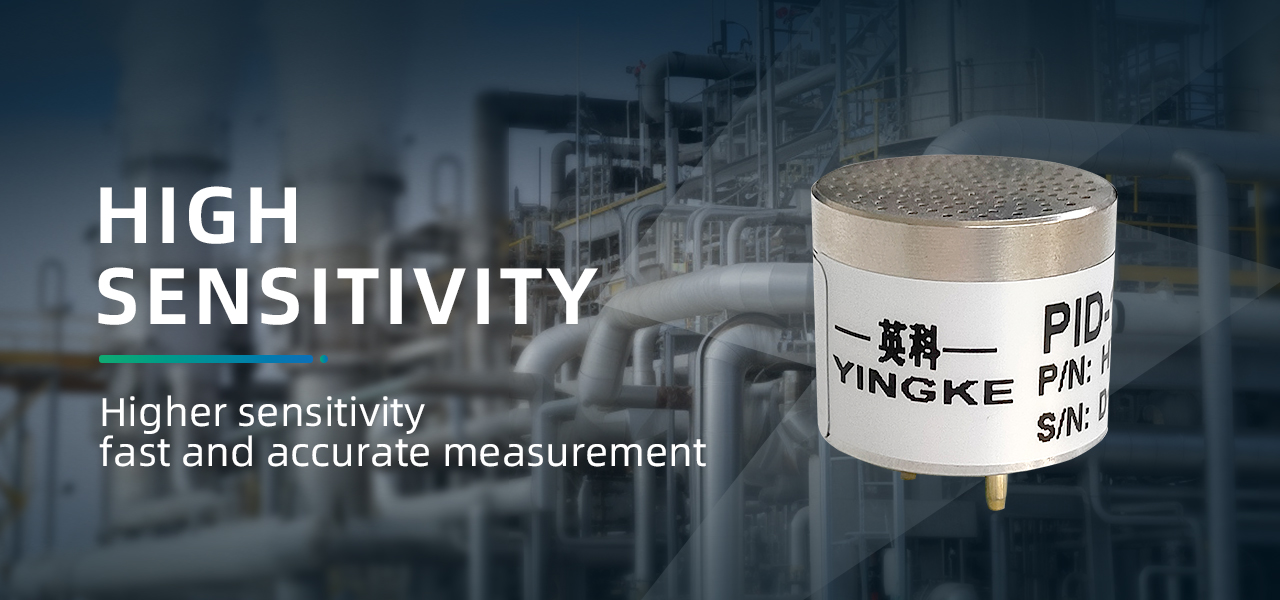

- HIGH SENSITIVITY
- WIDE-RANGE

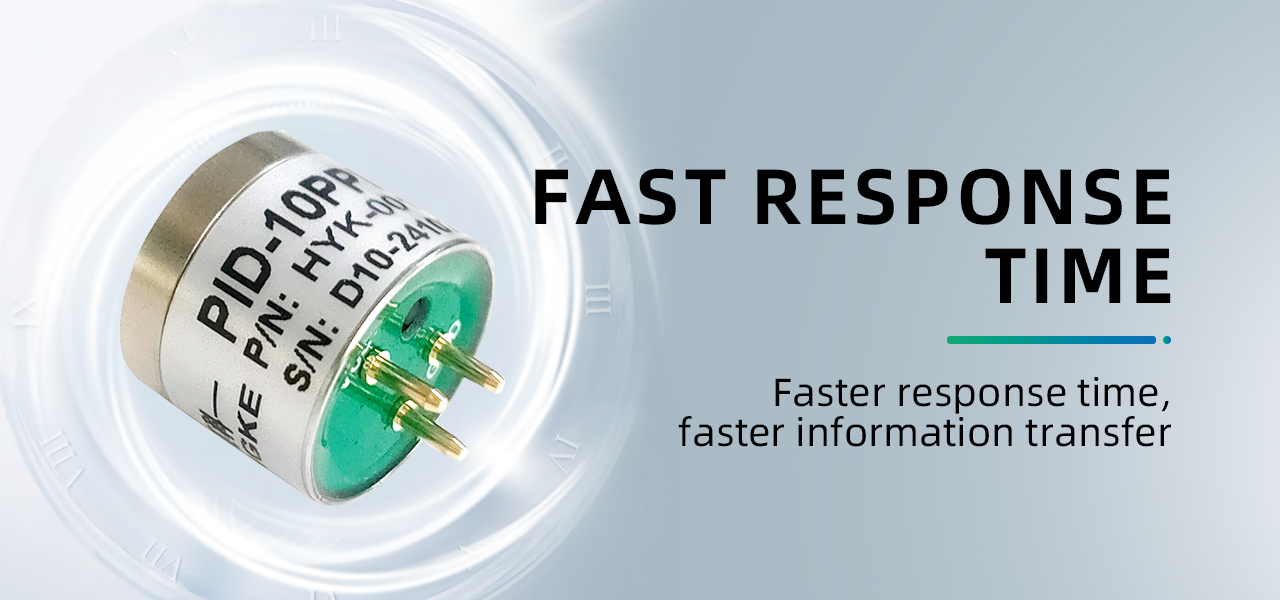

- FAST RESPONSE TIME
- HIGH STABILITY
- LONG SERVICE LIFE
- INTERNATIONAL HIGH-END TECHNOLOGY
Technical Parameters
Li range | 10ppm | 50ppm | 100ppm | 1000ppm | 5000ppm | 10000ppm |
Resolution | 1ppb | 10ppb | 25ppb | 250ppb | 1ppm | 2ppm |
sensitivity | >40mV/ppm | >20mV/ppm | >5mV/ppm | >1mV/ppm | >0.3mV/ppm | >0.1mV/ppm |
Detection gas | VOC, energy ≤10.6eV volatile gas | |||||
Operating voltage | 3.2~5.5V | |||||
Zero voltage | Uo>50mV | |||||
Output signal voltage | 0.02~2.5V(Max3.0V) | |||||
Response time (T90) | ≤ 5s | |||||
Operating temperature | -40~60°C | |||||
Fineness | ≤±2% calibration point | |||||
humidity | 0~99% no condensation | |||||
Working pressure | 800~1200mbar | |||||
Storage temperature | 0~25°C | |||||
Quality assurance | twelve | |||||
TAG: otywell gas sensor，O2 sensor ，H2S sensor，CO sensor,PID sensor,voc sensor
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
Note: Not all gases and range are listed, if you need more information, please contact us.
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
Note: Not all gases and range are listed, if you need more information, please contact us.
