Description

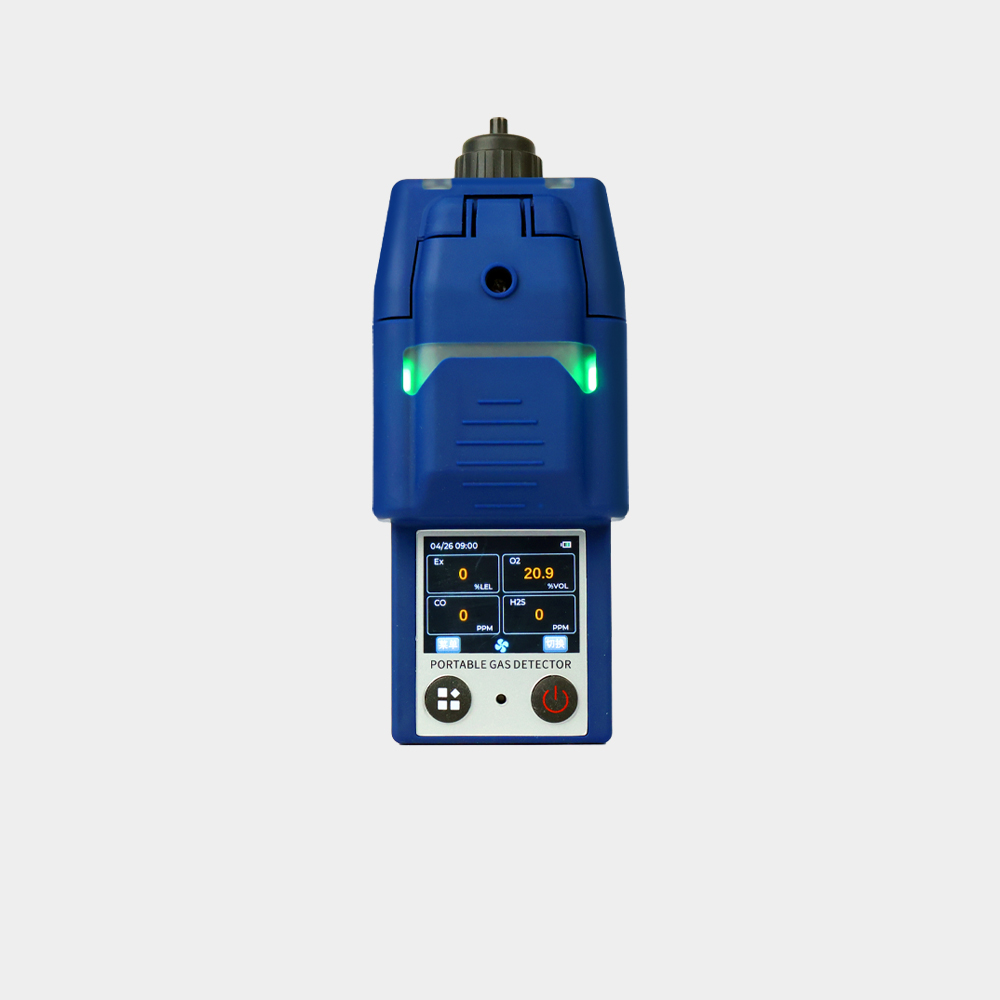

The BTYQ-A119 portable gas detection alarm is a highly sensitive industrial gas detection alarm. It is suitable for gas concentration detection in industrial and commercial places: gas detection in gas stations, chemical workshops, hazardous chemical warehouses, petroleum and petrochemical places, laboratories and other places. It can effectively ensure that the life safety of staff is not violated and production equipment is not lost. The product can detect different gases according to different sensor types. The product is small in size, simple to operate, easy to carry and has good vibration resistance. The product adopts high-resolution dot matrix LCD display technology, and the display is more intuitive and clear.
The detection alarm can adopt pump suction or natural diffusion detection method. The sensitive element adopts high-quality gas sensor with excellent sensitivity and excellent repeatability; the instrument adopts embedded microcomputer control, which is simple to operate, fully functional, highly reliable, and has multiple adaptive capabilities; the small and beautiful portable design not only makes you love it, but also makes it easier for you to use it on the move. The outer shell of the detector is made of high-strength engineering plastics and composite anti-slip rubber. It has high strength, good feel, and is waterproof, dustproof and explosion-proof.
Functions Features
Technical Parameters
| methane | oxygen | carbon monoxide | hepatic gas | |
| Sensor type | Catalytic combustion type | Electrochemical formula | Electrochemical formula | Electrochemical formula |
| measuring range | （0～100）%LEL | （0～30）% | （0～1000）µmol/mol | （0～100）µmol/mol |
| Level 1 alarm point | 20%LEL | 19.5% | 50µmol/mol | 15µmol/mol |
| Level 2 alarm point | 50%LEL | 23.5% | 150µmol/mol | 35µmol/mol |
| indicating error | ±5%FS | ±3%FS | Absolute error: ±5 µmol/mol; Relative error: ±10%; one of the above is sufficient | ±2µmol/mol or ±10% (either is acceptable) |
Note: Only the detailed parameters of four conventional gases are displayed, please refer to the gas parameter table or consult customer service for other gases!
- Suitable for gases: combustible/toxic and harmful gas/oxygen, etc
- Sampling method: pump suction or natural diffusion
- Display mode: LCD display
- Response time: less than 30s
- Environmental temperature: -25℃~+55℃
- Relative humidity: (20~93)%
- Power supply voltage: DC 3.7 V
- Battery capacity: 3000 mAh lithium ion rechargeable battery
- Charging time: <5 h
- Working time: ≥ 8 h (continuous)
- Explosion-proof certificate number: CCRI 24.2663X
- Explosion-proof mark: Ex ia ⅡC T4 Ga; Ex ia ⅢC T200130℃ Da
- Protection class: IP66 or above
- Pressure limit: 86kPa~106kPa
- Product weight: approximately 265g

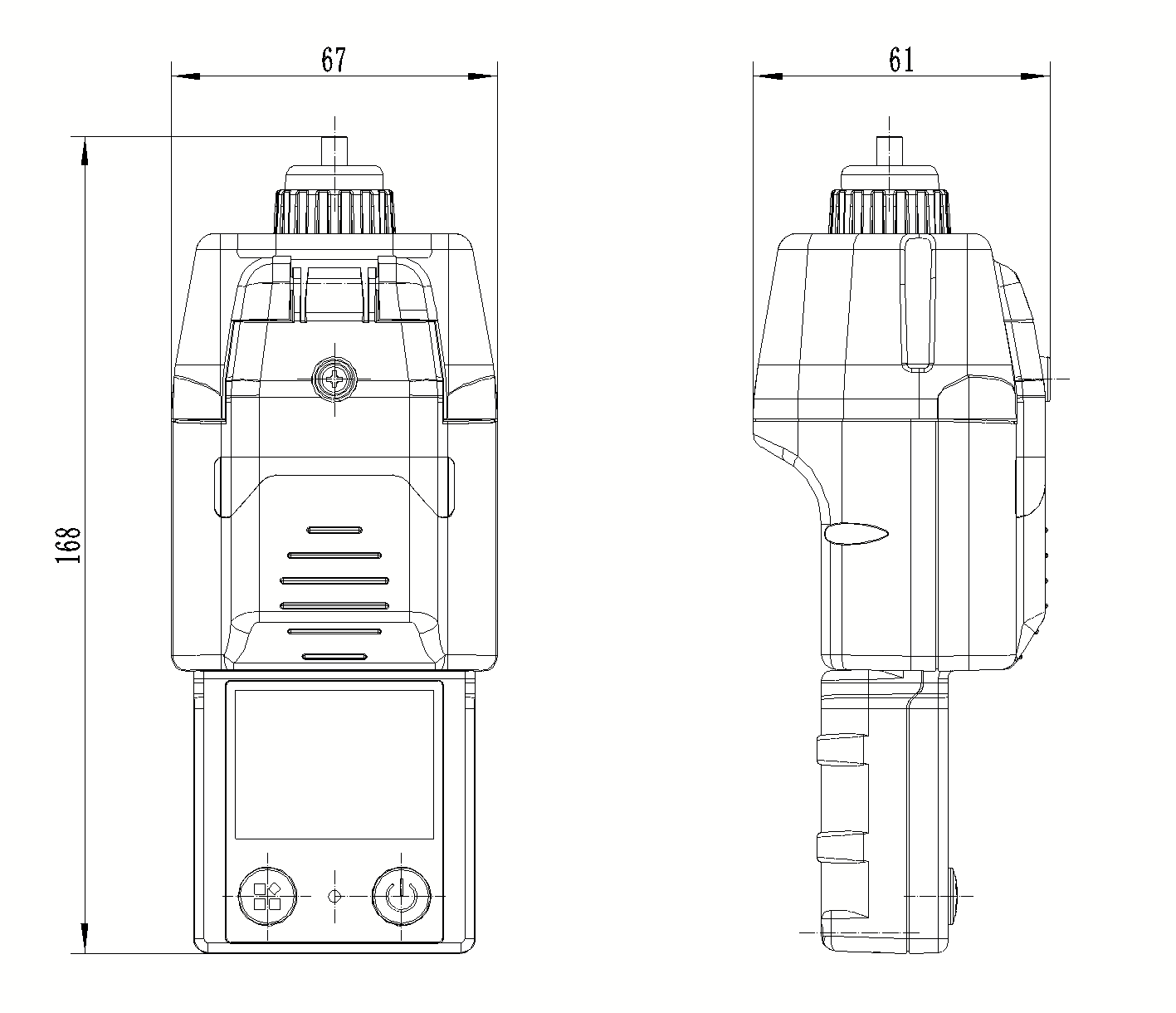

- Product size: L 168 mm x W 67 mm x H 61 mm
