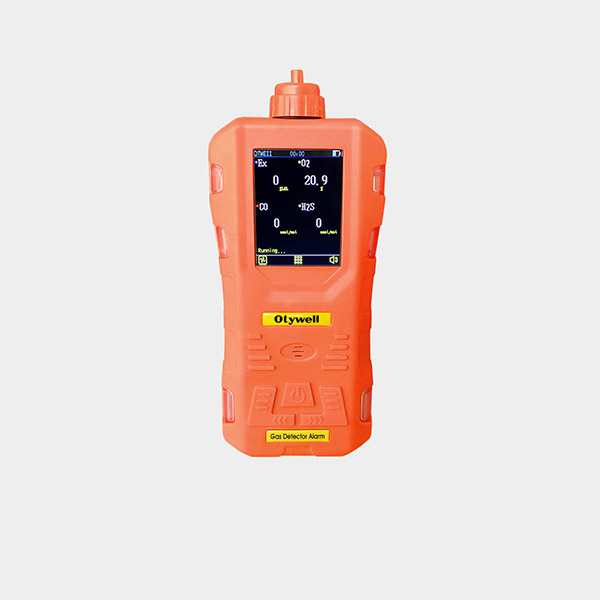

OT135 Pump Suction Gas Detector Alarm

Description

OT135 pump-suction gas detector is an all-in-one gas detector that can continuously measure combustible, O2, CO, H2S and other toxic gases in ambient air. It can detect up to 5 gases at the same time. The waterproof design of the instrument is combined with a rubber shell to meet the most demanding requirements of harsh environments.

The detector uses a pump-suction method to detect gas, and the sensitive element uses a high-quality gas sensor with excellent sensitivity and excellent repeatability; the instrument uses an embedded microcomputer control, which is simple to operate, fully functional, highly reliable, and has multiple adaptive capabilities. It uses a graphic LCD display, which is intuitive and clear.

Key Features

☆ Adopt 2.4-inch high-definition full-color IPS industrial screen
☆ Display various technical indicators and gas concentration values
☆ Asian ergonomic design
☆ The shell adopts high IP encapsulation technology
☆ High-performance imported sensor
☆ Can detect 1–4 gases at the same time, any combination of sensors
☆ Can be customized to detect 5 gases at the same time
☆ With data storage function, can store 1000 data
☆ Dust-proof, explosion-proof and waterproof design
☆ Intrinsically safe circuit design, anti-static and electromagnetic interference
☆ The instrument is about 400g
☆ Optional sampling probe and its catheter
☆ Built-in high-power carbon film self-priming pump, extremely fast response time
☆ Freely adjust the setting time and alarm function



TAG: otywell  gas detector ,h2s gas detector ,OT135 multi gas detector ,pump gas detector,portable 5 in 1 gas monitor,ATEX gas detector, confined space gas monitor, CO H2S O2 LEL detector, marine confined space gas tester, OEM gas detector, ship gas detection equipment, offshore multi gas analyzer



E-mail:inquiry@otywell-safety.com

Mobile/WhatsAPP:+8616692113216

Technical Parameters

◆ Suitable gases: combustible/toxic/hazardous gases/oxygen, etc.

◆ Detection principles: catalytic combustion type, electrochemical type, infrared type, laser type, semiconductor type, etc.

◆ Detection method: Built-in pump suction type

◆ Measurement range: (0–100)%LEL (flammable); (0–100)µmol/mol (toxic), etc. (depending on gas type)

◆ Resolution: 1% LEL, 1 µmol/mol, 0.1 µmol/mol/%VOL

◆ Accuracy grade: ±3%FS (flammable/oxygen); ±5%FS (toxic)

◆ Lower limit alarm setting: 20% LEL (flammable)

◆ Upper limit alarm setpoint: 50% LEL (flammable)

◆ Display mode: LCD

◆ Response time: ≤30s

◆ Environmental temperature: -25°C to +55°C

◆ Relative humidity: (20～93)%

◆ Power supply voltage: DC 3.7 V

◆ Battery capacity: 1800 mAh + 1300 mAh lithium-ion rechargeable battery

◆ Charging time: <5 h

◆ Standby time: ≥8 h

◆ Pressure limit: 86 kPa to 106 kPa

◆ Product dimensions: L 164 mm × W 78 mm × H 50 mm

◆ Product weight: approximately 400 g

◆ Standard hose: 60 cm

◆ Explosion-proof certificate number: CLEx24.1024

◆ Explosion-proof rating: Ex ia ⅡC T4 Ga; Ex ib ⅢC T130℃ Db

◆ Protection rating: IP65



TAG: otywell  gas detector ,h2s gas detector ,OT135 multi gas detector ,pump gas detector,portable 5 in 1 gas monitor,ATEX gas detector, confined space gas monitor, CO H2S O2 LEL detector, marine confined space gas tester, OEM gas detector, ship gas detection equipment, offshore multi gas analyzer



E-mail:inquiry@otywell-safety.com

Mobile/WhatsAPP:+8616692113216



Note: Not all gases and range are listed, if you need more information, please contact us.

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!



Note: Not all gases and range are listed, if you need more information, please contact us.
