Description

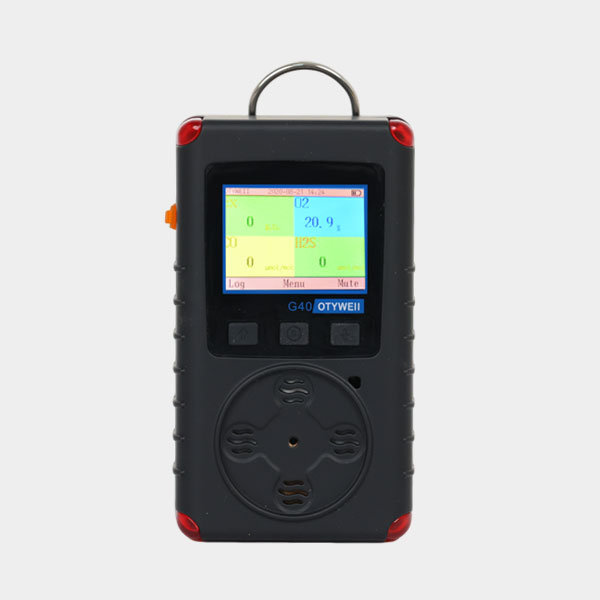

The G40 multi-gas detector adopts color display technology and full Chinese friendly interface operation. It is a detection instrument that can be configured with a single gas or multiple gas sensors, single, two-in-one, three-in-one, four-in-one, five-in-one or Choose four toxic gas sensors for detection.
The G40 multi-parameter detector has high sensitivity and fast response time. It can upload computer query records and audio sound and light alarm prompts, which can adapt to concentration monitoring in more complex environments. The product is suitable for chemical, pharmaceutical, municipal, water treatment, telecommunications, archaeology, laboratories, cold storage, wine making and other places.
Key Features
- Carry light, sound, light, vibration alarm indication
- Color English digital display
- Power-on self-test
- Upload computer function (optional)
- Simple product use, alarm record query
- Support 5 kinds of gas real-time detection (must be customized)
Technical Parameters
- Applicable Gases: Combustible gases, toxic & harmful gases, oxygen, etc.
- Detection Principles: Catalytic bead, electrochemical, infrared, laser, semiconductor, etc.
- Sampling Method: Free diffusion
- Measuring Ranges: (0～100) %LEL (combustible gas); (0～100) μmol/mol (toxic gas), subject to gas type
- Resolution: 1%LEL, 1 μmol/mol, 0.1 μmol/mol, %VOL
- Accuracy Class: ±3%FS (combustible gas / oxygen); ±5%FS (toxic gas)
- Low Alarm Setpoint: 20%LEL (combustible gas)
- High Alarm Setpoint: 50%LEL (combustible gas)
- Display Type: LCD liquid crystal display
- T90 Response Time: ≤30 s (combustible gas), subject to gas type
- Ambient Temperature: −25℃ ~ +55℃
- Relative Humidity: 20～93% (non-condensing)
- Operating Voltage: DC 3.7 V
- Battery Capacity: 2000 mAh rechargeable lithium-ion battery
- Charging Time: 6 h ~ 8 h
- Continuous Operating Time: ≥8 h
- Operating Pressure Range: 86 kPa ~ 106 kPa
- Overall Dimensions: L 122 mm × W 68 mm × H 33 mm
- Product Weight: Approx. 210 g
- Explosion-proof Certificate No.: CLEx24.1023
- Explosion-proof Mark: Ex ia ⅡC T4 Ga; Ex ib ⅢC T130℃ Db
- Ingress Protection Rating: IP65
Tags
Tag:marine gas detector, portable 5 in 1 gas monitor, pump suction gas detector, ATEX gas detector, confined space gas monitor, CO H2S O2 LEL detector, marine confined space gas tester, OEM gas detector, ship gas detection equipment, offshore multi gas analyzer
TAG: otywell gas detectorh2s gas detector G10 multi gas detector
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
