Description

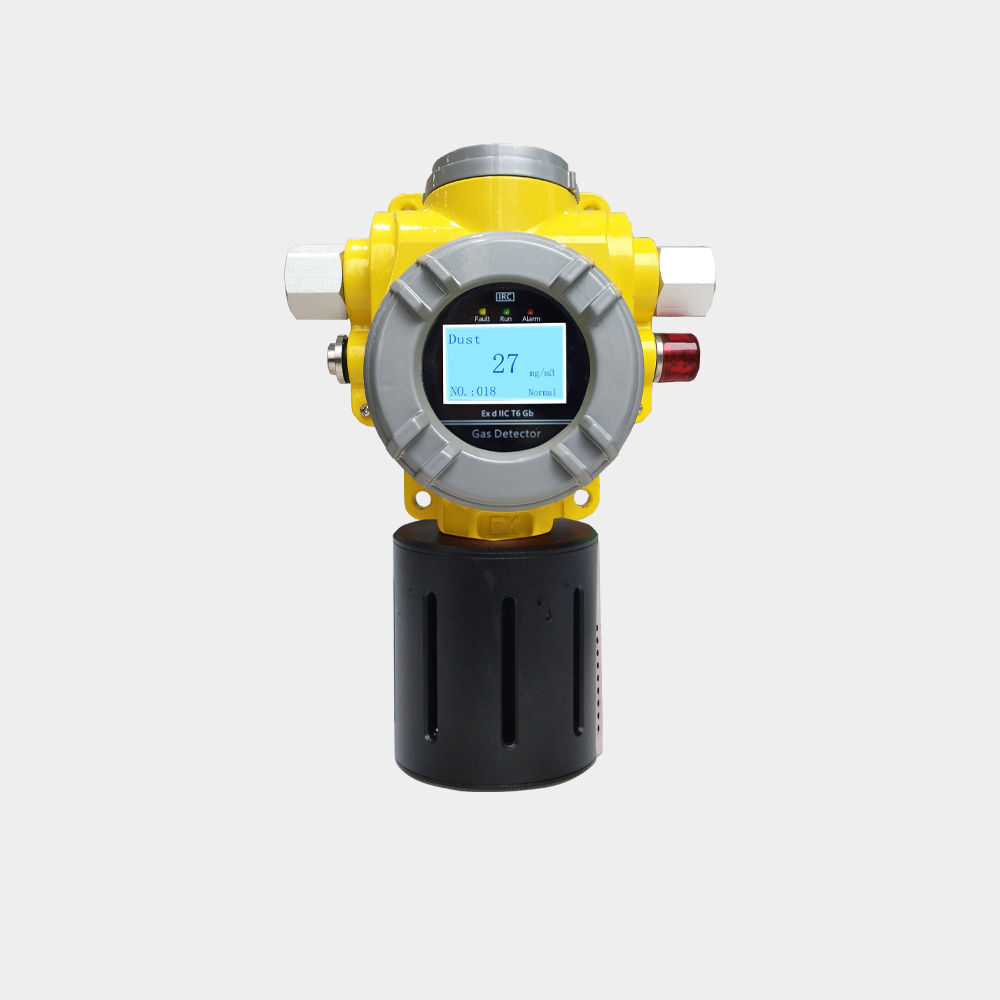

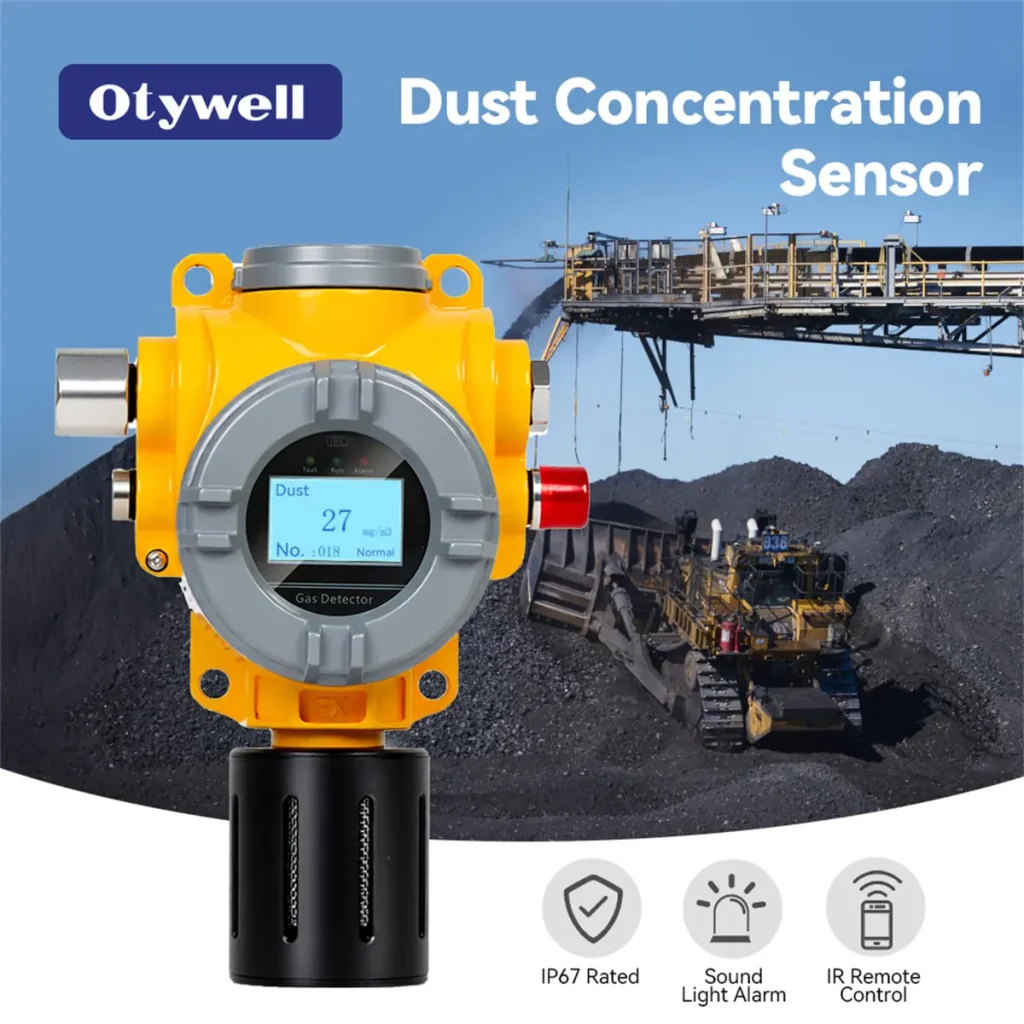

TCB1000 dust and gas detector uses infrared detection principle or laser detection principle to transmit dust particles in the use environment over long distances as electrical signals, and transmit the signals to the secondary instrument. This instrument can be directly uploaded to the computer or connected to the DCS system.
The dust and gas detector has the functions of on-site buzzer indication sound, flashing indicator light, etc., and real-time display and monitoring of on-site dust concentration.
The dust and gas detector can be used in chemical plant areas, smelting, papermaking, flour mills, coal mining plants, pharmaceutical workshops, petroleum refining, mining and electricity, fire protection and municipal administration, communications and other industrial environments that need to prevent dust explosions.
TAG: otywell Dust Detector，Fixed Dust Detector，Online Continuous Dust Monitor，Fixed Particulate Matter Detector
E-mail:inquiry@otywell-safety.com
Mobile/WhatsAPP:+8616692113216
product features
- Sound and light integrated alarm
- Accurate measurement: The sensor adopts imported gas sensitive elements, with high accuracy and small zero drift
- Wireless remote control technology
- Natural diffusion detection
- Two groups of switch signals
- Double cavity structure
Technical Parameters
| Detection principle | Laser detection |
| Detection gas | Dust |
| Sampling method | Naturally aspirated |
| Measurement range | pm2.5/pm10, 1ug / m³ ～ 1000ug / m³; 1mg / m³ ～ 1000 mg / m³; (other optional) |
| Resolution | 1ug / m³; 1mg / m³ |
| Detection error: | ± 10% FS of full scale |
| Status indication | LCD indication |
| Debug mode | Remote control |
| Response time | <20s |
| Recovery time | <30s |
| Ambient temperature | -20 ℃ ~ 55 ℃ |
| Relative humidity | ≤95% RH |
| Working voltage: | DC24V ± 10% |
| Explosion-proof grade | Exd ib IIC T6 Gb |
| Output signal | 4 ~ 20mA / RS485 |
