Beschreibung

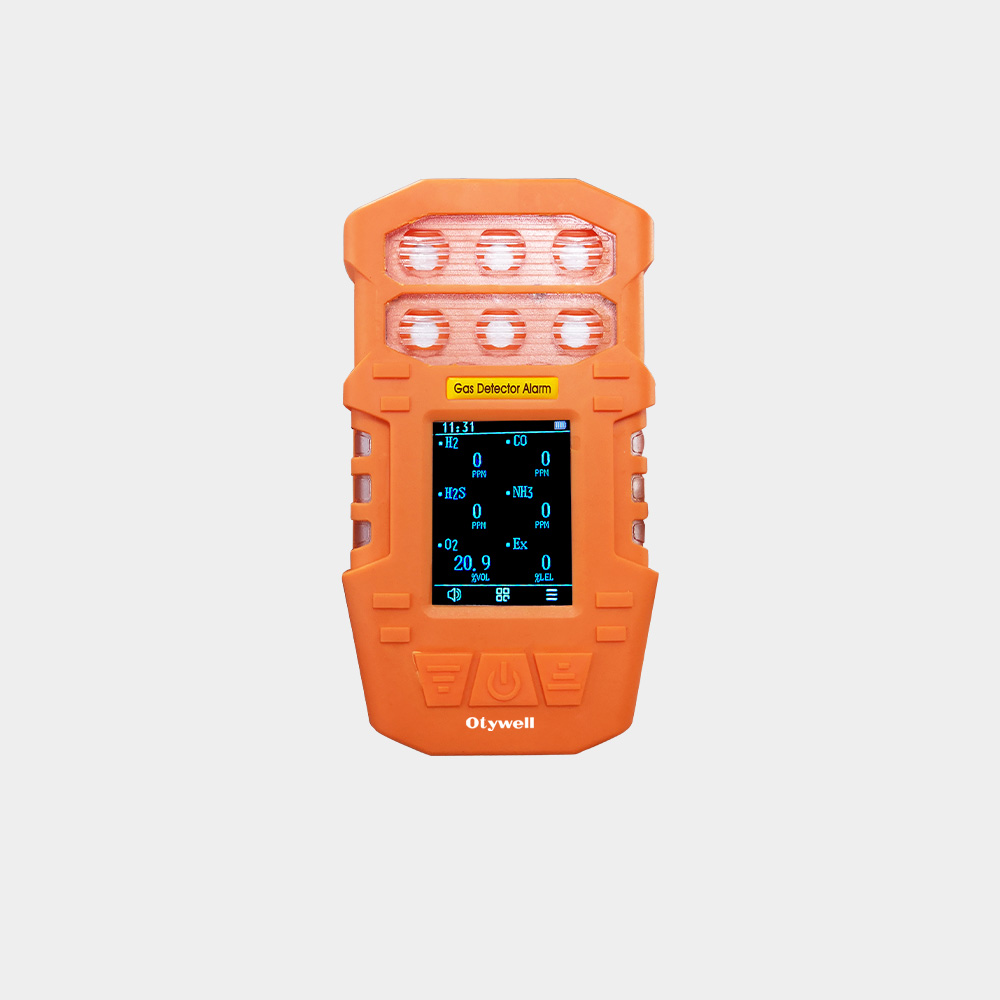

The OT137 multi-gas alarm instrument adopts color liquid crystal display technology, and can detect 1 Zu 6 kinds of gases simultaneously. Different gas sensors can be configured for detection. The S318 multi-gas alarm instrument is equipped with audio, sound and light, and vibration alarm prompts, and the real-time concentration display can adapt to concentration detection in a more complex environment. This product is suitable for a variety of industrial manufacturing places such as chemical and pharmaceutical, municipal, water treatment, telecommunications, archaeology, laboratories, cold storage, brewing, steel, gas, usw.
The OT137 multi-gas detector adopts a large-capacity rechargeable lithium-ion battery, and this machine can simultaneously and real-time display the concentrations of up to 6 gas types, which is an essential detection tool for work safety supervision and inspection.
Funktionen Funktionen
-
2.4 inch high definition full-color view IPS industrial screen
-
Gas concentration values display
-
Can detect 6 channels gas or up to 7 gases at the same time
-
Data storage function
-
Dust-proof, explosionssicheres und wasserdichtes Design
-
Intrinsically safe circuit design, antistatic and electromagnetic interference
- Setting time and alarm function can be adjusted freely

Technische Parameter
| Erkennungsprinzip | Electrochemistry/catalysis/thermal conductivity/infrared/PID |
| Sampling mode | Natural diffusion or optional(Special card self-priming pump) |
| Measurement error | ≤3%FS |
| Interface definition | U3-Port (USB) |
| Anzeige | Color LCD |
| Alarm | Sound/light/vibration, three level alarm |
| Working time | > 8H |
| Environment temperature | (-10~55)℃ |
| Environment humidity | ≤93 % relative Luftfeuchtigkeit |
| Leistung | 3.7V 3500mA Lithium-ion rechargeable battery |
| Explosion proof grade |
Ex ia IIC T4 Ga;Ex ib IIIC T130°C Db
|
| Explosionsgeschützte Nummer | CLEx24.1020 |
| Ingress protection | IP65 |
| Gewicht | 400G |
| Größe | (160×90×36)mm |
| Auflistung allgemeiner Gasparameter | ||||
| Gas erkannt | Messbereich | Optionaler Bereich | Auflösungsratte | Ansprechzeit |
| UEG – brennbares Gas | 0-100%UEG | 0-100%VOL (Infrarot oder katalytisch) | 1%UEG/1 % Vol | ≤10s |
| Kohlenmonoxid | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| Wasserstoff | 0-100%UEG | 0-1000PPM | 1%UEG/1PPM | ≤15s |
| Erdgas | 0-100%UEG | 0-100%UEG | 1%UEG | ≤10s |
| Sauerstoff-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%Bd | ≤10s |
| Ozon | 0-10PPm | 0-20、100PPm | 0.01PPm/0,1PPM | ≤15s |
| Schwefelwasserstoff-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methan-CH4 | 0-100%UEG | 0-100%VOL | 1%UEG/1 % Vol | ≤10s |
| Fluor | 0-10PN | 0-1、10PPM | 1/0.1PPm | ≤15s |
| Chlorwasserstoff | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Stickstoff-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%UEG/1PPM | ≤10s |
| Wasserstoff | 0-100%UEG | 0-1000PPm | 1%UEG/0,1 ppm | ≤15s |
| Chlor | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| Ammoniakgas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| Oxynitrid | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| Methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| Schwefeldioxid | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| Stickoxid | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| Stickstoffdioxid | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| Phosphin | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| Acrylnitril | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| Kohlendioxid | 0-5000PPm | 0-1%/5%/10%VOL
(Infrarot ) |
1PPM/0,01 % VOL | ≤15s |
| Fluorwasserstoff | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylol/Methylbenzol | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| Oxiran | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| Für andere Gase und Messbereiche, Bitte kontaktieren Sie uns direkt! | ||||
