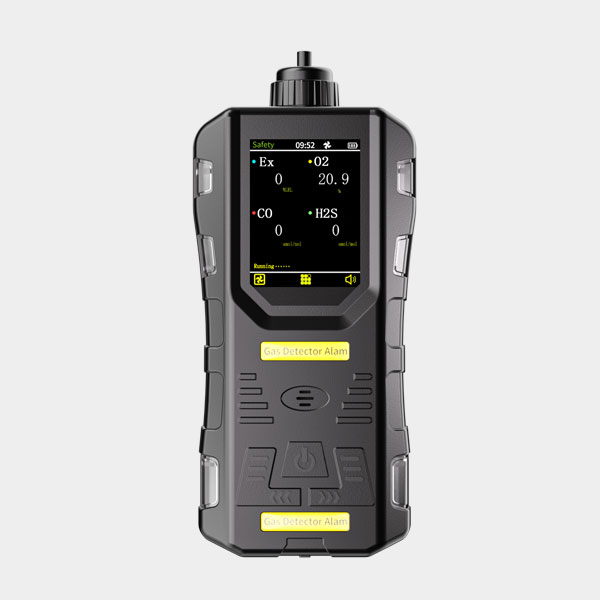

OT135 Pumpsauggasdetektoralarm

Beschreibung

OT135 pump-suction gas detector is an all-in-one gas detector that can continuously measure combustible, O2, CO, H2S and other toxic gases in ambient air. It can detect up to 5 gases at the same time. The waterproof design of the instrument is combined with a rubber shell to meet the most demanding requirements of harsh environments.

The detector uses a pump-suction method to detect gas, and the sensitive element uses a high-quality gas sensor with excellent sensitivity and excellent repeatability; the instrument uses an embedded microcomputer control, which is simple to operate, fully functional, highly reliable, and has multiple adaptive capabilities. It uses a graphic LCD display, which is intuitive and clear.

Technische Parameter

◆ Detection method: pump suction type
◆ Sensor type: catalytic, elektrochemisch, PID, Infrarot
◆ Detection gas: combustible and toxic gas
◆ Response time: ≤20s
◆ Display error: ±5% FS
◆ Indication method: CD displays real-time data and system status, LED, L sound, vibration indicates alarm, fault and undervoltage
◆ Working environment: Temperatur: -20℃~50℃; Luftfeuchtigkeit: <95%RH without condensation
◆ Working voltage: DC3.7V; 2000mAh
◆ Charging time: ≤6h
◆ Working time: ≥8h continuous (in non-alarm standby state)
◆ Explosion-proof certificate number: CNEx18.4927X
◆ Explosion-proof mark: Ex ib llB T3 Gb
◆ Protection level: IP67
◆ Dimensions: 175mm×76mm×48mm (length×width×height)
◆ Weight: about 400g
