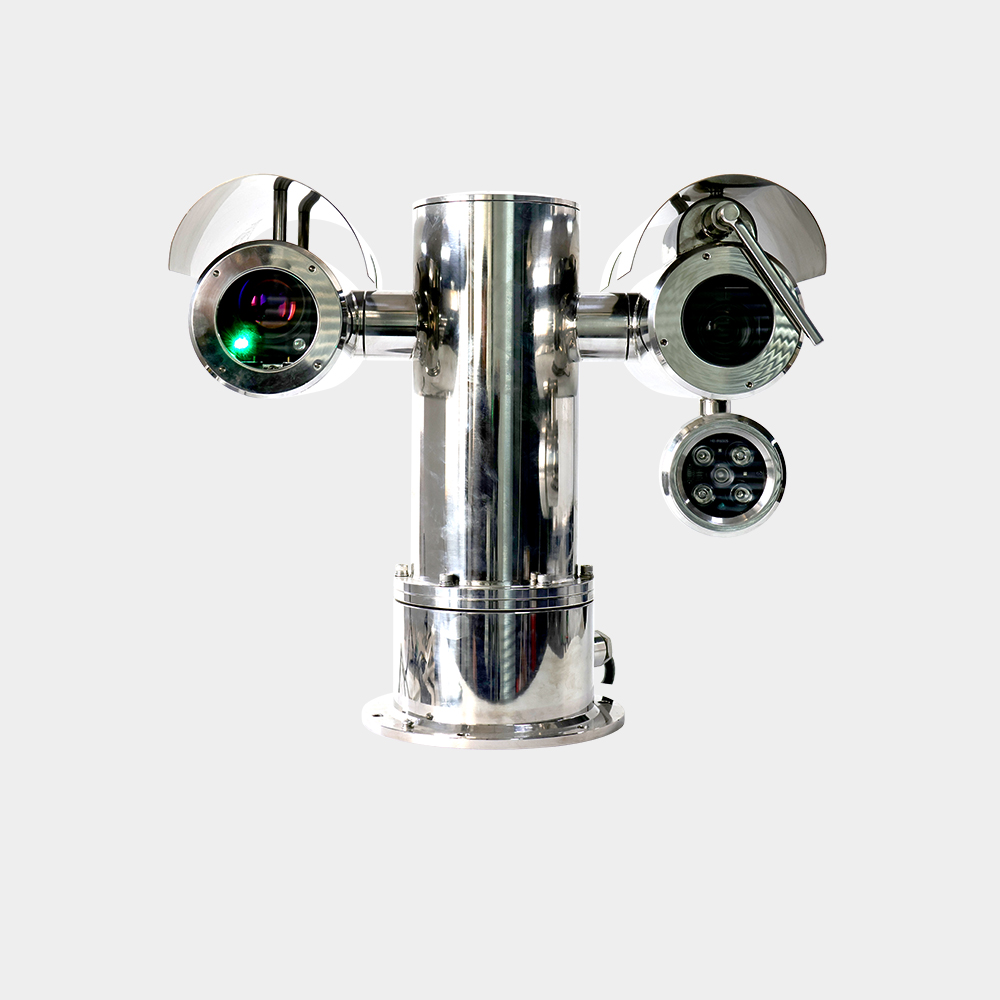

XT-G6000C Sistem de monitorizare online a gazelor laser cu scanare PTZ

Descriere

The G6000C fixed scanning laser gas telemetry system consists of a host computer and a host computer. It uses the principle of laser absorption spectroscopy technology to conduct long-distance real-time online monitoring of the methane gas concentration in the detection area of ​​the laser transceiver. It is also an instrument with functions such as signal acquisition, conversion, and transmission.

Funcții Caracteristici

◆ Active detection of three-dimensional space
◆ 360° horizontal and 180° vertical rotation scanning
◆ Synchronous camera capture
◆ On-site sound and light alarm
◆ Backstage computer monitoring

Parametrii tehnici

• Product model: G6000C
• Principiul de detectare: TDLAS
• Gaz de detectare: CH4
• Raza de detectare: (0 ~ 50000) ppm.m
• Sensitivity: 5ppm.m
• Detection effective distance: 0 ~ 100 meters
• Video camera: with video camera
• Pan-tilt scanning angle: 0 ~ 360°, -90 ~ +90°
• Timp de răspuns: 0.5 seconds
• Sursa de alimentare de lucru: AC220V
• Output interface: RS485
• Marcă rezistentă la explozie: Ex db llCT6 Gb/Ex tb IIC T80°C Db
• Nivel de protecție: IP68
• Product net weight: 30kg
• Metoda de instalare: seat installation
• Environment: Temperatură: (-25 ~ +50) ℃ Humidity: (0 ~ 90) %RH without condensation
