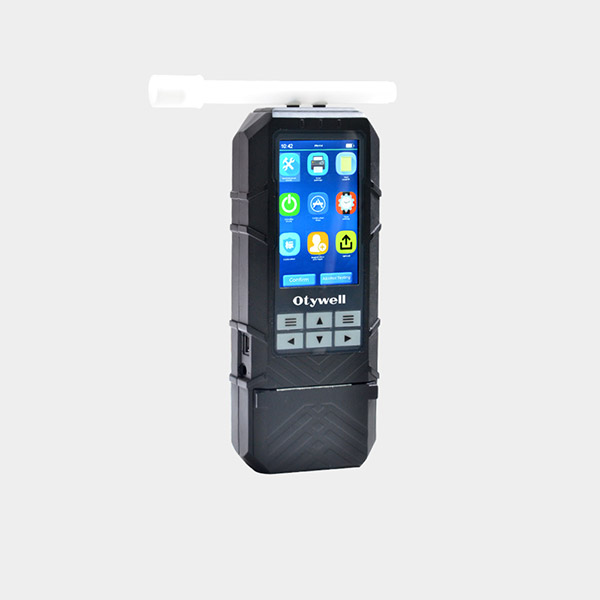

ZM800 Exhale Alcohol Content Detector

Description

ZM800 is our company’s newly developed exhaled alcohol content detector。The core part of the instrument adopts high-tech electrochemical alcohol sensor, which has the advantages of high precision, high sensitivity, high stability, strong anti-interference ability and convenient calibration.

ZM800 has a simple keyboard, menu operation and a very good human-computer interaction interface, making the operation more simple and convenient;The instrument adopts full-color LCD display screen, the operation interface is beautiful and clear, suitable for outdoor use; Built-in thermal printer, easy to use.

The disposable backflow preventer ensures the health and safety of the test subjects.

Functions Features

◆ 32 – bit microprocessor, fast speed and strong processing power.

◆ The electrochemical sensor with high precision and sensitivity ensures the stability of performance and the accuracy of measurement.

◆ Adopt high resolution true color LCD display screen, display interface is clearer.

◆ Massive automatic storage of test records, which can store 20,000 test records.

◆ Integrated thermal printer, more convenient to use.

◆ The test data is uploaded to the computer via USB interface to achieve centralized statistics management.

◆ Two levels of alarm for drinking and drunkenness. The function of blowing interrupts the alarm and refuses to test the alarm.

◆One-time backflow prevention, blocking, blowout preventer design.

◆ Provide real-time time display function.

◆ Two-level acousto-optic alarm information, screen display alarm type (voice alarm (optional)).

◆ It has undervoltage alarm and low power consumption waiting machine.



Technical Parameters

Sensor type: Electrochemical alcohol sensor

Measurement range：0～440mg/100ml（0～2.000mg/L）

Warm up time：＜20s

Drink-driving threshold：0.090 mg/L（20mg/100ml）

Drunk driving threshold：0.363 mg/L（80mg/100ml）

Storage temperature：-30℃~70℃

Working Temperature：0℃~50℃

Continuous working time: the normal detection status is more than 10 hours.

Size：L×W×H(mm)：171*75*32

Weight：About 300g

Calibration period: 6 months
