Description

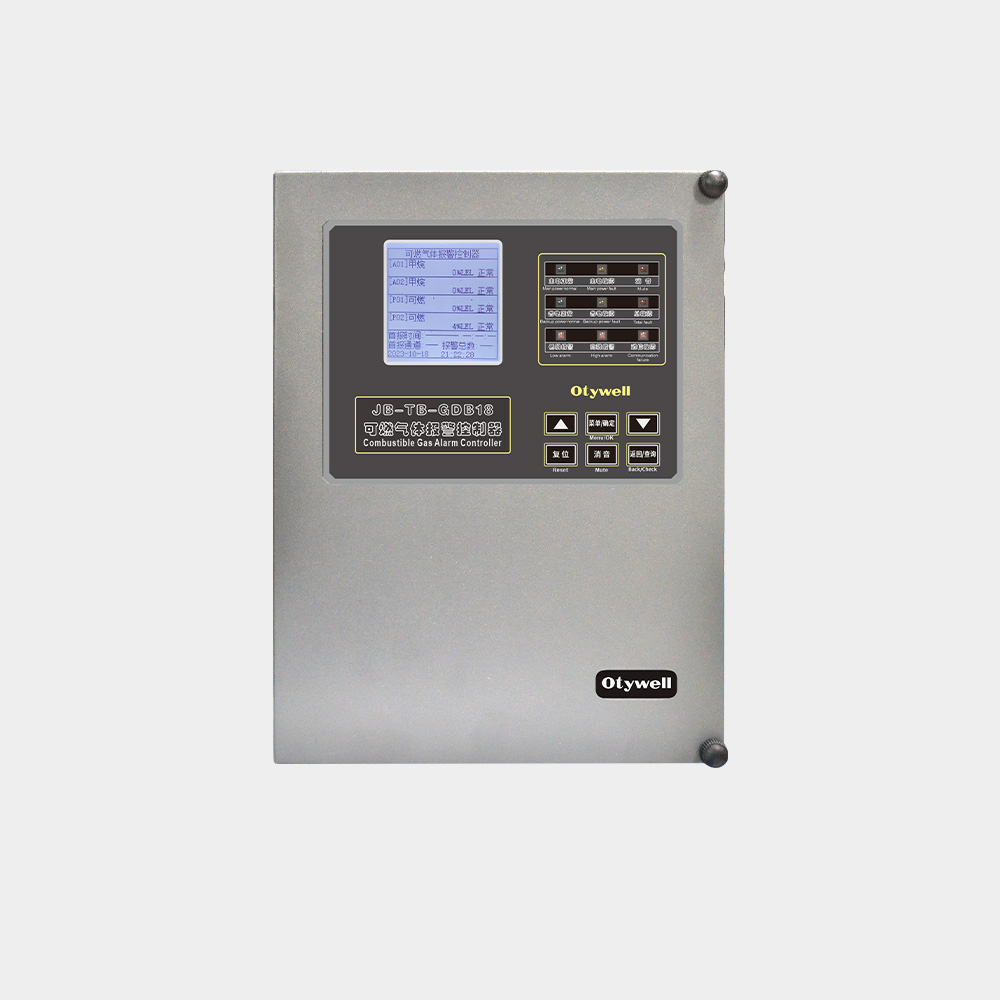

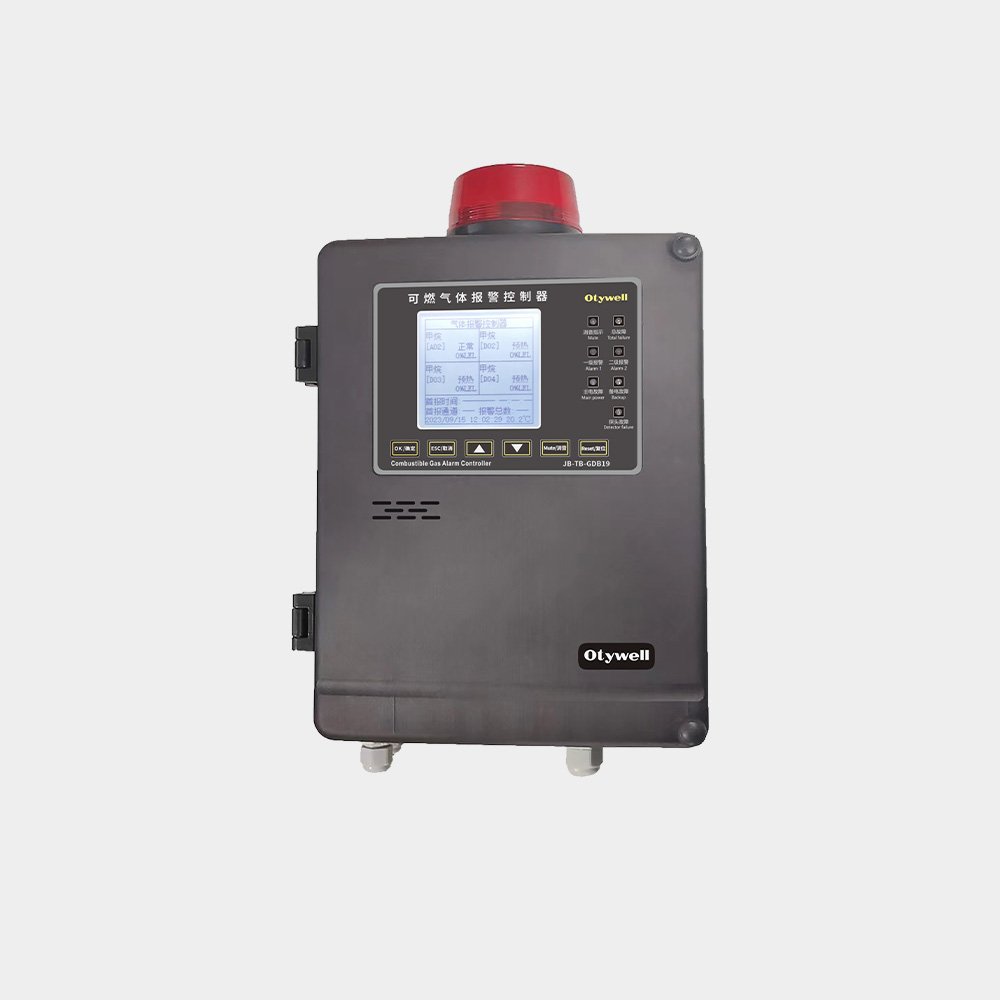

The JB-TB-GDB18 combustible gas alarm controller is a multi-point monitoring gas alarm controller developed by our company. It is used to detect the concentration of the gas to be tested in the ambient air. It can be equipped with multiple detectors for detecting different gas components and simultaneously monitor multiple points centrally. This product also has four-bus, three-wire and two-bus interfaces, which can meet the use of detectors with various wiring methods.
This system uses a microprocessor as a control unit and a high-precision sensor as a detection component, with high sensitivity and fast response speed. When the concentration of the gas to be tested is detected in the environment and reaches or exceeds the warning alarm value, the controller immediately issues an audible and visual alarm to remind us to take safety measures in time, and starts the execution control unit to control the drive exhaust or other peripheral equipment to prevent poisoning accidents, explosions and fires, thereby ensuring the safety of life and property.
Functions Features
◆ LCD Chinese display, simple and clear
◆ The product has a built-in microprocessor and rich software functions to complete transmitter signal sampling, real-time data calculation, system fault detection, power management, alarm display, alarm peripheral driver and other functions
◆ Intelligent system: convenient online zero point correction
◆ Multi-channel passive relay contact output
◆ Simple installation, fix the mounting bracket on the wall, hang the controller to complete the installation
Technical Parameters
- Installation method: Indoor wall-mounted
- Response time: ≤30s
- Indication method: LCD display, sound and light alarm
- Working environment temperature: -10℃~+50℃
- Working environment humidity: ≤93%RH
- Main power supply: AC220V+15%, 50Hz+1%
- No-load power: ≤10W
- Detector power supply voltage: DC24V±10%
- Backup power undervoltage alarm value: DC21V±1V
- Dimensions: L295 mmxW226 mmxH86 mm
- Product weight: about 3.95kg
- Cable requirements: 2RVVP4x1.5mm2 (four-bus)，≥RVVP 3×1.5mm2 (three-wire)，≥RVVP 2×1.5mm2 (two buses)
- Communication distance between detector and host: ≤1000m
- Number of channels of this machine: 4 buses: 1 channel: 3 lines: 12 channels:2 buses: 2 channels;
- Control output contacts: 2 groups of passive switches: 1 group of 24V pulse signals:1 group of AC220V pulse signals
- Output signal: RS485, (4~20)mA.
Point-type combustible gas detector with two bus signals
Note: Not all gases and range are listed, if you need more information, please contact us.
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
Note: Not all gases and range are listed, if you need more information, please contact us.
