Description

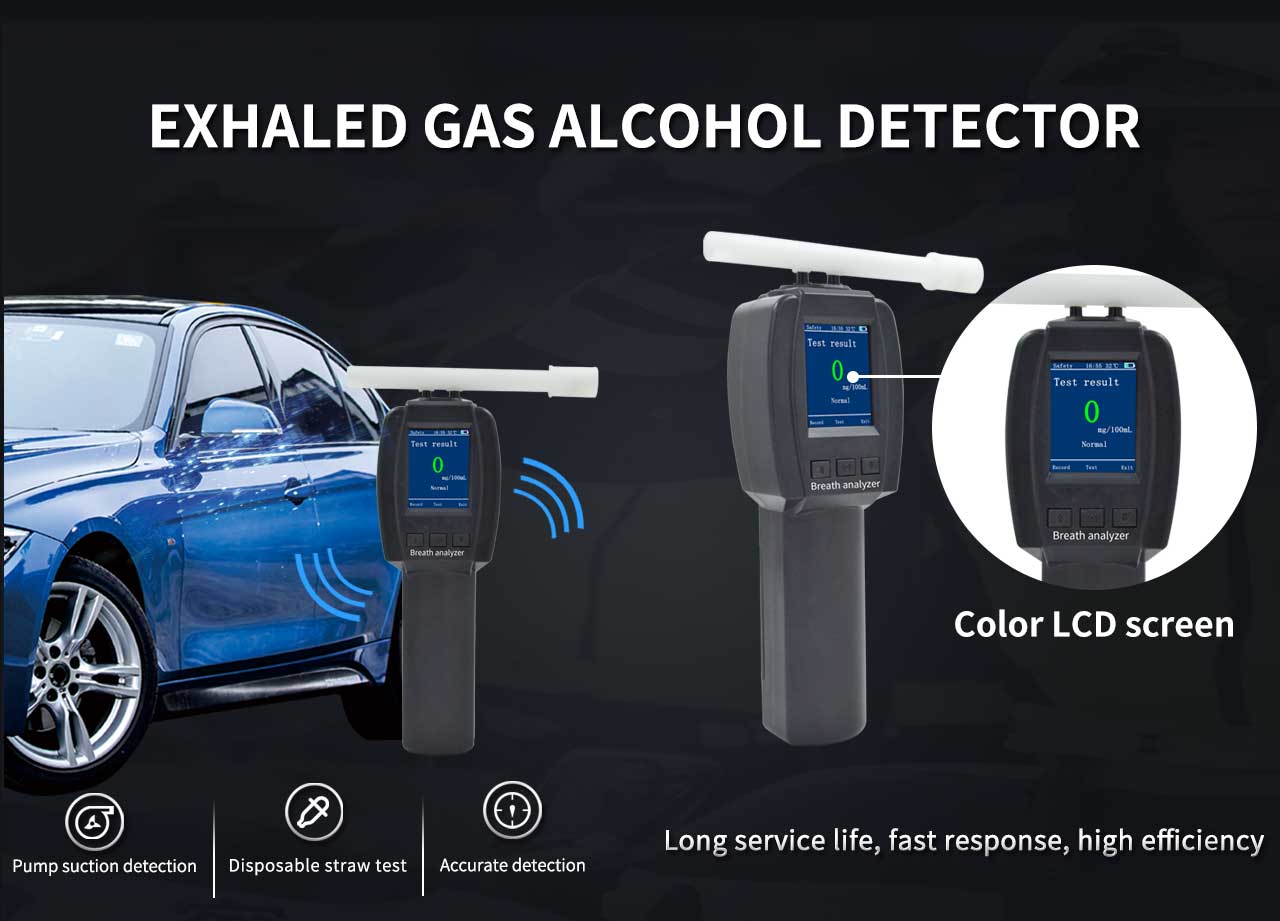

Model ZM500 is an exhaled gas alcohol detector. The core part of this instrument adopts advanced electrochemical alcohol sensor, which can quickly check the alcohol content in the exhumed gas, and has strong anti-interference ability; ZM500 has a simple keyboard, menu operation and excellent human-computer interaction interface, making the operation more simple and convenient; Color LCD makes the interface more beautiful and clear.
Functions Features
- Bar – type appearance design, beautiful image
- One-time backflow prevention, blocking, blowout preventer design
- With active testing, passive testing, continuous screening mode
- The instrument adopts advanced ultra-low power consumption microprocessing controller
- LCD color liquid crystal display, beautiful and clear
- Provide real-time time display function
- It has two alarm functions of drinking and drunkenness, blowing and interrupting the alarm and refusing to test the alarm
- Under voltage, automatic shutdown without operation
- Alarm point adjustable, test unit can switch
- The test information has large storage capacity, and can store the results no less than 100 times, which is convenient for query
Technical Parameters
Detection Method | Pump suction |
Sensor Type | Electrochemical fuel cell type alcohol sensor |
Detection Gas | Alcohol |
Measurement Range | 0 to 220 mg/100mL |
Blowing Distance | ≤5 cm |
Detection Time | Adjustable from 3 to 15 seconds |
Working Humidity | 15 to 93% RH |
Response Time | ≤2 seconds |
Indication Error | ≤±5 mg/100mL |
Indication Methods | Indicator light, sound, vibration alarm |
Baton Mode | Indicator light always on/flashing |
Operating Voltage | DC 3.7V lithium battery, 2000mAh |
Power-saving Mode | Automatic shutdown after 3 minutes in standby without baton mode |
Charging Time | ≤6 hours |
Standby Time | Not less than 8 hours (non-alarm state) |
Sensor Life | 2 years (electrochemical) |
Dimensions | 383mm x 66mm x 47mm (L x W x H) |
Weight | Approximately 300g |
